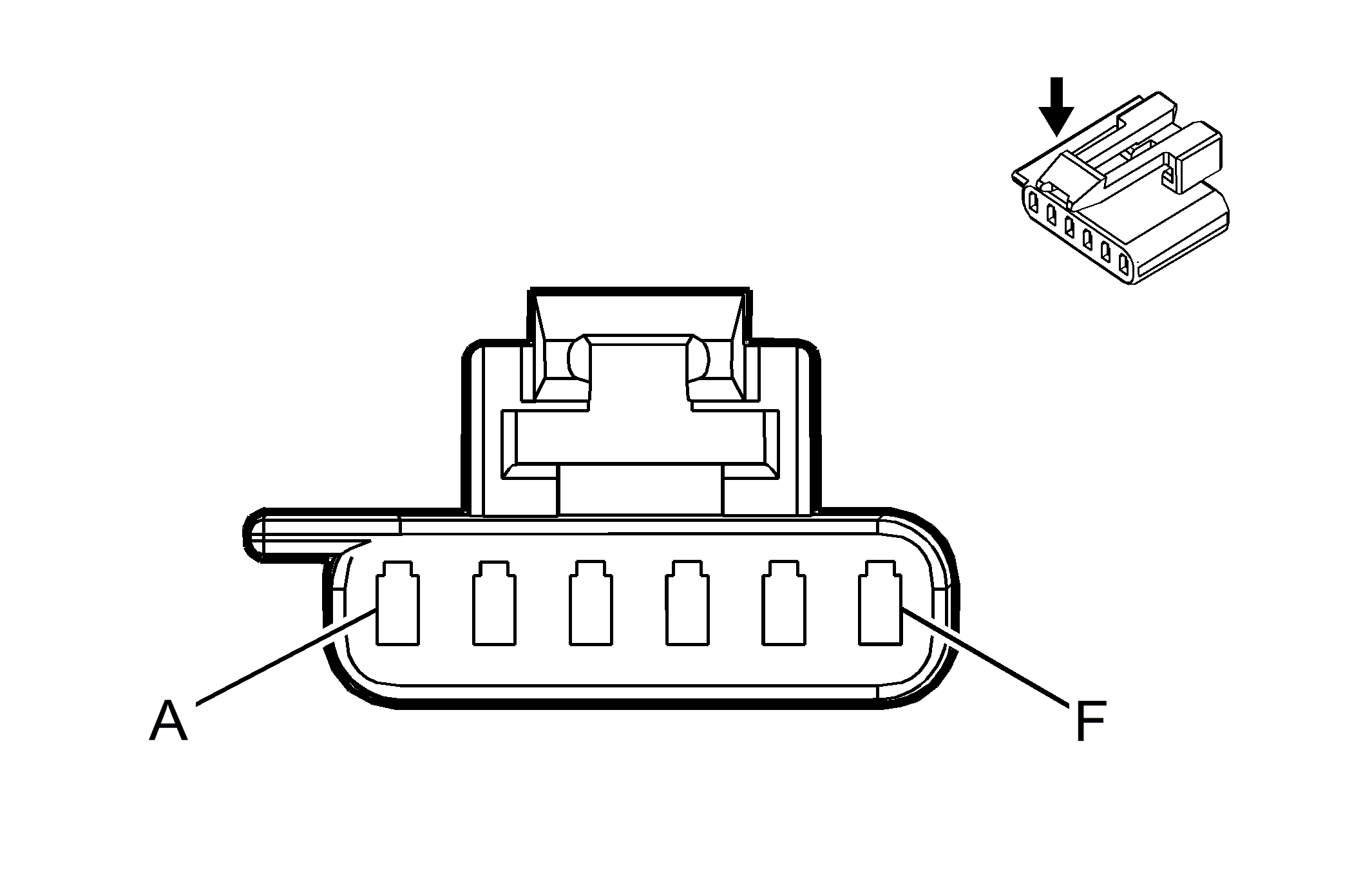

C4A Hybrid/EV Battery Section 1 X1 (HP6)
|
|
Connector Part Information
- Harness Type: High Voltage Battery Measurement Section 1
- OEM Connector: 12177012
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 150 Metri Pack Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
C4A Hybrid/EV Battery Section 1 X1 (HP6)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
BU |
CV07P |
Battery Voltage Signal (7) |
I |
- |
| B |
0.5 |
BU |
CV09P |
Battery Voltage Signal (9) |
I |
- |
| C |
0.5 |
BU |
CV05P |
Battery Voltage Signal (5) |
I |
- |
| D |
0.5 |
BU |
CV03P |
Battery Voltage Signal (3) |
I |
- |
| E |
0.5 |
BU |
CV01P |
Battery Voltage Signal (1) |
I |
- |
| F |
0.5 |
BU |
HV (+) |
Hybrid/EV Battery Positive Voltage |
I |
- |
