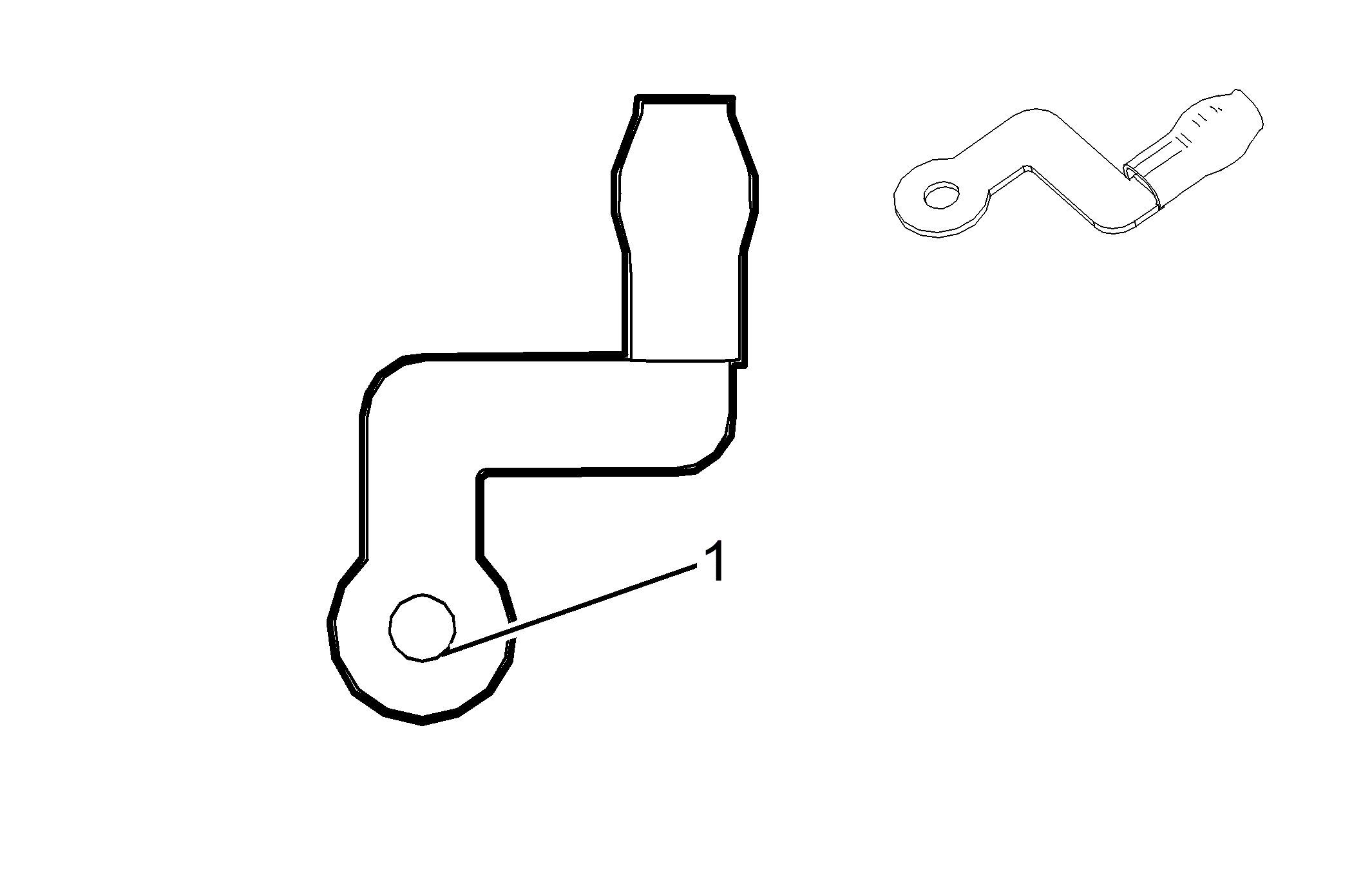

C4A Hybrid/EV Battery Section 1 (+) (HP6)
|
|
Connector Part Information
- Harness Type: High Voltage Battery Disconnect Unit
- OEM Connector: Not Available
- Service Connector: Service by Component - See Part Catalog
- Description: Ring Terminal
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
No Tool Required |
No Tool Required |
Not Available |
Not Available |
Not Available |
Not Available |
C4A Hybrid/EV Battery Section 1 (+) (HP6)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
OG |
- |
High Voltage Battery (+) |
I |
- |
