Rear Window Panel Trim Replacement (With HP6)

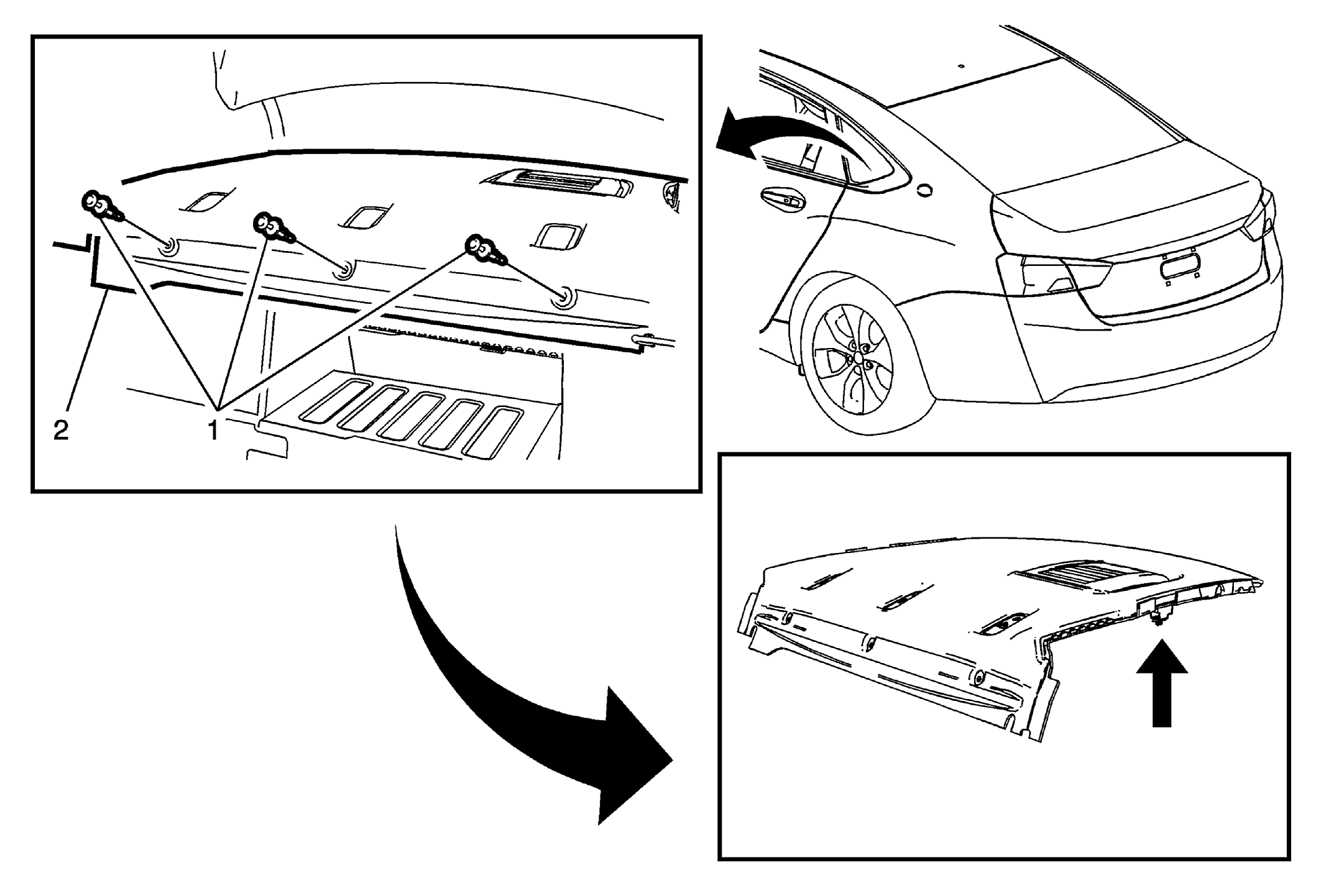

Fig 1: Rear Window Panel Trim Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Fold down the rear seat back cushions. Remove the quarter window trim finish panel. Refer to Quarter Window Trim Finish Panel Replacement .
1	Rear Window Panel Trim Fastener (Qty: 3) NOTE: There are two metal clips on the underside of the rear window panel that must be released from the shelf metal prior to removal of the panel from the vehicle. See view above for location.
2	Rear Window Panel Trim Assembly Procedure With the aid of an assistant, guide the rear window panel forward in the vehicle and upwards to clear the speaker system. When replacing the rear window panel trim assembly, transfer all necessary components. Ensure the rear window trim panel feet are seated into the rear window sheet metal drain shoe.

Callout

Component Name

Preliminary Procedures

Fold down the rear seat back cushions.
Remove the quarter window trim finish panel. Refer to Quarter Window Trim Finish Panel Replacement .

Rear Window Panel Trim Fastener (Qty: 3)

NOTE:

There are two metal clips on the underside of the rear window panel that must be released from the shelf metal prior to removal of the panel from the vehicle. See view above for location.

Rear Window Panel Trim Assembly

Procedure

With the aid of an assistant, guide the rear window panel forward in the vehicle and upwards to clear the speaker system.
When replacing the rear window panel trim assembly, transfer all necessary components.
Ensure the rear window trim panel feet are seated into the rear window sheet metal drain shoe.
