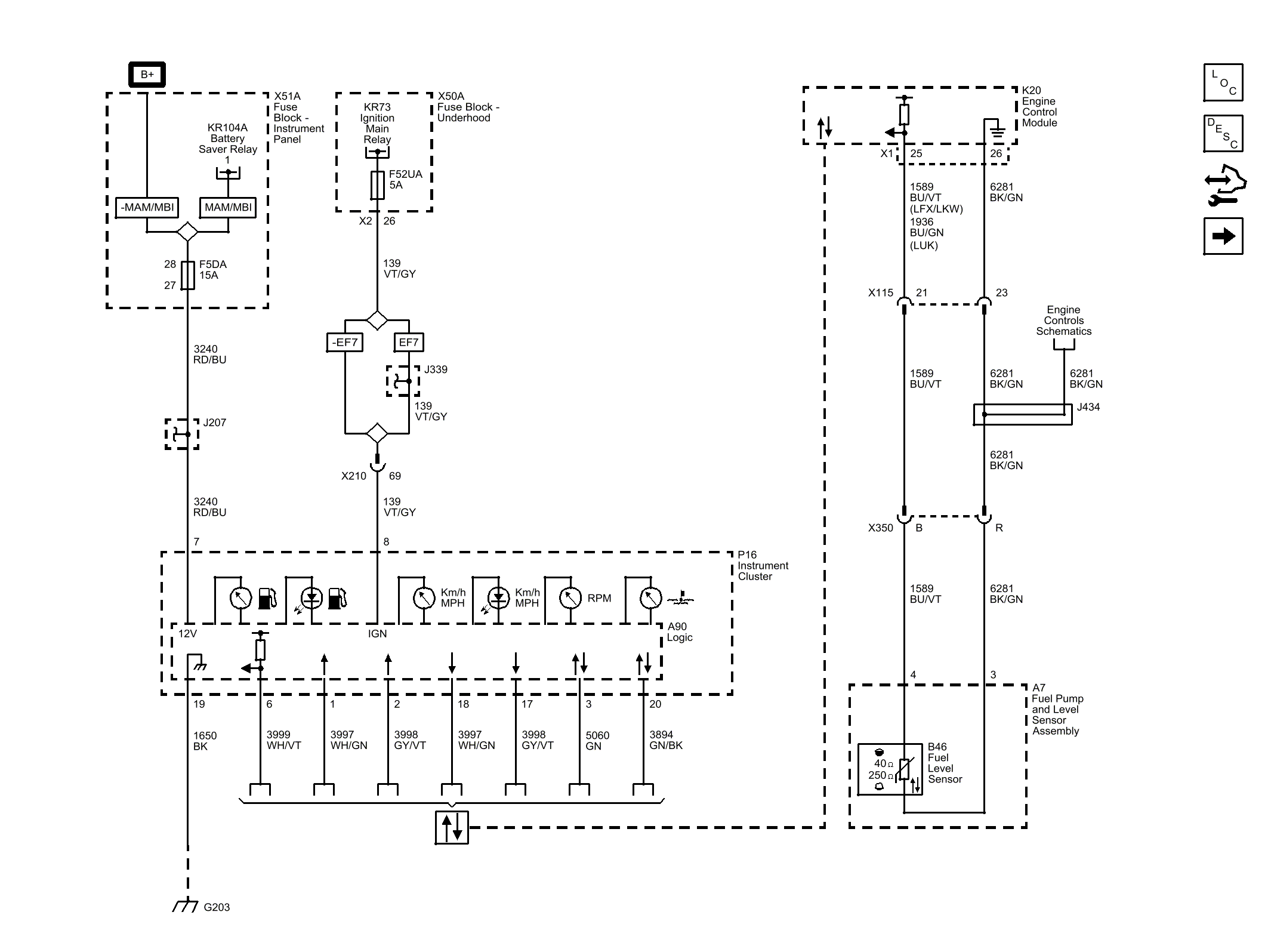

Home >> Chevrolet >> 2014 >> Impala LS >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Power, Ground, Serial Data and Gauges
