Steering Wheel Spoke Cover Replacement

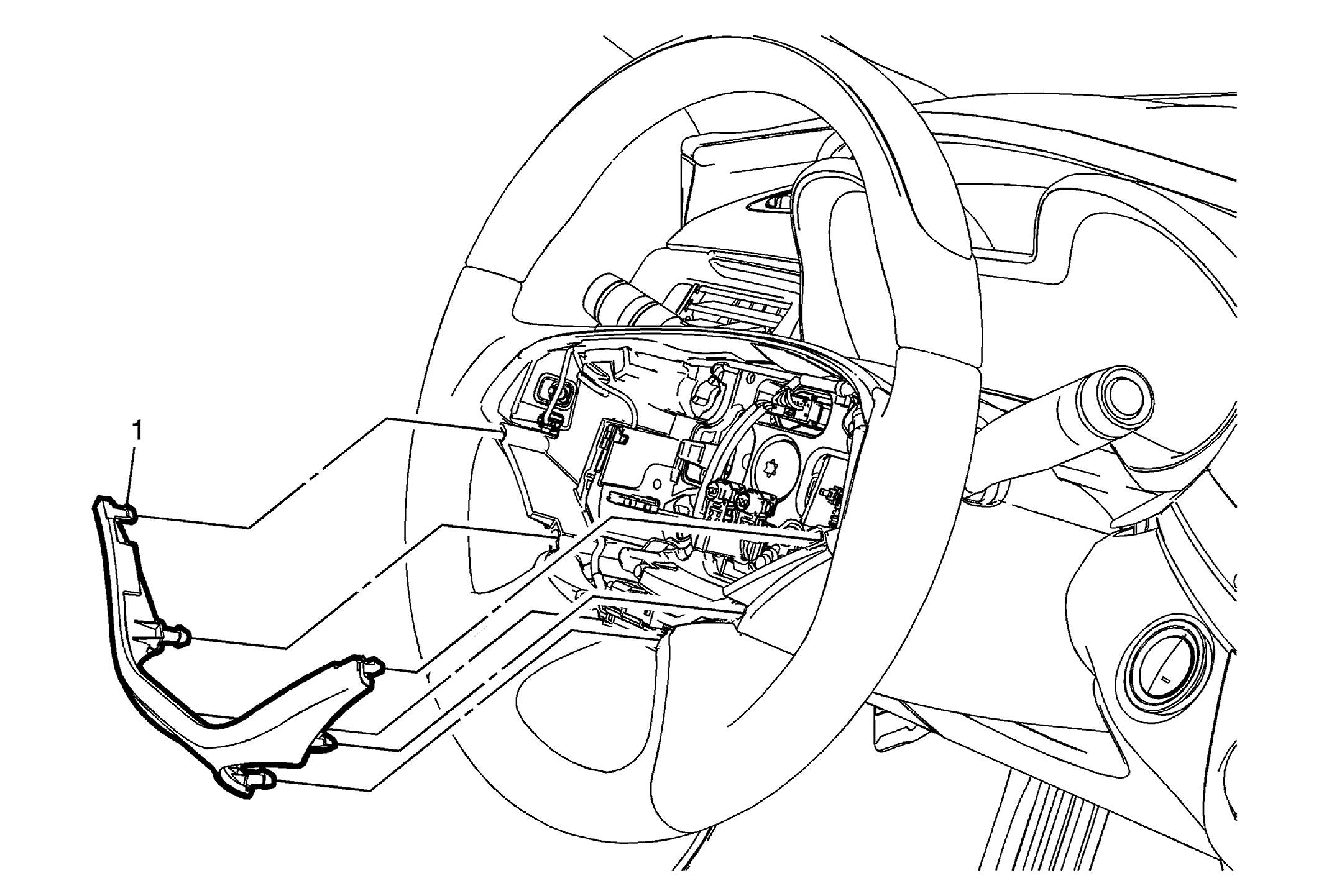

Fig 1: Steering Wheel Spoke Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement .
1	Steering Wheel Spoke Cover Procedure Use the appropriate tool to gently release the retaining tabs on the cover. Release the steering wheel heat control module harness from the steering wheel spoke cover, if equipped.

Callout

Component Name

Preliminary Procedure
Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement .

Steering Wheel Spoke Cover

Procedure

Use the appropriate tool to gently release the retaining tabs on the cover.
Release the steering wheel heat control module harness from the steering wheel spoke cover, if equipped.
