Instrument Panel Outer Air Outlet Bezel Replacement - Right Side
Instrument Panel Outer Air Outlet Bezel Replacement - Right Side

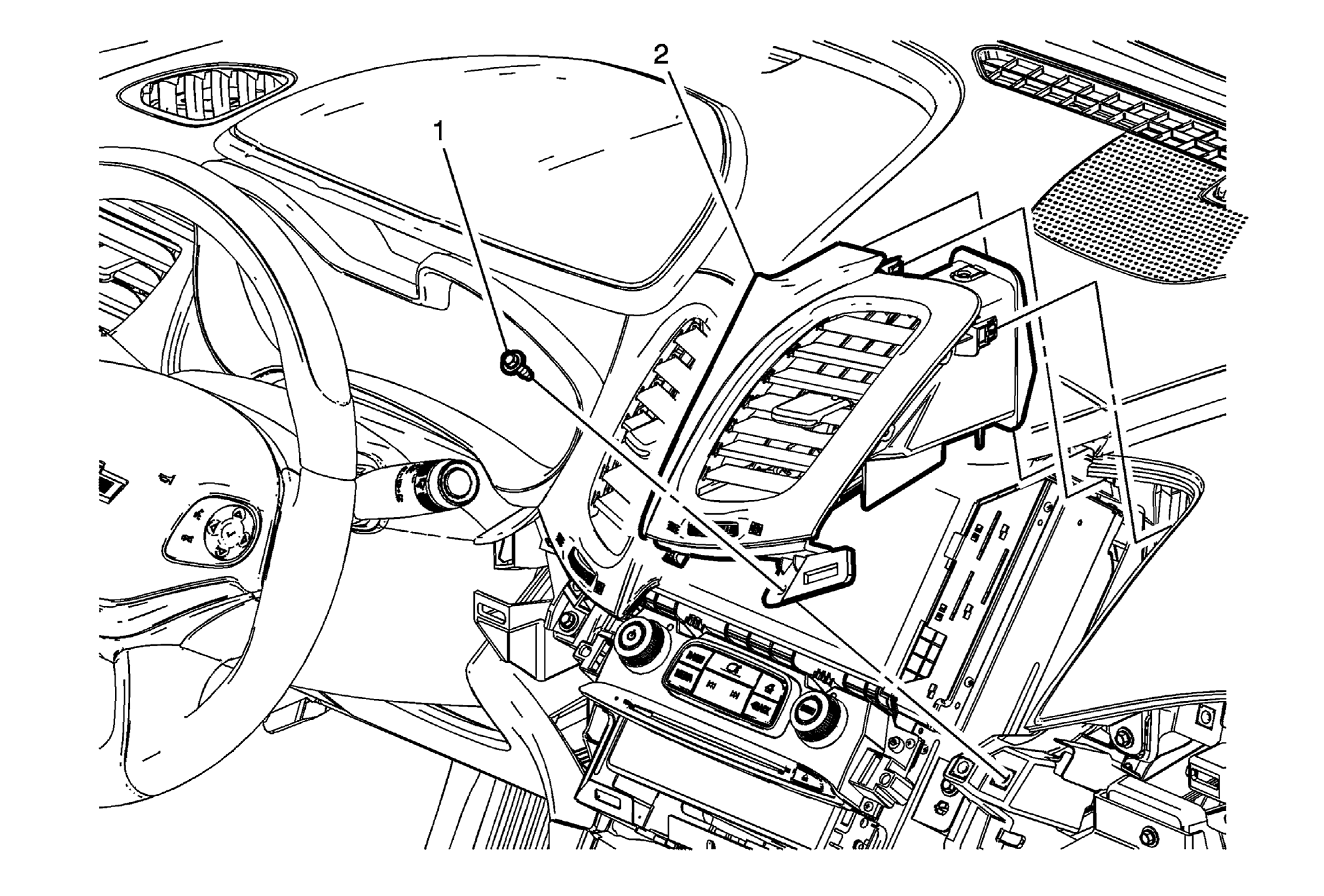

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel center trim pad. Refer to Instrument Panel Center Trim Pad Replacement . |
|
| 1 | Instrument Panel Air Outlet Duct Bolt
CAUTION:
Refer to Fastener Caution . |
| 2 | Instrument Panel Outer Air Outlet Bezel - Right Side |
