Instrument Panel Outer Air Outlet Bezel Replacement - Left Side

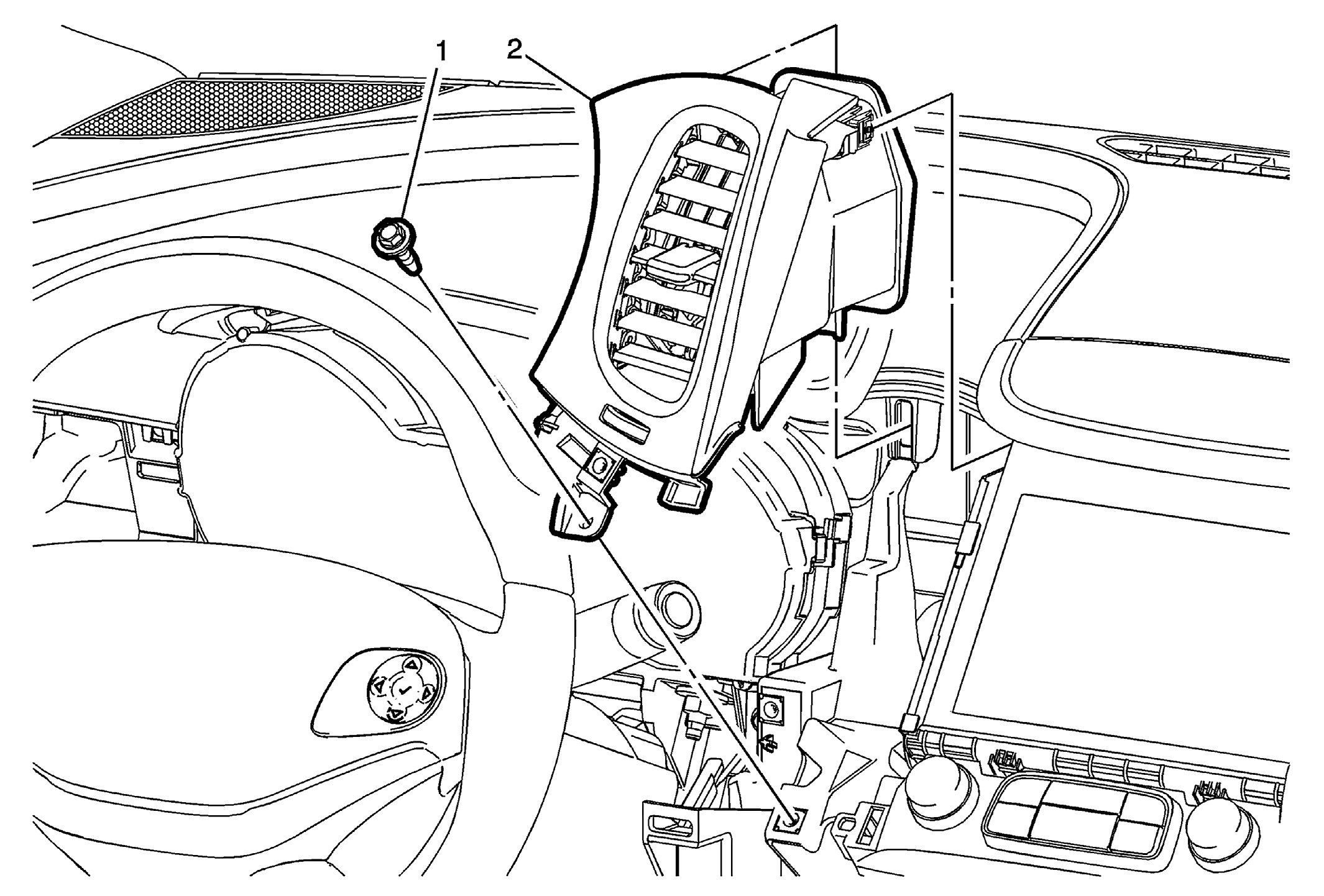

Fig 1: Instrument Panel Outer Air Outlet Bezel - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Replacement .
1	Instrument Panel Outer Air Outlet Bezel Bolt CAUTION: Refer to Fastener Caution .
2	Instrument Panel Outer Air Outlet Bezel - Left Side
