Front Floor Console Rear Air Duct Replacement

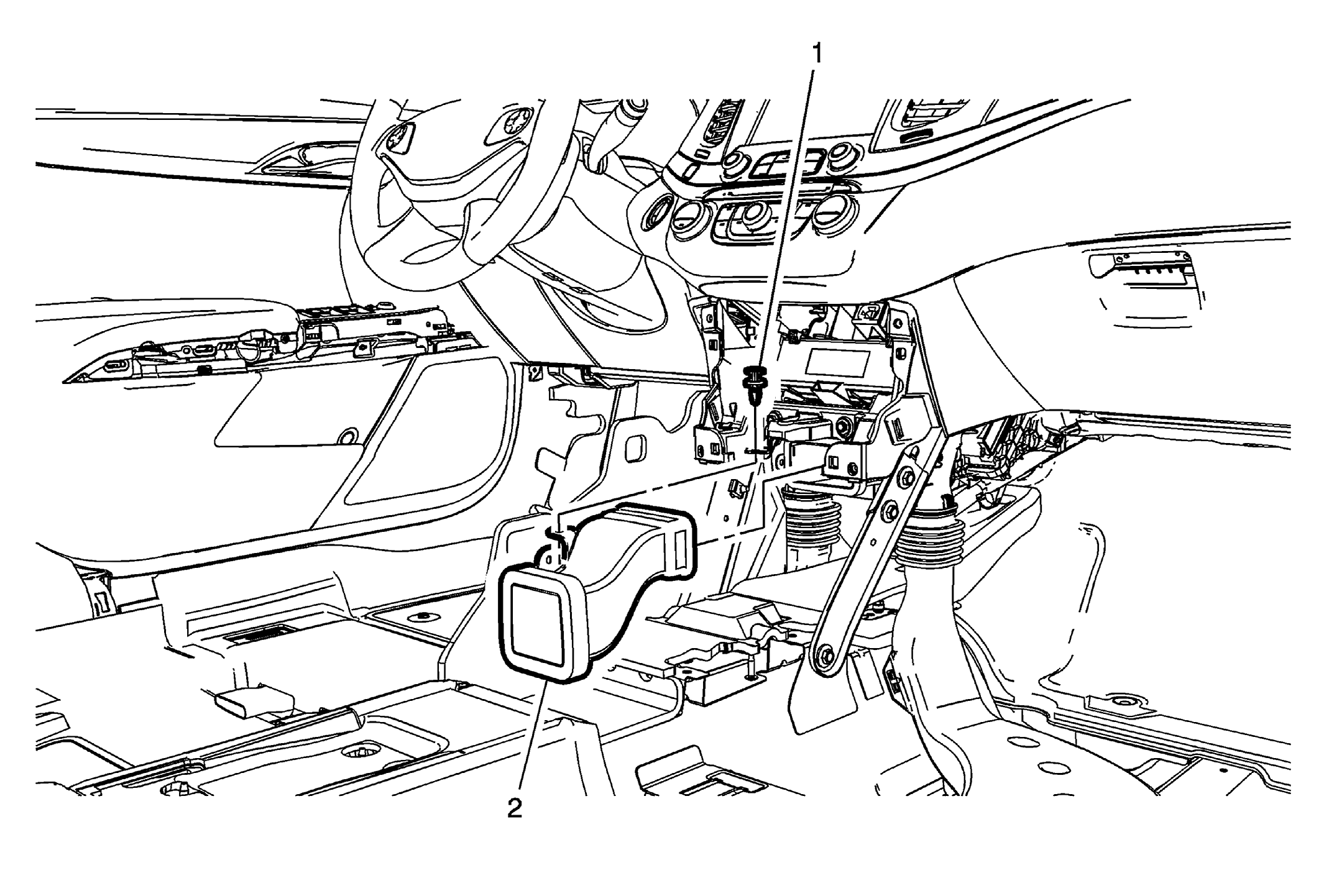

Fig 1: Front Floor Console Rear Air Duct
GM2911863Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Rear Air Duct Replacement

Callout Component Name
Preliminary Procedure
Remove the front floor console assembly. Refer to Front Floor Console Replacement .
1 Front Floor Console Rear Air Duct Fastener
2 Front Floor Console Rear Air Duct
