Radio Speaker Amplifier Replacement

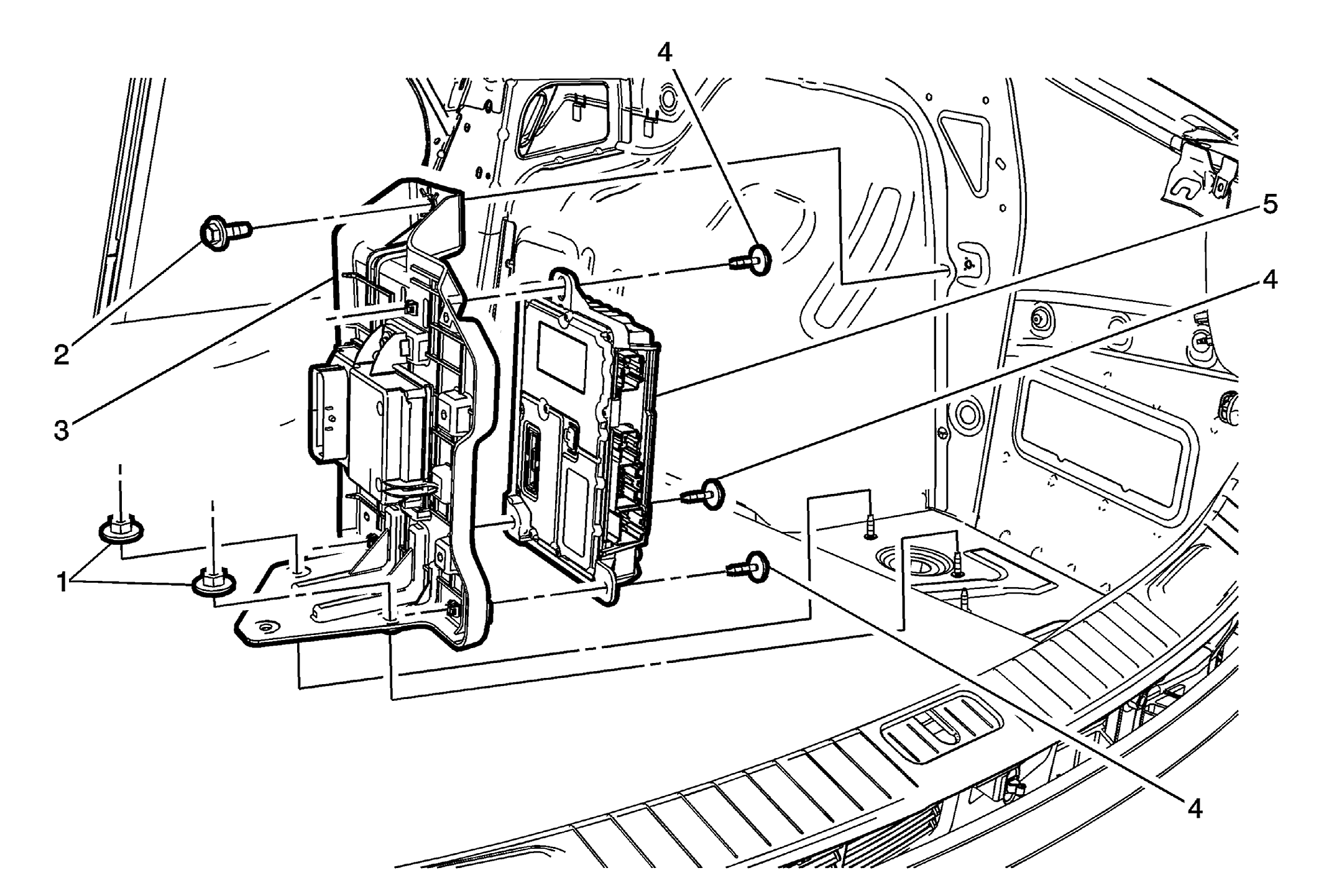

Fig 1: Radio Speaker Amplifier & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Reposition the rear compartment side trim panel enough to gain access to the module. Refer to Rear Compartment Side Trim Replacement - Right Side (Without HP6) , Rear Compartment Side Trim Replacement - Right Side (With HP6) .
1	Chassis Control Module Nuts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Chassis Control Module Bolt CAUTION: Refer to Fastener Caution .
3	Chassis Control Module Bracket
4	Radio Speaker Amplifier Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution .
5	Radio Speaker Amplifier Procedure Disconnect the electrical connectors. For programming and set up information, refer to Control Module References .
