X162 Engine Harness to Fuel Injector 2 Harness (LC8 with FHZ)
|
|
|

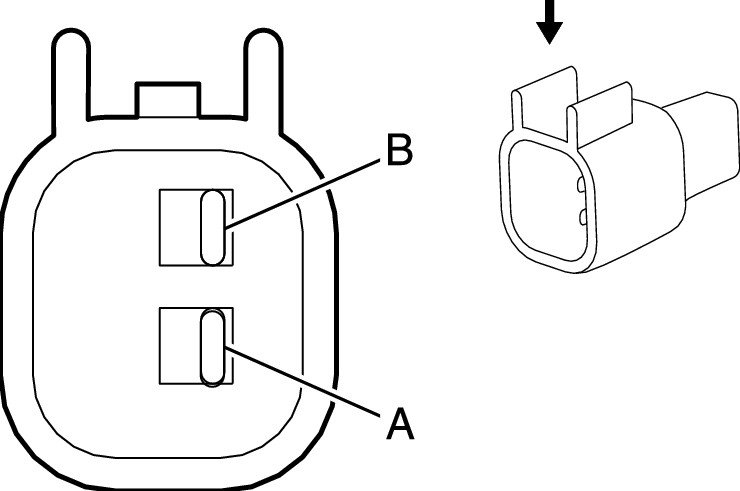

Connector Part Information
- Harness Type: Engine
- OEM Connector: 15419715
- Service Connector: 13580876
- Description: 2-Way F GT 150 Series, Sealed (GY)
|
Connector Part Information
- Harness Type:Fuel Injector 2
- OEM Connector: EV6
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M GT 150 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Pin A - 13327113 |
J-35616-2A (GY) |
J-38125-553 |
12191819 |
8 |
Pin A - 2 |
1 |
| II |
Service by Harness - See Part Catalog |
Pending |
Pending |
Not Available |
Not Available |
Not Available |
Not Available |
X162 Engine Harness to Fuel Injector 2 Harness (LC8 with FHZ)
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| A |
0.8 |
PK |
1239 |
I |
- |
Ignition Voltage |
A |
RD |
RD |
- |
II |
- |
| B |
0.5 |
L-GN/BK |
1745 |
I |
- |
Fuel Injector 2 Control |
B |
GY |
GY |
- |
II |
- |
