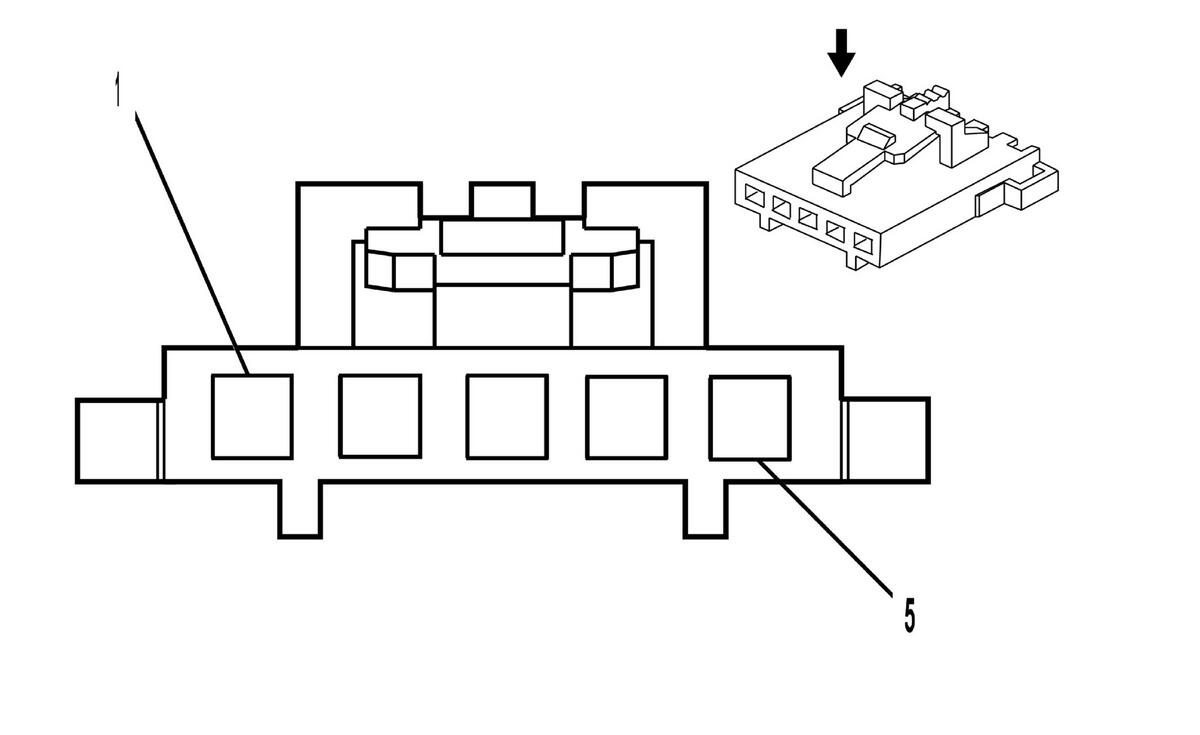

K64 Content Theft Deterrent Control Module
|
|
Connector Part Information
- Harness Type: Steering Column
- OEM Connector: 15383337
- Service Connector: 88988353
- Description: 5-Way F SL Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Pending |
J-35616-64B (L-BU) |
J-38125-213 |
16-02-1110 |
20 |
H |
H |
K64 Content Theft Deterrent Control Module
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD/WH |
540 |
Battery Positive Voltage |
I |
- |
| 2 |
0.35 |
BN |
4 |
Ignition Voltage |
I |
- |
| 3 |
0.35 |
BK/WH |
351 |
Ground |
I |
- |
| 4 |
0.35 |
D-GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
