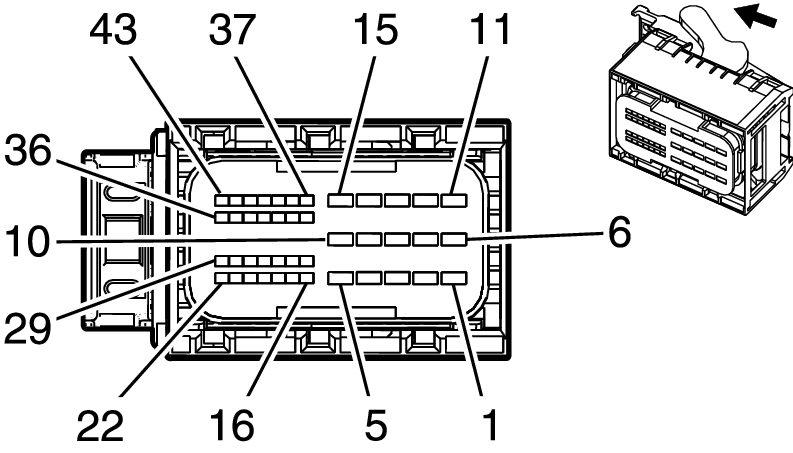

K34 Glow Plug Control Module X2 (LGH)

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I				22124614190	Pending	Pending	Pending

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	2	GY/WH	3675	DEF Pump Heater Control	I	-
2	2	WH/YE	1584	Glow Plug 4 Control	I	-
3	2	YE	1583	Glow Plug 3 Control	I	-
4	2	PU/WH	1582	Glow Plug 2 Control	I	-
5	2	PU	1581	Glow Plug 1 Control	I	-
6	1	PU/WH	3199	DEF Pressure Line Heater Control	I	-
7	1	TN	3673	Nox Sensor 1 Ground	I	-
8	2	BK/WH	351	Ground	I	-
9	1	TN/BK	3671	Nox Sensor 2 Ground	I	-
10	2	BK	550	Ground	I	-
11	2	OG/WH	3677	DEF Resevoir Heater Control	I	-
12	2	D-GN	1585	Glow Plug 5 Control	I	-
13	2	D-GN/WH	1586	Glow Plug 6 Control	I	-
14	2	PK	1587	Glow Plug 7 Control	I	-
15	2	PK/WH	1588	Glow Plug 8 Control	I	-
16	0.5	D-GN	2924	Intake Air Heater Current Feedback Signal	I	-
17	0.5	PU	2922	Intake Air Heater Digital Response Signal	I	-
18	0.5	TN	2501	High Speed GMLAN Serial Data (-) (1)	I	-
19	0.5	TN	2501	High Speed GMLAN Serial Data (-) (1)	I	-
20-22	-	-	-	Not Occupied	-	-
23	0.5	TN	2925	Intake Air Heater Voltage Feedback Signal	I	-
24	0.5	BK	2923	Intake Air Heater Temperature Signal	I	-
25	0.5	TN/BK	2500	High Speed GMLAN Serial Data (+) (1)	I	-
26	0.5	TN/BK	2500	High Speed GMLAN Serial Data (+) (1)	I	-
27-29	-	-	-	Not Occupied	-	-
30	0.5	OG/BK	2921	Intake Air Heater Switch On/Off Signal	I	-
31	0.5	YE	2920	Intake Air Heater Heart Beat Signal	I	-
32	-	-	-	Not Occupied	-	-
33	0.5	PK	2139	Run/Crank Ignition 1 Voltage	I	-
34-36	-	-	-	Not Occupied	-	-
37	0.5	PU	3674	Nox Sensor 1 Supply Voltage	I	-
38	0.5	GY	3672	Nox Sensor 2 Supply Voltage	I	-
39	-	-	-	Not Occupied	-	-
40	0.5	D-BU	5985	Accessory Wakeup Serial Data	I	-
41-43	-	-	-	Not Occupied	-	-
