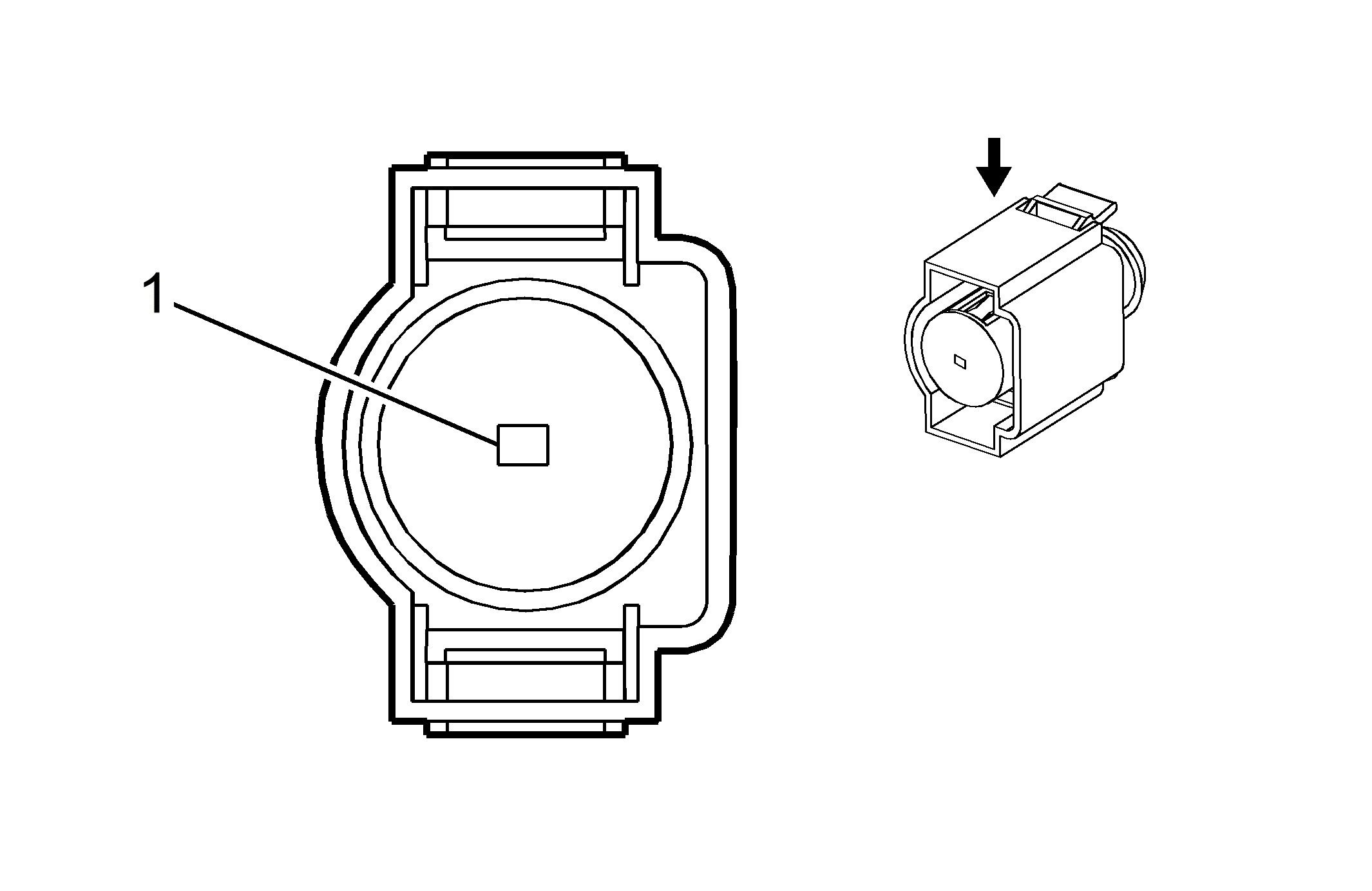

K34 Glow Plug Control Module X1 (LGH)
|
|
Connector Part Information
- Harness: Battery Positive
- OEM: 10852369
- Service: Service by Harness - See Part Catalog
- Description: 1-Way F 8.0 Series Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
|
|
|
Service by Connector Assembly |
Service by Connector Assembly |
Not Available |
Not Available |
K34 Glow Plug Control Module X1 (LGH)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
8 |
RD |
1 |
Battery Positive Voltage |
I |
- |
