Underhood Lamp Replacement

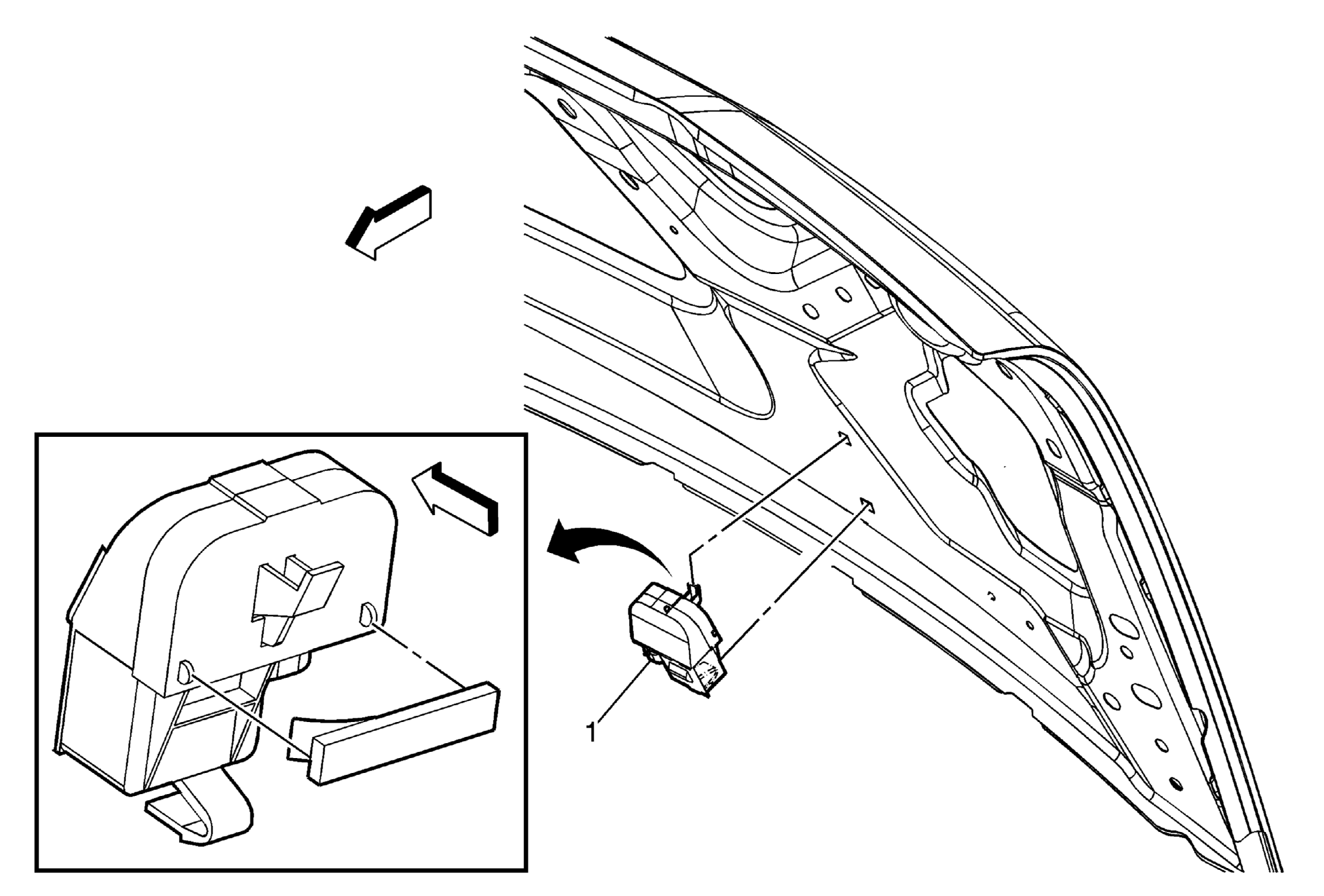

Fig 1: Underhood Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open and support the hood. Disconnect the electrical harness connector to the underhood lamp assembly. Release the locking tab securing the underhood lamp to the inner hood panel. Pull the lamp downward in order to remove.
1	Underhood Lamp Assembly TIP: Ensure the foam tape strip is attached to the lamp as shown, prior to installation.

Callout

Component Name

Preliminary Procedure

Underhood Lamp Assembly
TIP: Ensure the foam tape strip is attached to the lamp as shown, prior to installation.
