Intermediate Side Door Weatherstrip Replacement

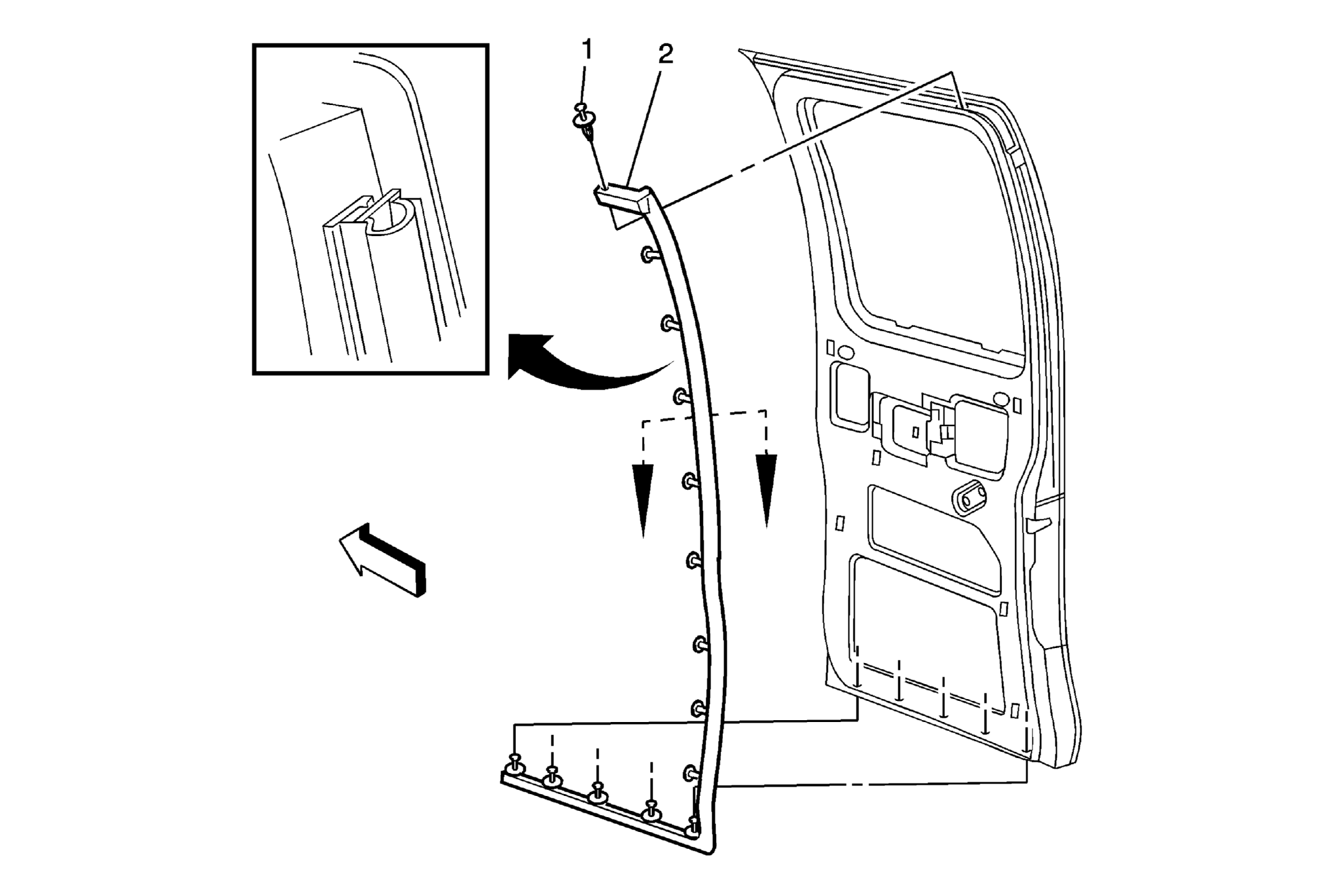

Fig 1: Identifying Intermediate Side Door Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Intermediate Rear Side Door Weatherstrip Retainers (Qty: 15) Procedure Remove the weatherstrip from the top of the door. Use 3M Release Agent or the equivalent. Pull the weatherstrip rearward releasing to the retainer from the side of the door. Remove the weatherstrip and the retainers from the bottom of the door. Clean the door of all of the old adhesive and retainers
2	Intermediate Rear Side Door Weatherstrip Procedure Install the door weatherstrip to the top of the door. If you are reusing the old weatherstrip, use GM Weatherstrip Adhesive GM P/N 12345097 (Canadian P/N 10953479) or the equivalent, in order to retain the top of the weatherstrip to the door. Press the retainers in the door weatherstrip into the holes in the door.

Callout

Component Name

Intermediate Rear Side Door Weatherstrip Retainers (Qty: 15)

Procedure

Remove the weatherstrip from the top of the door. Use 3M Release Agent or the equivalent.
Pull the weatherstrip rearward releasing to the retainer from the side of the door.
Remove the weatherstrip and the retainers from the bottom of the door.
Clean the door of all of the old adhesive and retainers

Intermediate Rear Side Door Weatherstrip

Procedure

Install the door weatherstrip to the top of the door.
If you are reusing the old weatherstrip, use GM Weatherstrip Adhesive GM P/N 12345097 (Canadian P/N 10953479) or the equivalent, in order to retain the top of the weatherstrip to the door.
Press the retainers in the door weatherstrip into the holes in the door.
