Fuel Injector Replacement (LPG 3 Tank)

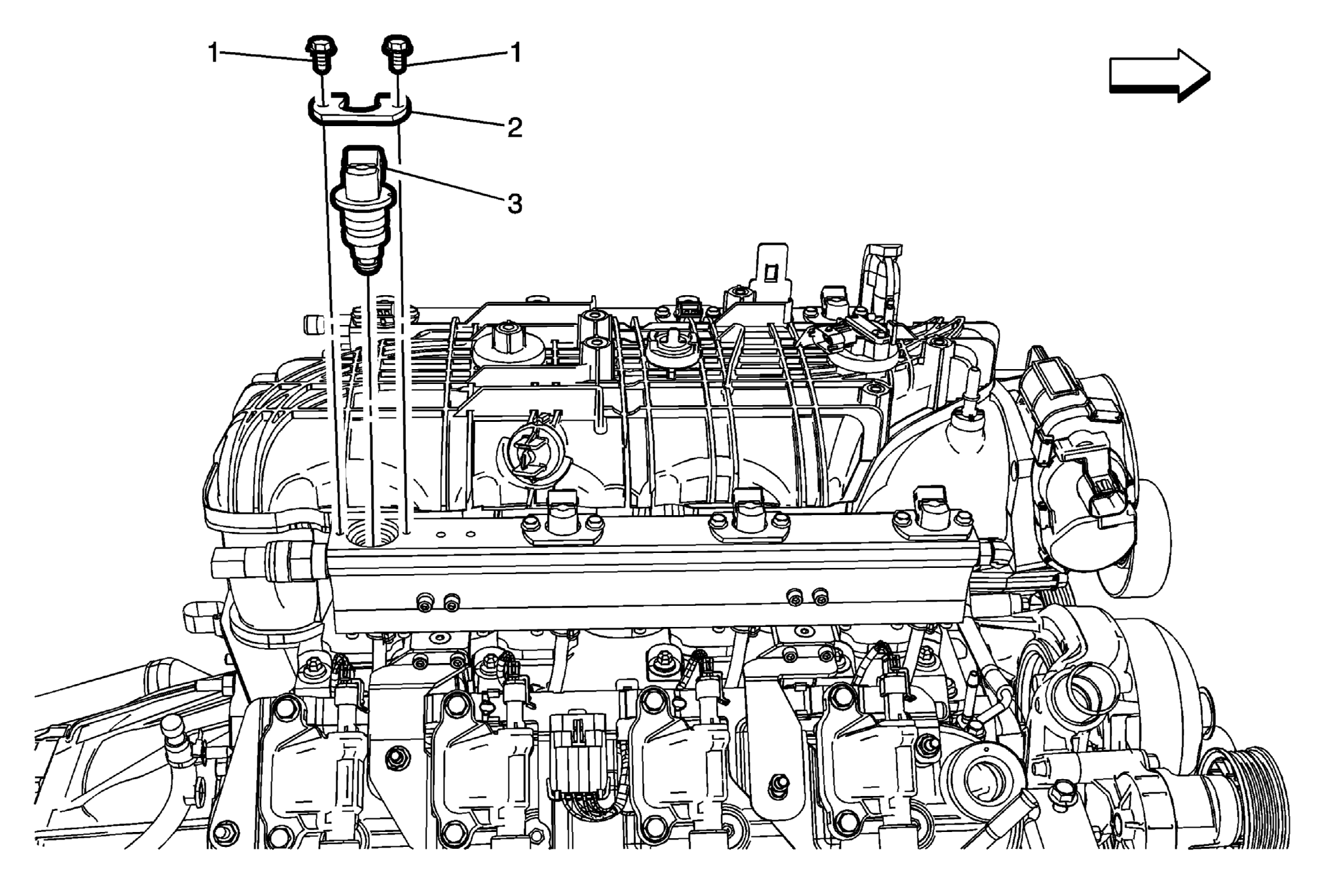

Fig 1: Fuel Injector (LPG 3 Tank)
GM2771422Courtesy of GENERAL MOTORS COMPANY
Fuel Injector Replacement (LPG 3 Tank)

Callout Component Name

Preliminary Procedure

  1. Drain the fuel lines. Refer to LPG Fuel Line Draining , LPG Fuel Line Draining (3 Tank Feed and Return) .
  2. Remove the engine cover. Refer to Engine Cover Replacement .
  3. Disconnect the electrical connector.
1 Fuel Injector Bolts (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Fuel Injector Retainer
3 Fuel injector
