Oil Filler Tube Replacement

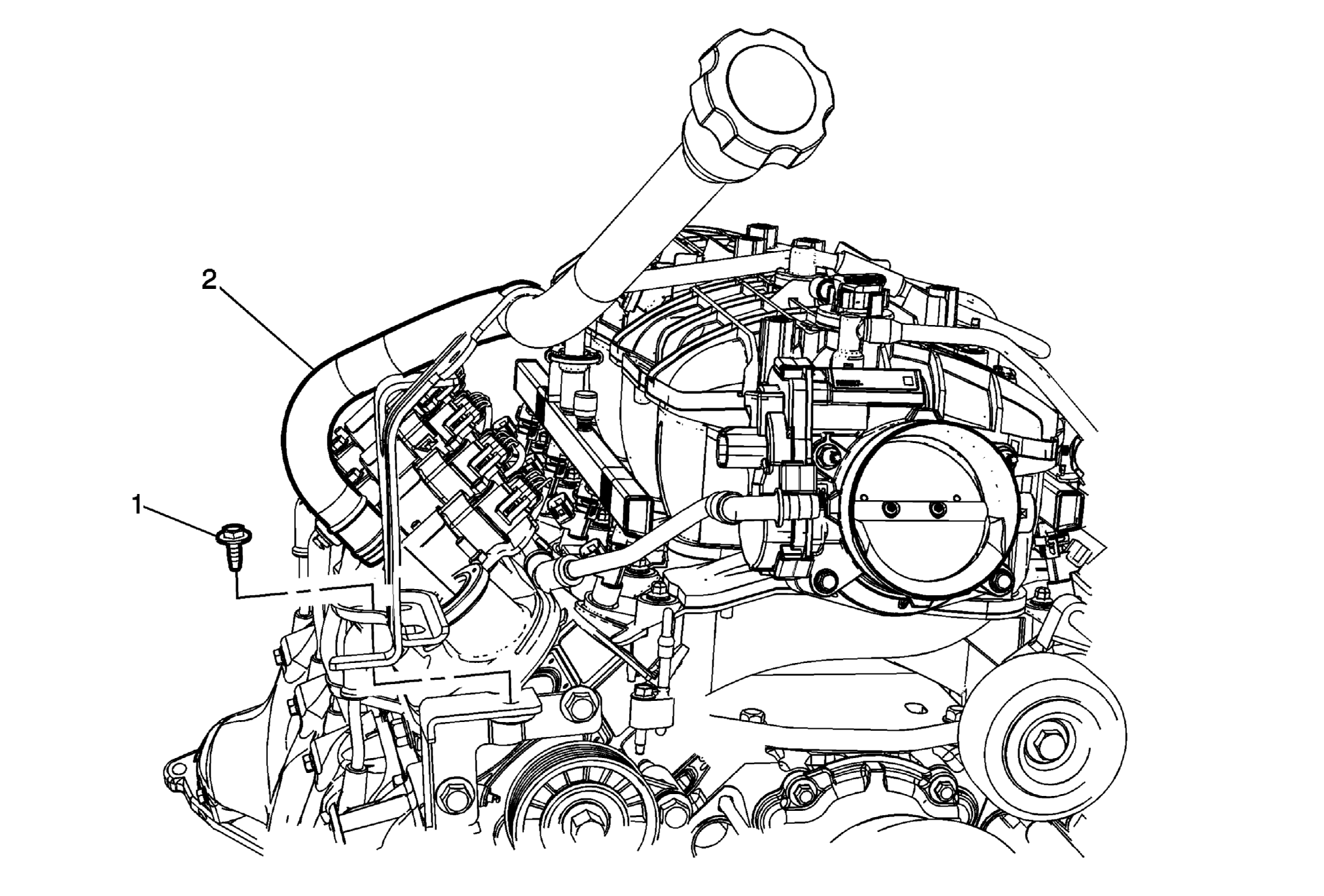

Fig 1: Oil Filler Tube
GM2421832Courtesy of GENERAL MOTORS COMPANY
Oil Filler Tube Replacement

Callout Component Name
Preliminary Procedure
Reposition the oil indicator tube to the side to clear access.
1 Oil Filler Tube Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (18 lb ft)
2 Oil Filler Tube

Procedure

  1. Ensure to replace the oil filler tube gasket whenever the tube is removed.
  2. Disconnect electrical connectors as needed.
  3. Transfer components as necessary.
