Catalytic Converter Replacement (LC8, L96)

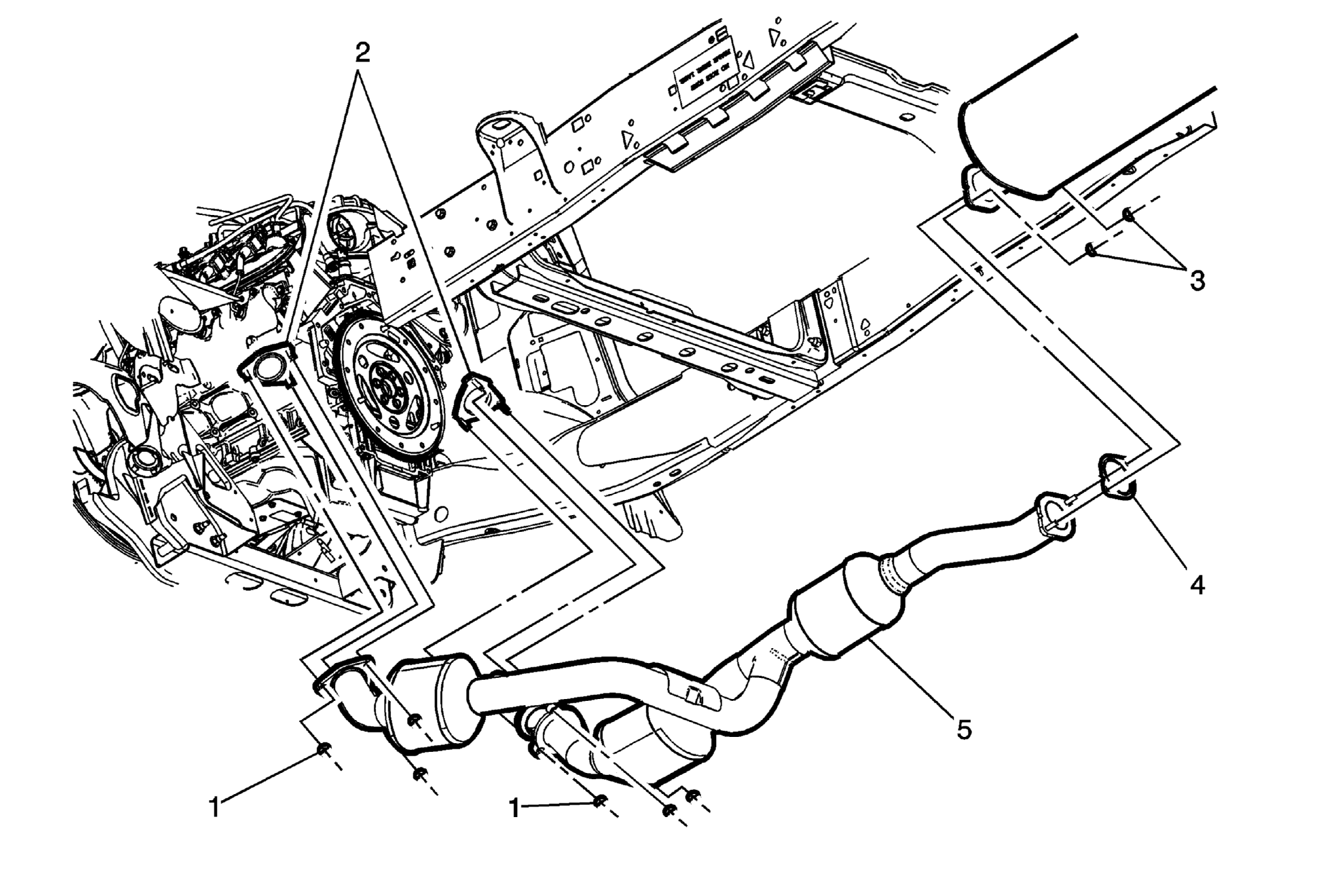

Fig 1: Catalytic Converter (LC8, L96)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . WARNING: Refer to Eye Protection Warning . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Catalytic Converter to Exhaust Manifold Fasteners (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Exhaust Manifold Seals NOTE: Replace with NEW seals.
3	Exhaust Muffler Fasteners (Qty: 2) Tighten 45 N.m (33 lb ft)
4	Exhaust Muffler Gasket NOTE: Replace with NEW gasket.
5	Catalytic Converter
