Headlamp Capsule Replacement (Minus V22)

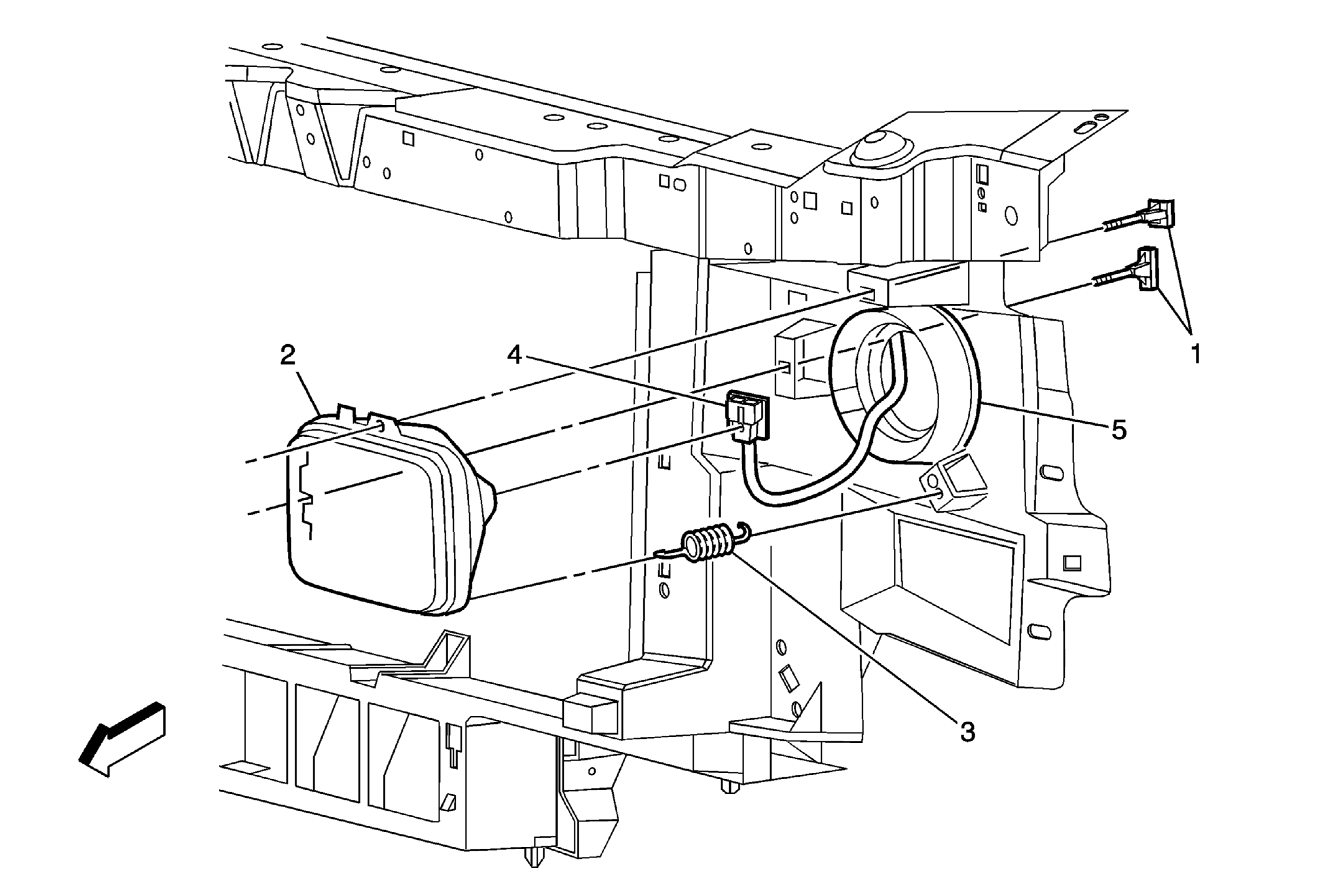

Fig 1: View Of Headlamp Capsule (Minus V22)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the base front radiator grille assembly. Refer to Grille Replacement (Base) , Grille Replacement (Uplevel) . Aim the headlamps after the headlamp capsule has been replaced. Refer to Headlamp Aiming .
1	Headlamp Adjuster Screw (Qty: 2) TIP: Loosen the screws to assist with the removal of the headlamp capsule from the radiator support.
2	Headlamp Capsule TIP: Hold the headlamp capsule when removing the support spring.
3	Headlamp Capsule Support Spring
4	Headlamp Capsule Electrical Harness Connector
5	Radiator Support TIP: Lubricate the perimeter of the headlamp prior to installing the headlamp into the radiator support pocket.
