Power, Ground and Driver Information Center (DIC) Switch

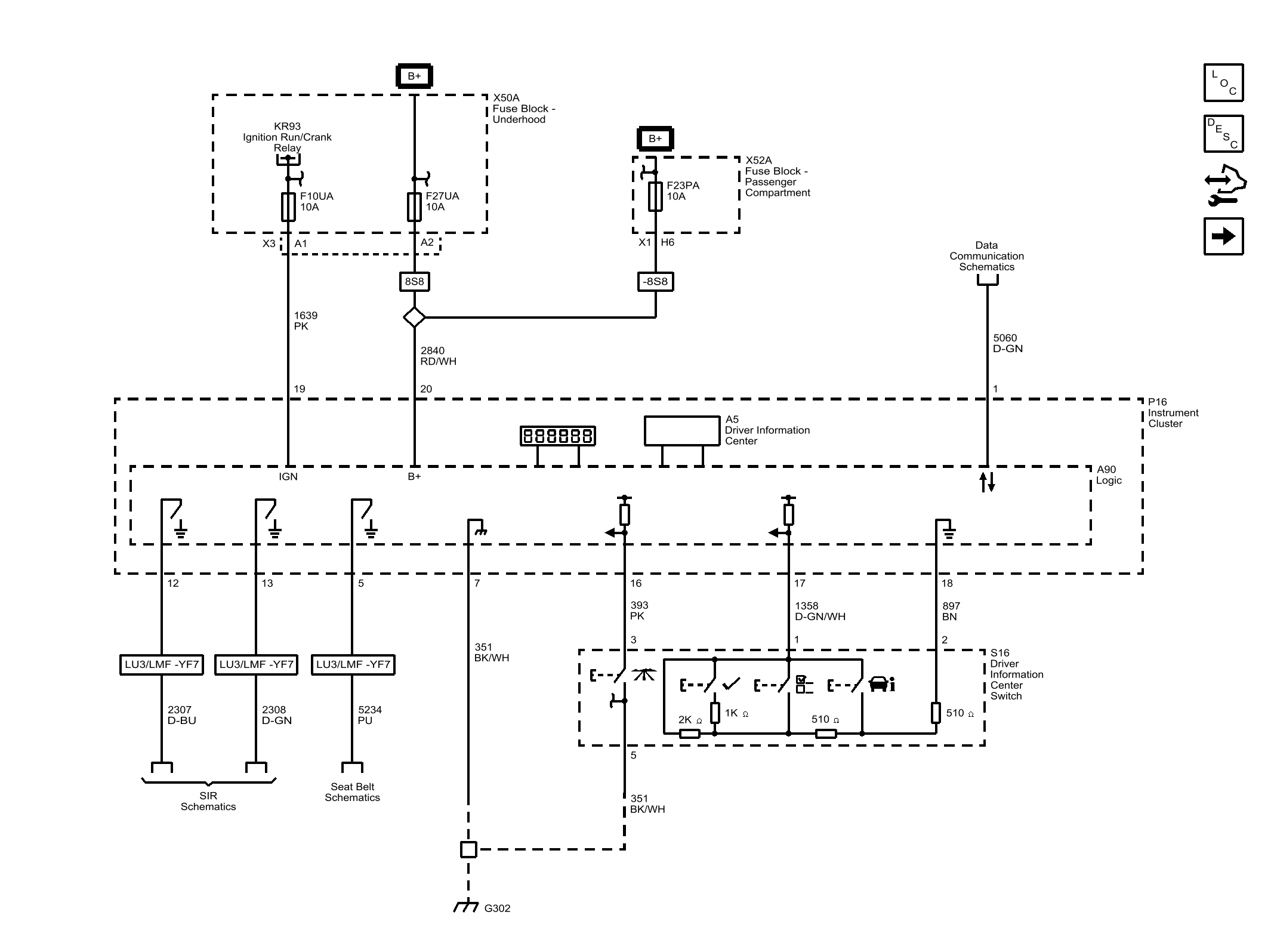

Fig 1: Power, Ground and Driver Information Center (DIC) Switch Wiring Schematics

GM3395152

Courtesy of GENERAL MOTORS COMPANY
