Removal Procedure

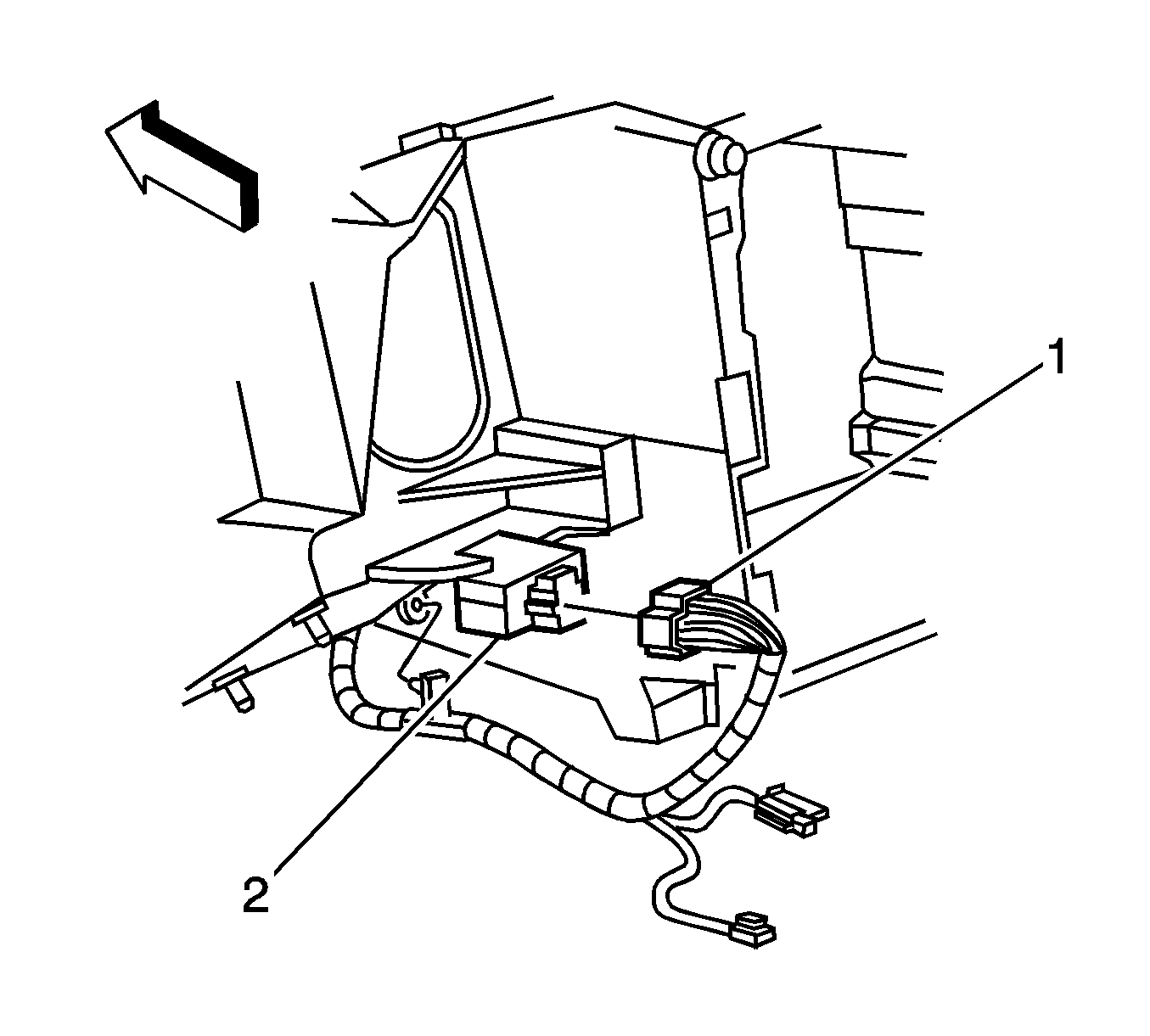

    Fig 1: Multifunction Alarm Module & Electrical Connector
    GM895364Courtesy of GENERAL MOTORS COMPANY
  1. Remove the driver side knee bolster bracket. Refer to Driver Knee Bolster Bracket Replacement .
  2. Disconnect the multifunction audio alarm module (2) electrical connector (1).
  3. Remove the multifunction audio alarm module (2) from the vehicle.
