Ambient Air Temperature Gauge Sensor Replacement

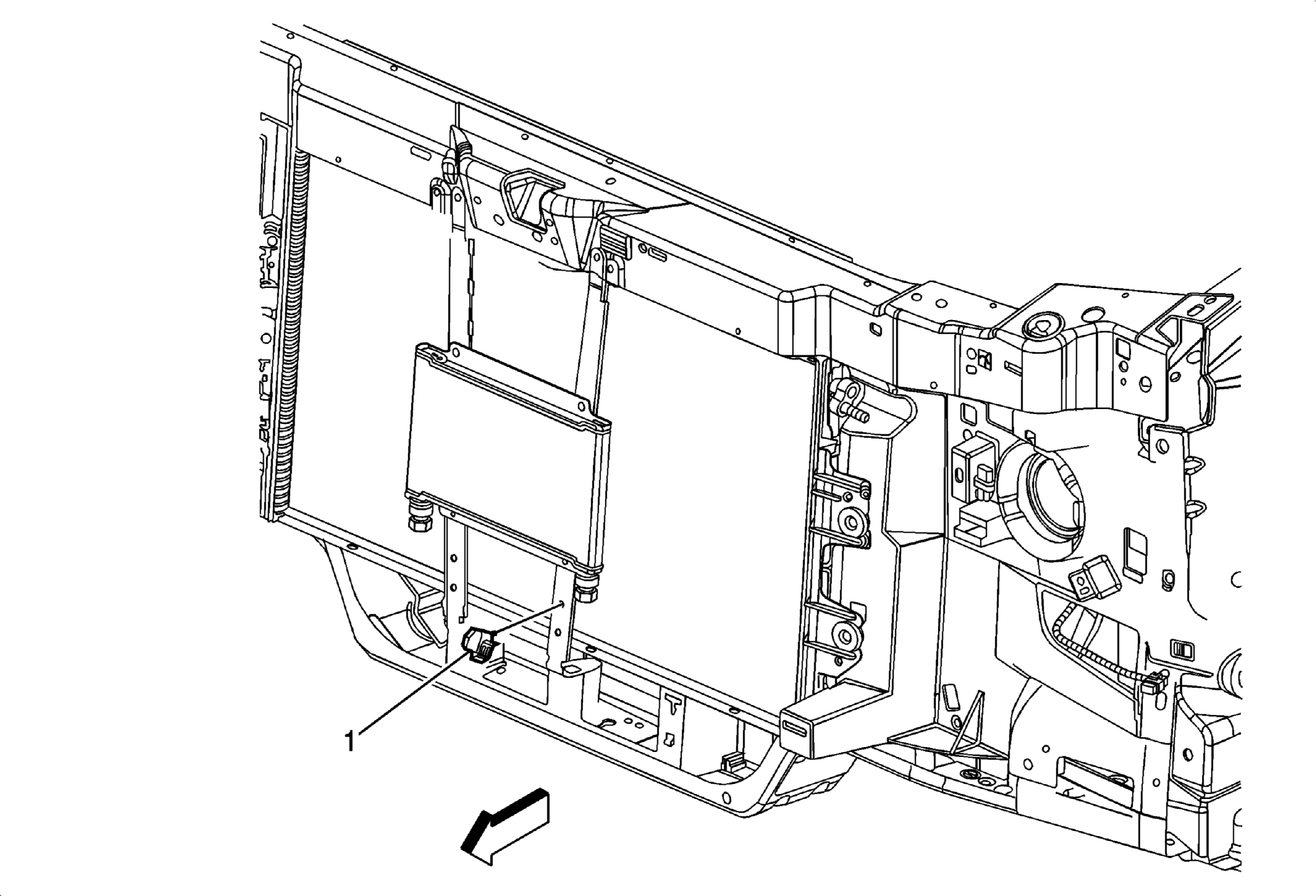

Fig 1: Locating Ambient Air Temperature Gage Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front grill assembly. Refer to Grille Replacement (Base) , Grille Replacement (Uplevel) .
1	Ambient Air Temperature Gauge Sensor Assembly Procedure Unsnap the sensor from the bracket. Disconnect the electrical connection.

Callout

Component Name

Preliminary Procedure
Remove the front grill assembly. Refer to Grille Replacement (Base) , Grille Replacement (Uplevel) .

Ambient Air Temperature Gauge Sensor Assembly

Procedure
