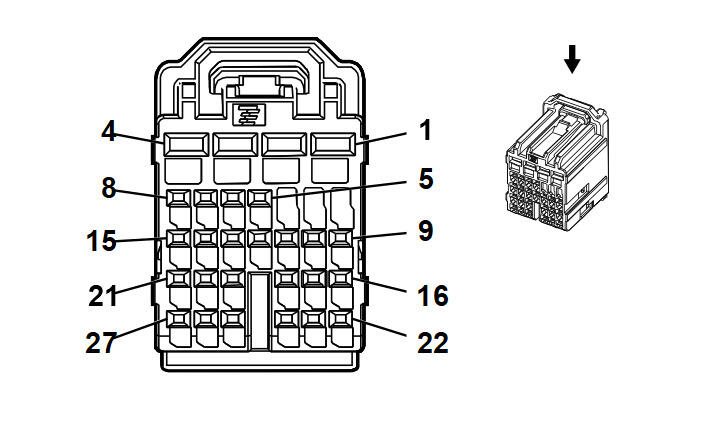

K9 Body Control Module X6

GM2537272

Connector Part Information

Harness Type: Body
OEM Connector: 13826917
Service Connector: 19151264
Description: 27-Way F 0.64, 2.8 Series (PK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13582326	J-35616-35 (VT)	J-38125-553	8100-4444	22	2	A
II	13582297	J-35616-64B (L-BU)	J-38125-22	Not Available	Not Available	Not Available	Not Available
III	13575578	J-35616-35 (VT)	J-38125-553	8100-4445	22	F	D

K9 Body Control Module X6

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	GY	5911	Door Lock Actuator Lock Control 2	I	-
2	0.75	GY/L-GN	3271	Door Lock Control (2)	I	-
3	2.5	BK	1650	Ground	III	-
4	0.75	BN/YE	294	Door Lock Actuator Unlock Control	I	-
5	0.5	VT/GY	1303	Lift Gate Ajar Switch Signal (1)	II	-
6-9	-	-	-	Not Occupied	-	-
10	0.5	L-GN/YE	6134	Linear Interconnect Network Bus 3	II	-
11-14	-	-	-	Not Occupied	-	-
15	0.5	YE/D-BU	5797	Rear Closure Handle Switch Open Signal	II	-
16	0.5	L-GN/BN	6132	Linear Interconnect Network Bus 1	II	-
17	-	-	-	Not Occupied	-	-
18	0.5	D-BU	2500	High Speed GMLAN Serial Data (+) (1)	II	-
19	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	II	-
20-23	-	-	-	Not Occupied	-	-
24	0.5	D-BU	2500	High Speed GMLAN Serial Data (+) (1)	II	-
25	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	II	-
26-27	-	-	-	Not Occupied	-	-
