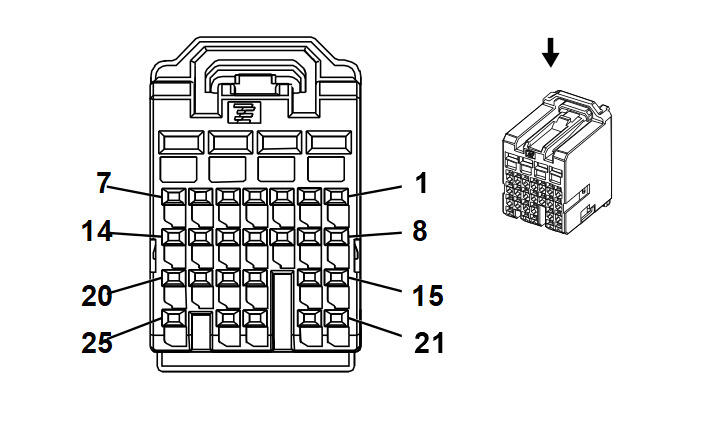

K9 Body Control Module X3

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13582297	J-35616-64B (L-BU)	J-38125-22	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	L-GN/GY	3277	Vehicle Anti-Theft System Immobilizer Return	I	-
2	0.5	L-GN/VT	7533	Linear Interconnect Network Bus 11	I	-
3	0.5	GY/BK	3276	Vehicle Anti-Theft System Immobilizer Supply Voltage	I	-
4	0.5	YE	7556	Lighting Control Switch Reference	I	-
5	0.5	VT/YE	4	Accessory Voltage	I	-
6	0.5	VT/BK	3	Run/Crank Ignition 1 Voltage	I	-
7	0.5	VT/YE	143	Accessory Voltage	I	-
8	0.5	L-GN/WH	6819	Steering Wheel Resistor Ladder Signal #2	I	-
9	0.5	GY/L-GN	5737	Adaptive Cruise Control Gap Up/Down Switch Signal	I	-
10	0.5	BK/GY	6009	Windshield Wiper Switch Low Reference	I	-
11	0.5	WH	524	Headlamp Dimmer Switch High Beam Signal	I	-
12	0.5	WH/L-GN	663	Hazard Switch Left Turn Signal	I	-
13	0.5	YE/D-BU	1714	Windshield Wiper Switch Low Signal	I	-
14	-	-	-	Not Occupied	-	-
15	0.5	WH/VT	1020	Off/Run/Crank Voltage	I	-
16	-	-	-	Not Occupied	-	-
17	0.5	YE/BN	307	Headlamp Switch Flash To Pass Signal	I	-
18	0.5	L-GN/WH	3287	Horn Switch Signal	I	-
19	-	-	-	Not Occupied	-	-
20	0.5	GY	1715	Windshield Wiper Switch High Signal	I	-
21	-	-	-	Not Occupied	-	-
22	0.5	WH/BK	1073	Ignition Key Resistor Signal	I	-
23	-	-	-	Not Occupied	-	-
24	0.5	VT/D-BU	664	Hazard Switch Right Turn Signal	I	-
25	0.5	WH/BK	94	Windshield Washer Switch Signal	I	-
