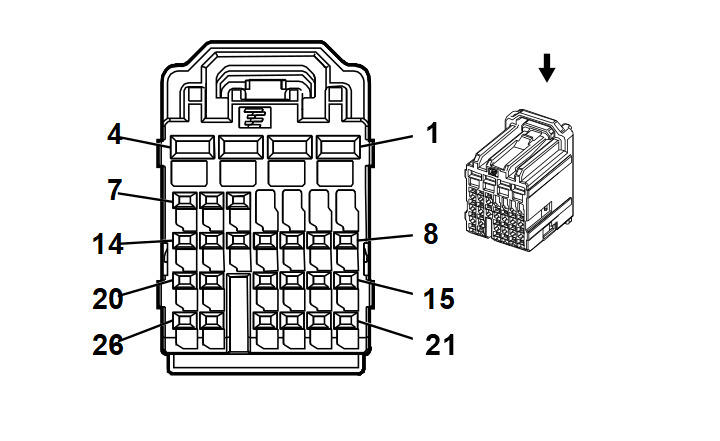

K9 Body Control Module X1
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13824335
- Service Connector: 19151262
- Description: 26-Way F 0.64, 2.8 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13575578 |
J-35616-35 (VT) |
J-38125-553 |
8100-4445 |
22 |
F |
D |
| II |
13582297 |
J-35616-64B (L-BU) |
J-38125-22 |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
13575578 |
J-35616-35 (VT) |
J-38125-553 |
Not Available |
Not Available |
Not Available |
Not Available |
K9 Body Control Module X1
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
BK |
1650 |
Ground |
I |
- |
| 2 |
2.5 |
RD/D-GN |
2440 |
Battery Positive Voltage |
I |
- |
| 3 |
2.5 |
RD/YE |
2340 |
Battery Positive Voltage |
I |
- |
| 4 |
1.5 |
RD/BN |
2240 |
Battery Positive Voltage |
III |
- |
| 5-7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.5 |
BN/BK |
5720 |
Ignition Mode Switch Accessory LED Signal |
II |
- |
| 9 |
0.5 |
WH/BN |
7555 |
Lighting Control Switch Signal |
II |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.5 |
D-GN/BN |
306 |
Headlamp Switch Headlamps Off Signal Control |
II |
- |
| 12-13 |
- |
- |
- |
Not Occupied |
- |
- |
| 14 |
0.5 |
GY/L-GN |
328 |
Interior Lamp Defeat Switch Signal |
II |
- |
| 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.5 |
WH/VT |
103 |
Headlamp Switch On Signal |
II |
- |
| 17 |
0.5 |
L-BU/VT |
1717 |
Hazard Switch Turn Flasher Control |
II |
- |
| 18 |
- |
- |
- |
Not Occupied |
- |
- |
| 19 |
0.5 |
BK/BN |
5360 |
Brake Apply Sensor Low Reference |
II |
- |
| 20 |
0.5 |
D-BU/BK |
5719 |
Ignition Mode Switch Start LED Signal |
II |
- |
| 21 |
0.5 |
GY |
728 |
Security Indicator Control |
II |
- |
| 22 |
0.5 |
D-GN/GY |
13 |
Headlamp Switch Park Lamp Signal |
II |
- |
| 23 |
- |
- |
- |
Not Occupied |
- |
- |
| 24 |
0.5 |
WH |
2501 |
High Speed GMLAN Serial Data (-) (1) |
II |
- |
| 25 |
0.5 |
D-BU |
2500 |
High Speed GMLAN Serial Data (+) (1) |
II |
- |
| 26 |
0.5 |
YE/L-GN |
3274 |
Remote Function Actuator Transmit Signal |
II |
- |
