Power, Ground, Gauges and Serial Data Wiring Schematics

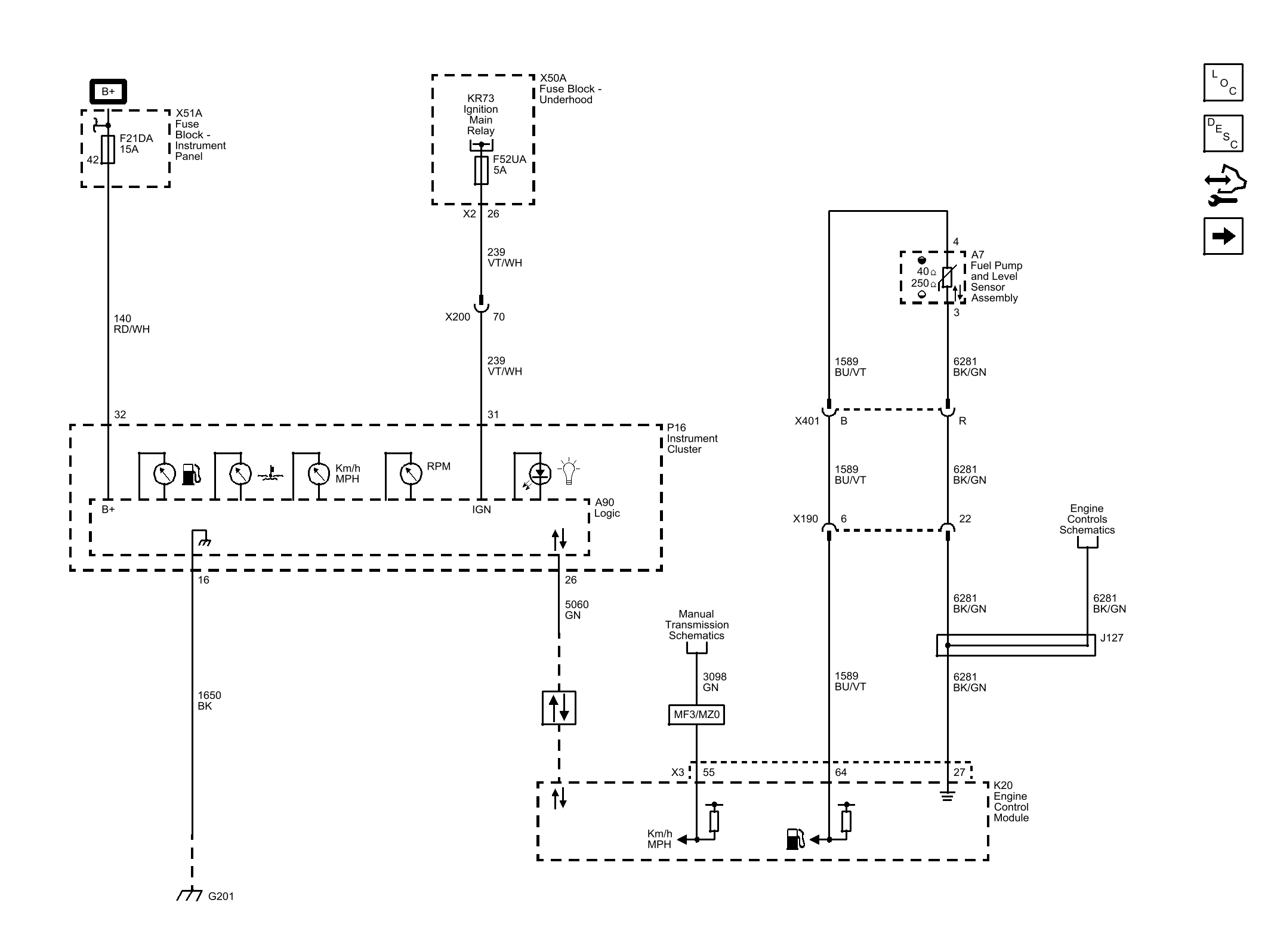

Fig 1: Power, Ground, Gauges and Serial Data Wiring Schematic

GM3250300

Courtesy of GENERAL MOTORS COMPANY
