Air Temperature and Driver Information Center Wiring Schematics

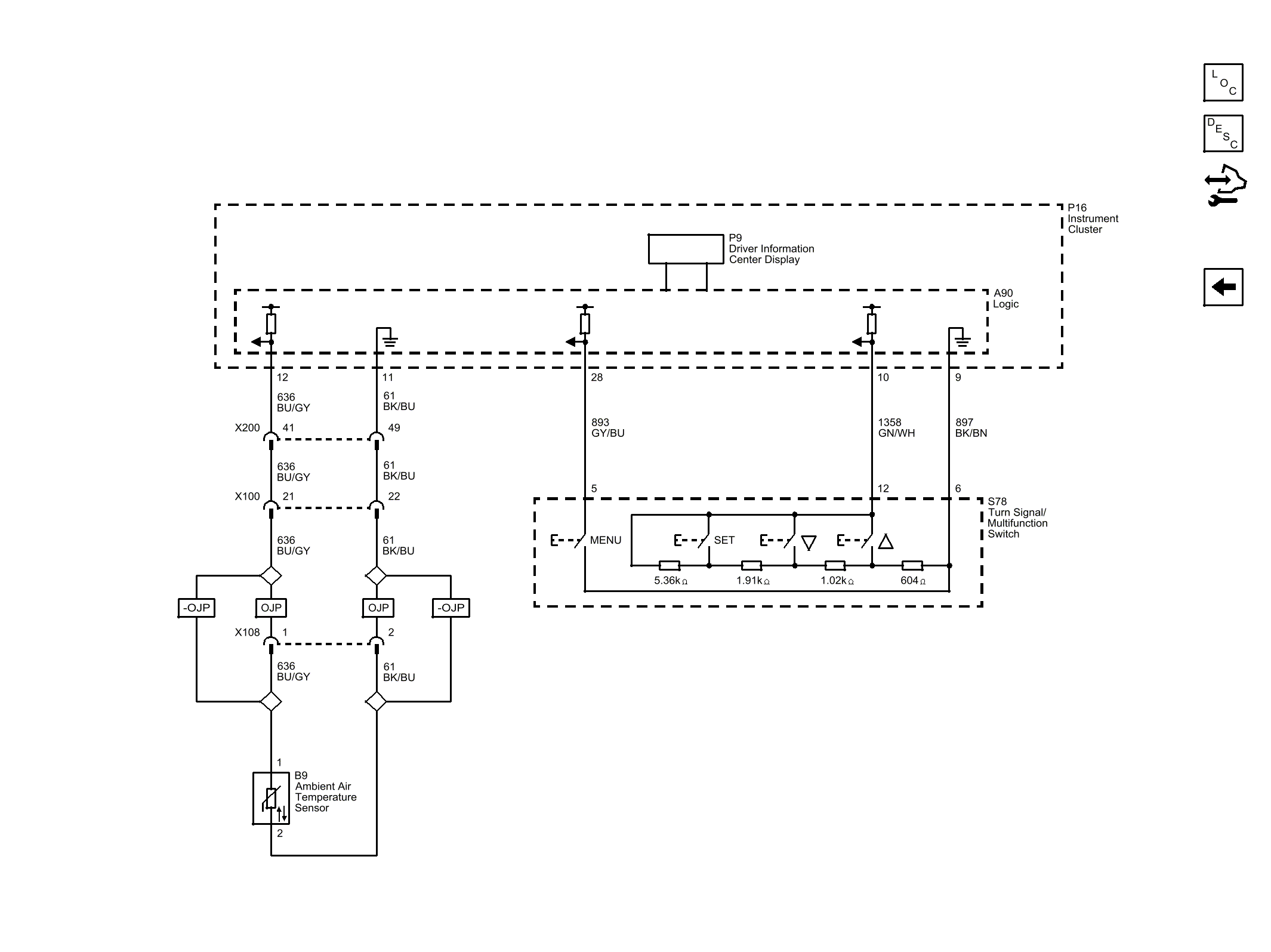

Fig 1: Air Temperature and Driver Information Center Wiring Schematic

GM3250353

Courtesy of GENERAL MOTORS COMPANY
