Instrument Panel Side Trim Panel Replacement

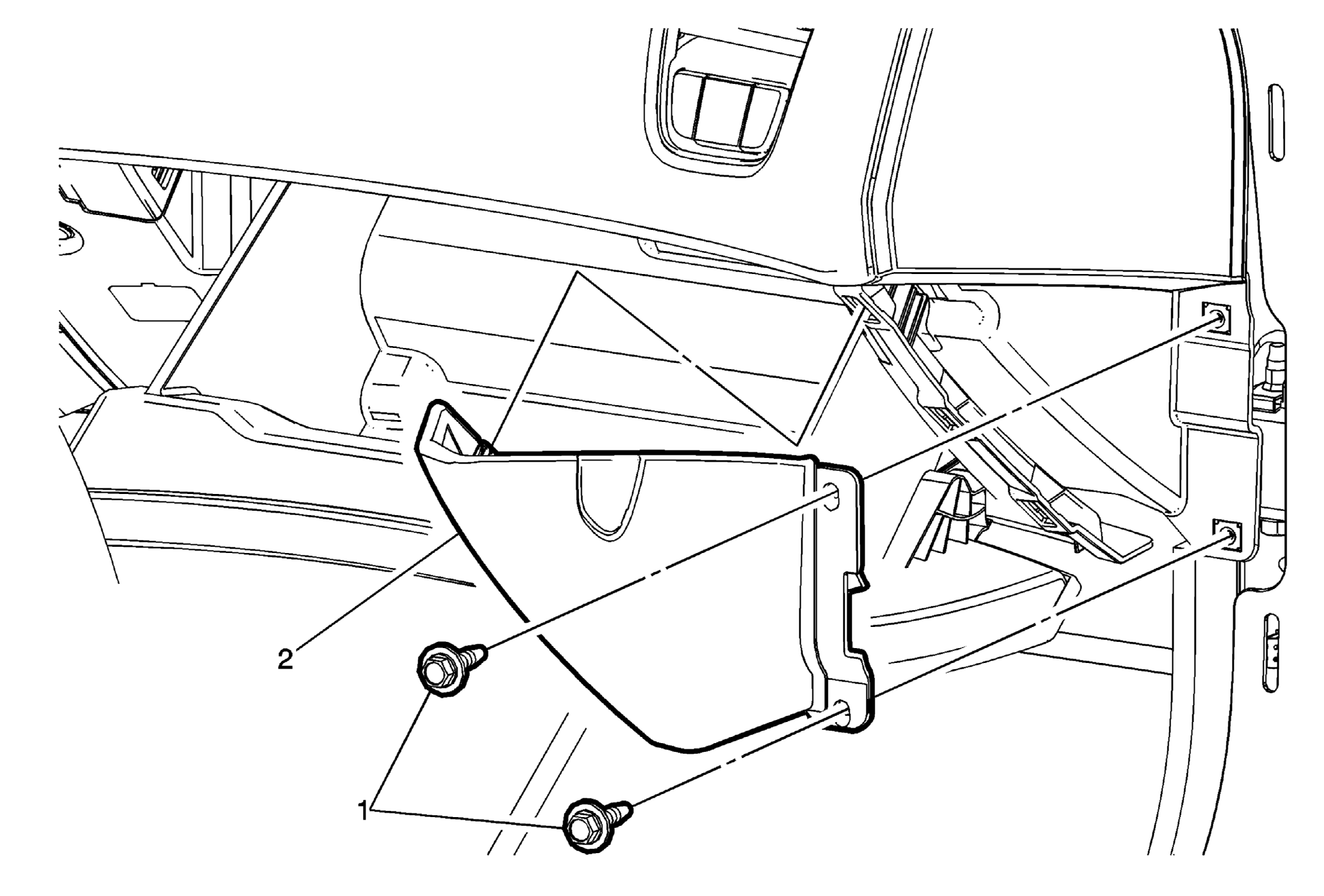

Fig 1: Instrument Panel Side Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right body hinge pillar garnish molding. Refer to Body Hinge Pillar Garnish Molding Replacement .
1	Instrument Panel Side Trim Panel Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 (22 lb in)
2	Instrument Panel Side Trim Panel Procedures Open the instrument panel compartment to access the retainer for the side trim panel. Use a flat bladed plastic trim tool in order to release the retainers securing the trim panel to the instrument panel compartment.

Callout

Component Name

Preliminary Procedure
Remove the right body hinge pillar garnish molding. Refer to Body Hinge Pillar Garnish Molding Replacement .

Instrument Panel Side Trim Panel Bolt (Qty: 2)

CAUTION:

Tighten
2.5 (22 lb in)

Instrument Panel Side Trim Panel

Procedures

Open the instrument panel compartment to access the retainer for the side trim panel.
Use a flat bladed plastic trim tool in order to release the retainers securing the trim panel to the instrument panel compartment.
