Power, Gound and Serial Data Wiring Schematics

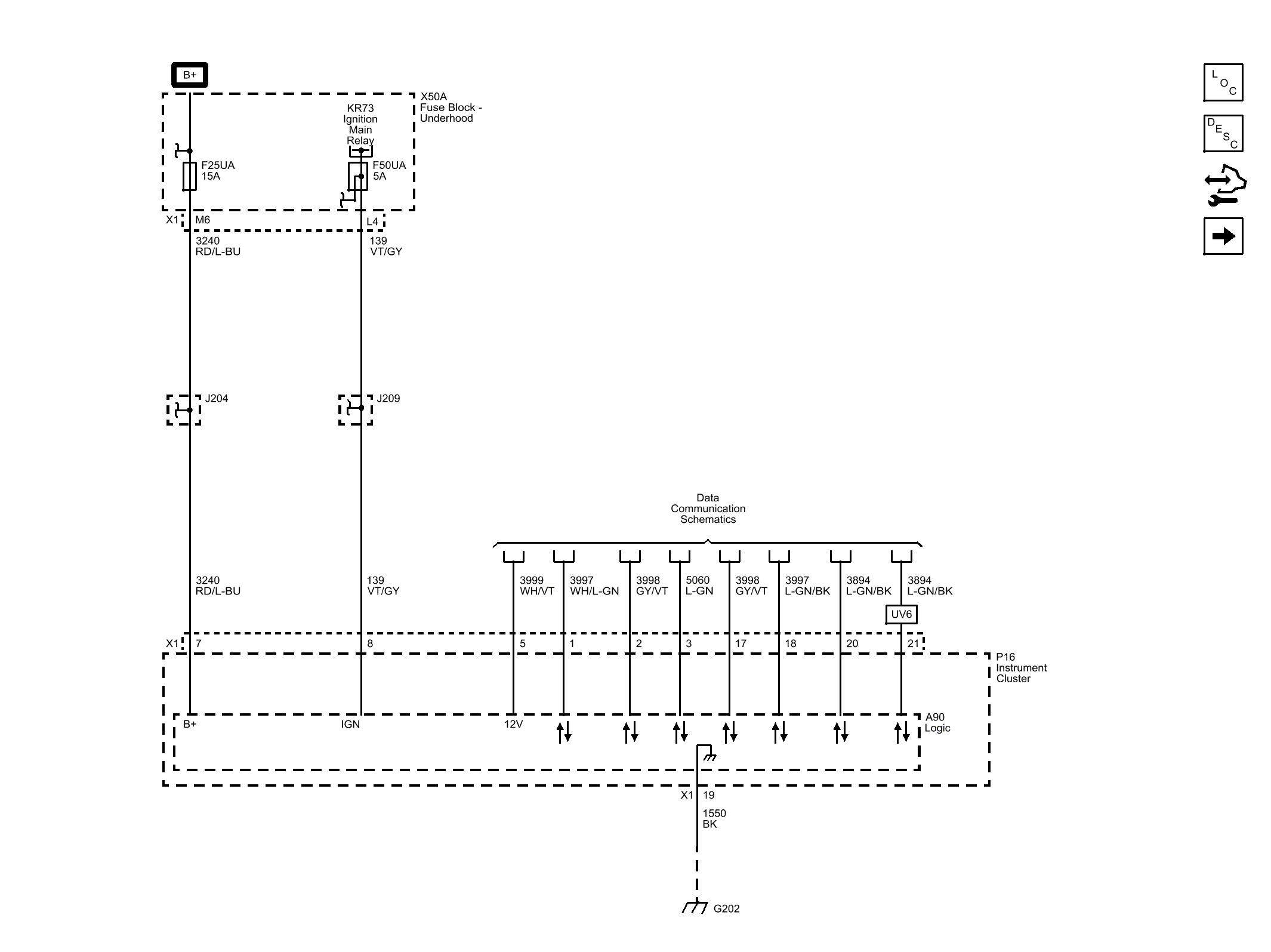

Fig 1: Power, Gound and Serial Data Wiring Schematics

GM3407820

Courtesy of GENERAL MOTORS COMPANY
