Driver Information Display Replacement
Driver Information Display Replacement

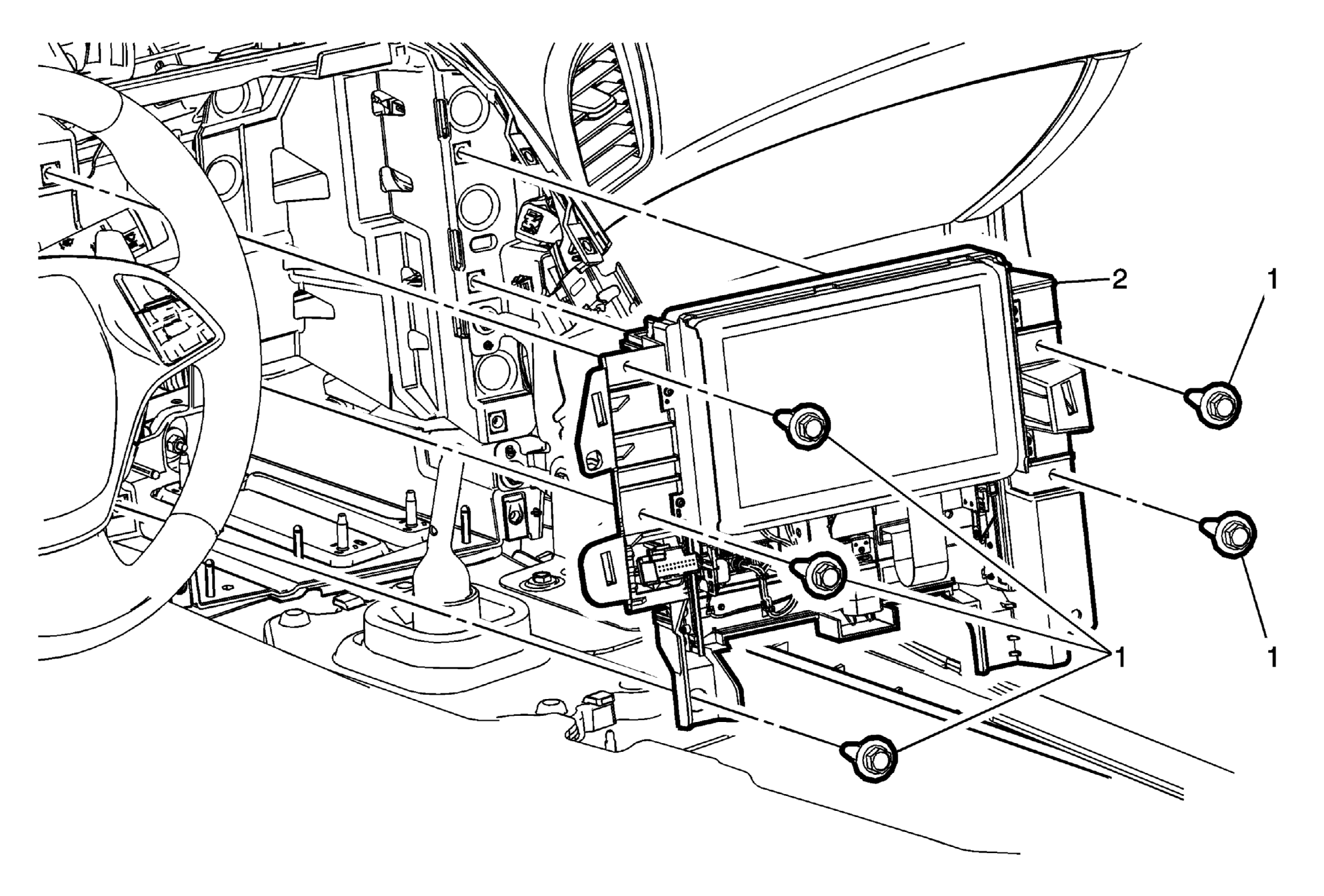

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel carrier reinforcement. Refer to Instrument Panel Carrier Reinforcement Replacement . |
|
| 1 | Driver Information Display Bolt (Qty: 5)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 (22 lb in) |
| 2 | Driver Information Display Procedure Disconnect all electrical connectors. |
