Power Steering Fluid Reservoir Bracket Replacement

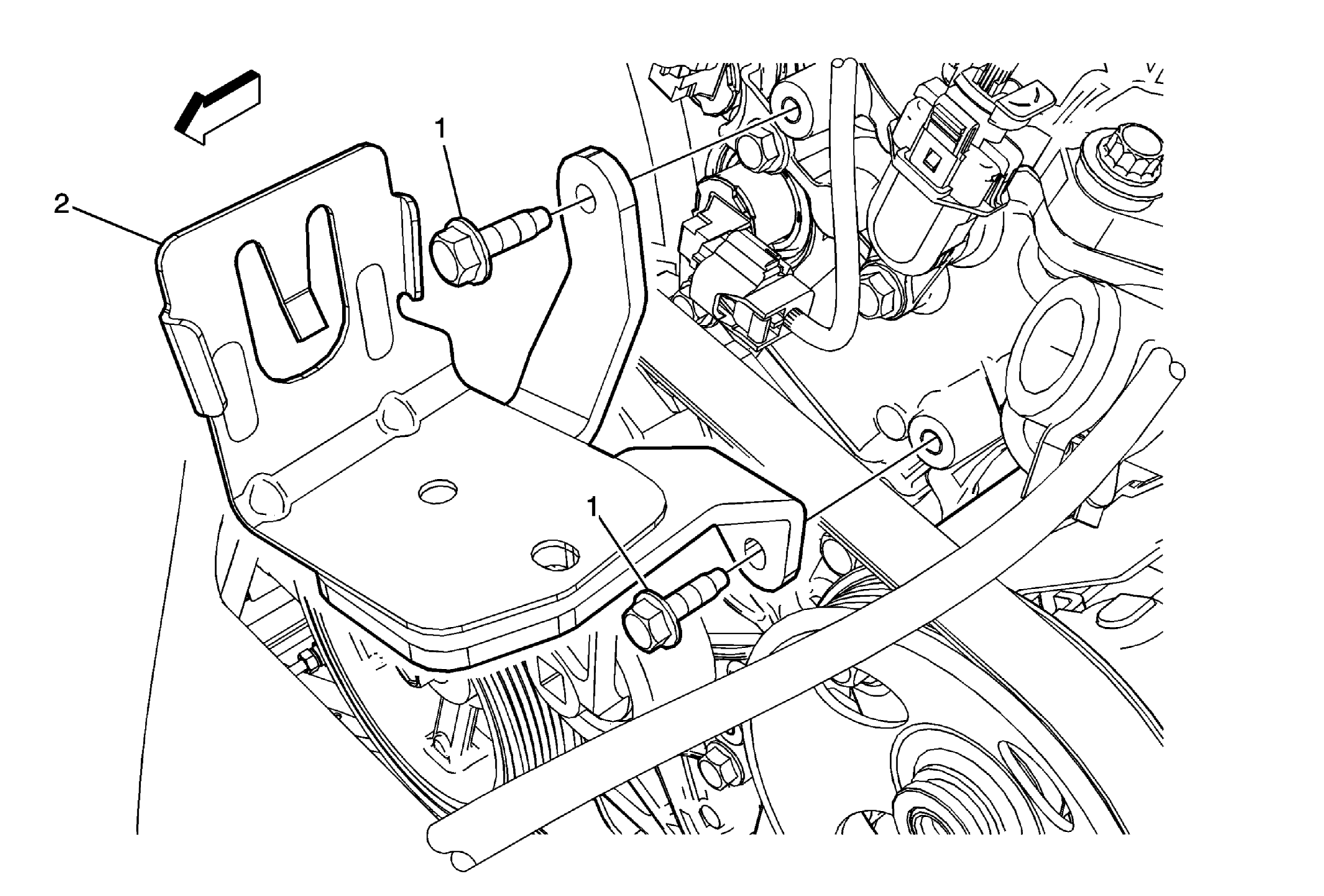

Fig 1: Power Steering Fluid Reservoir Bracket And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the power steering fluid reservoir. Refer to Power Steering Fluid Reservoir Replacement .
1	Power Steering Fluid Reservoir Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Power Steering Fluid Reservoir Bracket
