Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Intake Manifold Cover & Cap
    GM2667623Courtesy of GENERAL MOTORS COMPANY
  1. Remove the intake manifold cover (2). Refer to Intake Manifold Cover Replacement - Front .
    2. Fig 2: Intake Manifold Cover & Retainers
    GM2667617Courtesy of GENERAL MOTORS COMPANY
  2. Remove the rear intake manifold cover retainers (1).
  3. Remove the rear intake manifold cover (2).

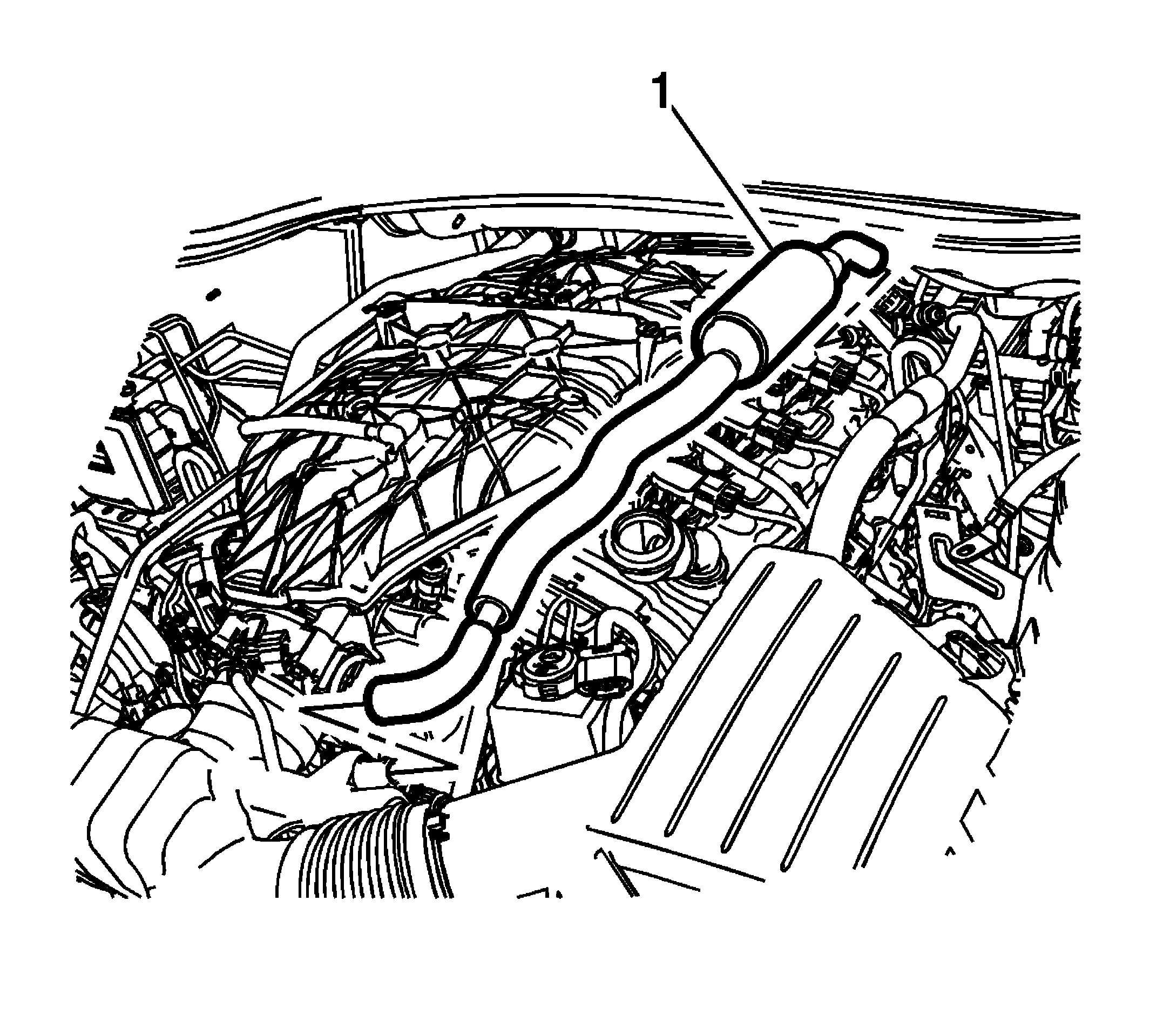

    4. Fig 3: PCV Fresh Air Tube
    GM2667522Courtesy of GENERAL MOTORS COMPANY
  4. Remove the positive crankcase ventilation (PCV) fresh air tube (1) from the left camshaft cover.
  5. Remove the PCV fresh air tube (1) from the air inlet.
    6. Fig 4: PCV Dirty Air Tube
    GM2667575Courtesy of GENERAL MOTORS COMPANY
  6. Remove the PCV dirty air tube (1) from the right camshaft cover.
  7. Remove the PCV dirty air tube (1) from the intake manifold.
