Installation Procedure
WARNING: This page is about a different variant/trim than selected.

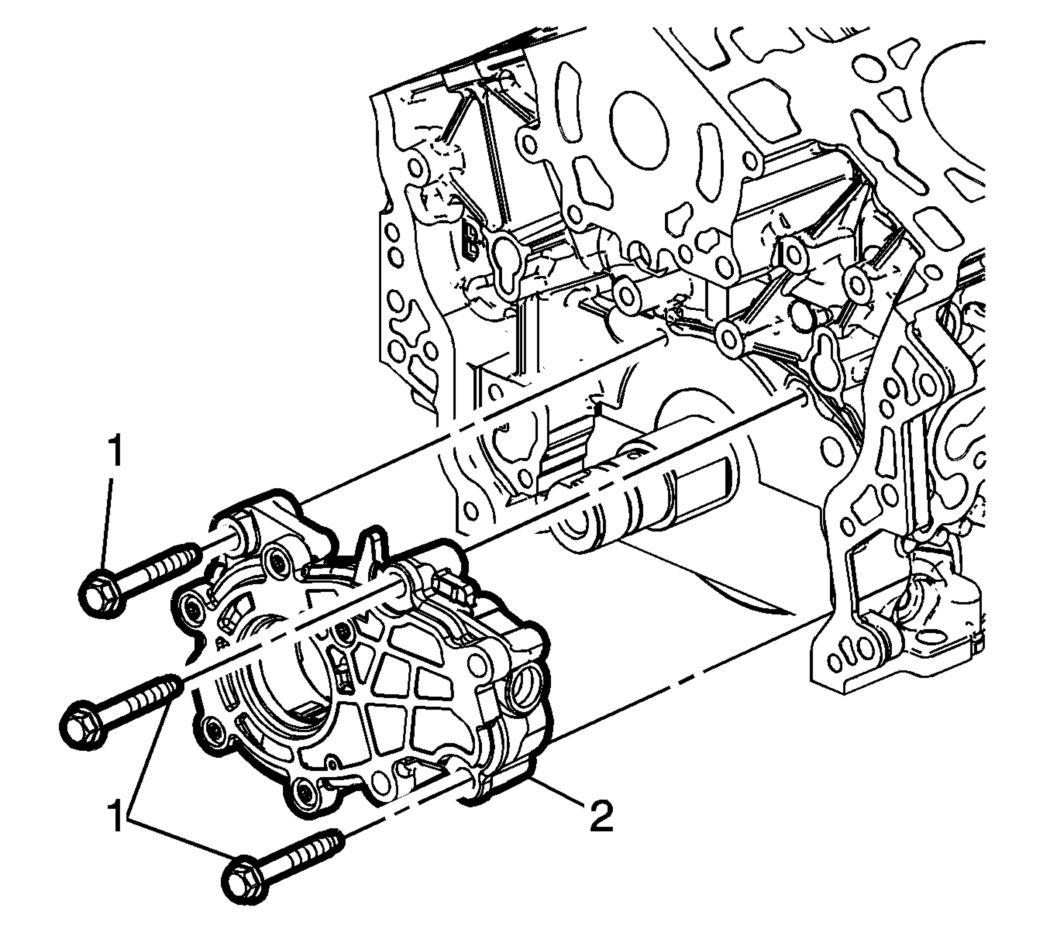

- Align the oil pump drive gear with the crankshaft flats and install the oil pump (2) to the engine block.
- Align the pump body with the mounting holes in the cylinder block.
- Install the oil pump bolts and tighten to 25 N.m (18 lb ft).
- Install the primary timing chain. Refer to Primary Camshaft Drive Chain and Sprockets Replacement .
CAUTION:
Refer to Fastener Caution .
