Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Oil Level Indicator Tube & O-Ring
    GM1958778Courtesy of GENERAL MOTORS COMPANY
  1. Install the O-ring (1) on the oil level indicator tube (2).

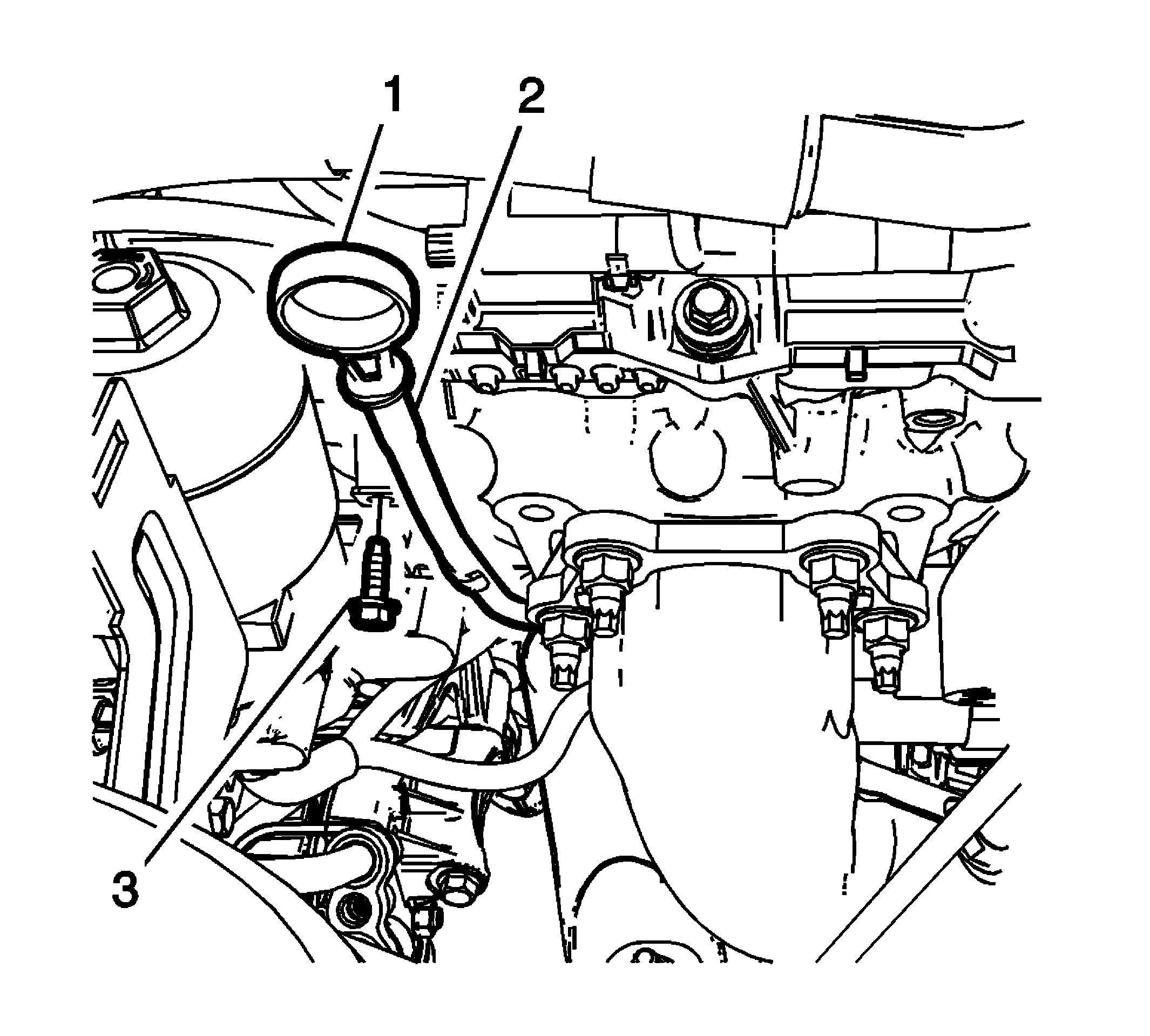

    2. Fig 2: Oil Level Indicator, Tube & Cylinder Head Retaining Bolt
    GM2667581Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Apply suitable downward pressure to install the oil level indicator tube to the engine.

  2. Install the oil level indicator tube (2) to the engine.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the oil level indicator tube to cylinder head retaining bolt (3) and tighten to 9 N.m (80 lb in).
  4. Install the oil level indicator (1) to the oil level indicator tube (2).
    5. Fig 3: Intake Manifold Cover & Cap
    GM2667623Courtesy of GENERAL MOTORS COMPANY
  5. Install the intake manifold cover (2). Refer to Intake Manifold Cover Replacement - Front .
