Installation Procedure

WARNING: This page is about a different variant/trim than selected.

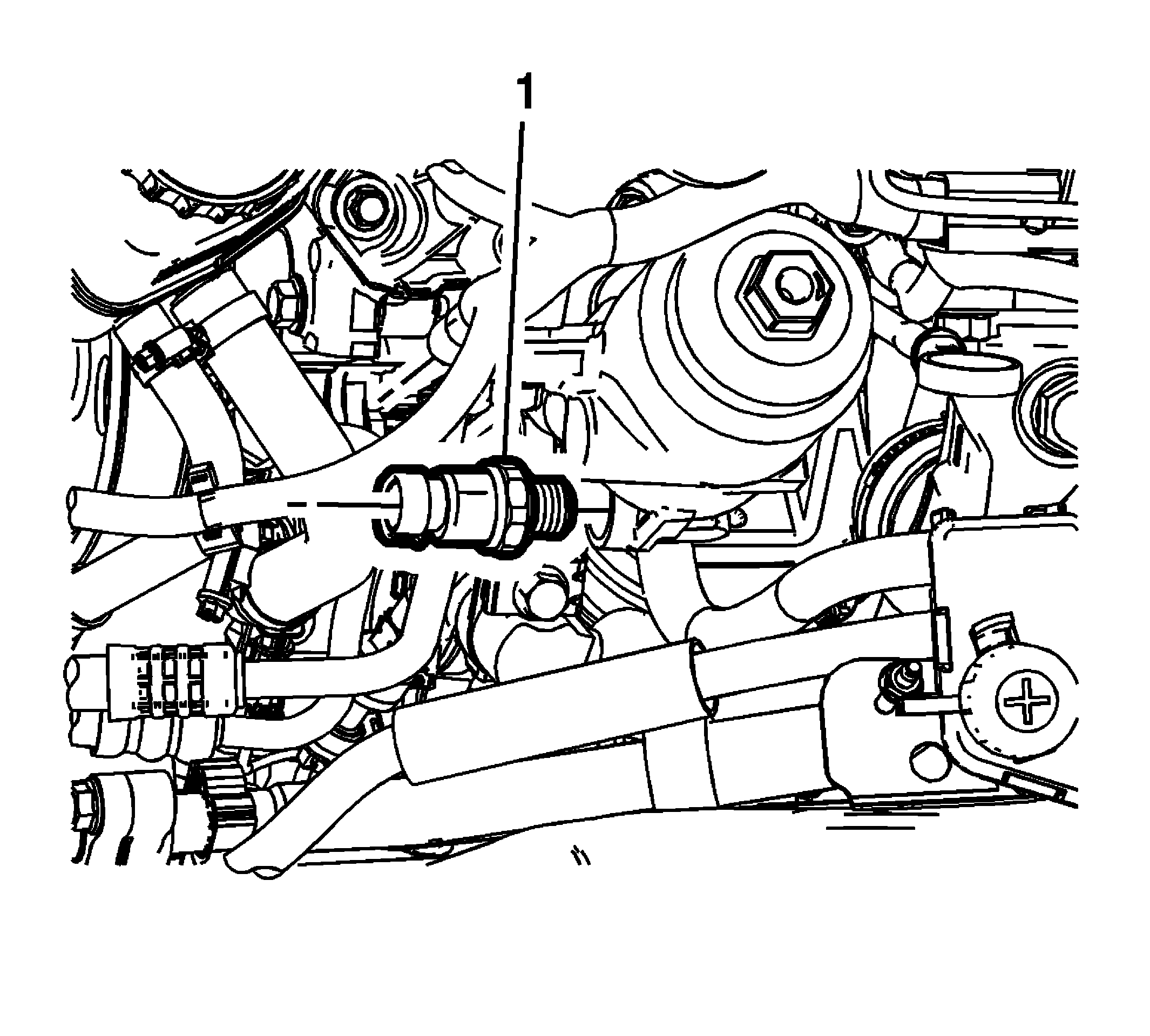

    Fig 1: Oil Pressure Sensor Electrical Connector
    GM2658859Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the oil pressure sensor (1) and tighten to 20 N.m (15 lb ft).
  2. Connect the oil pressure sensor electrical connector.
  3. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
