Installation Procedure

WARNING: This page is about a different variant/trim than selected.

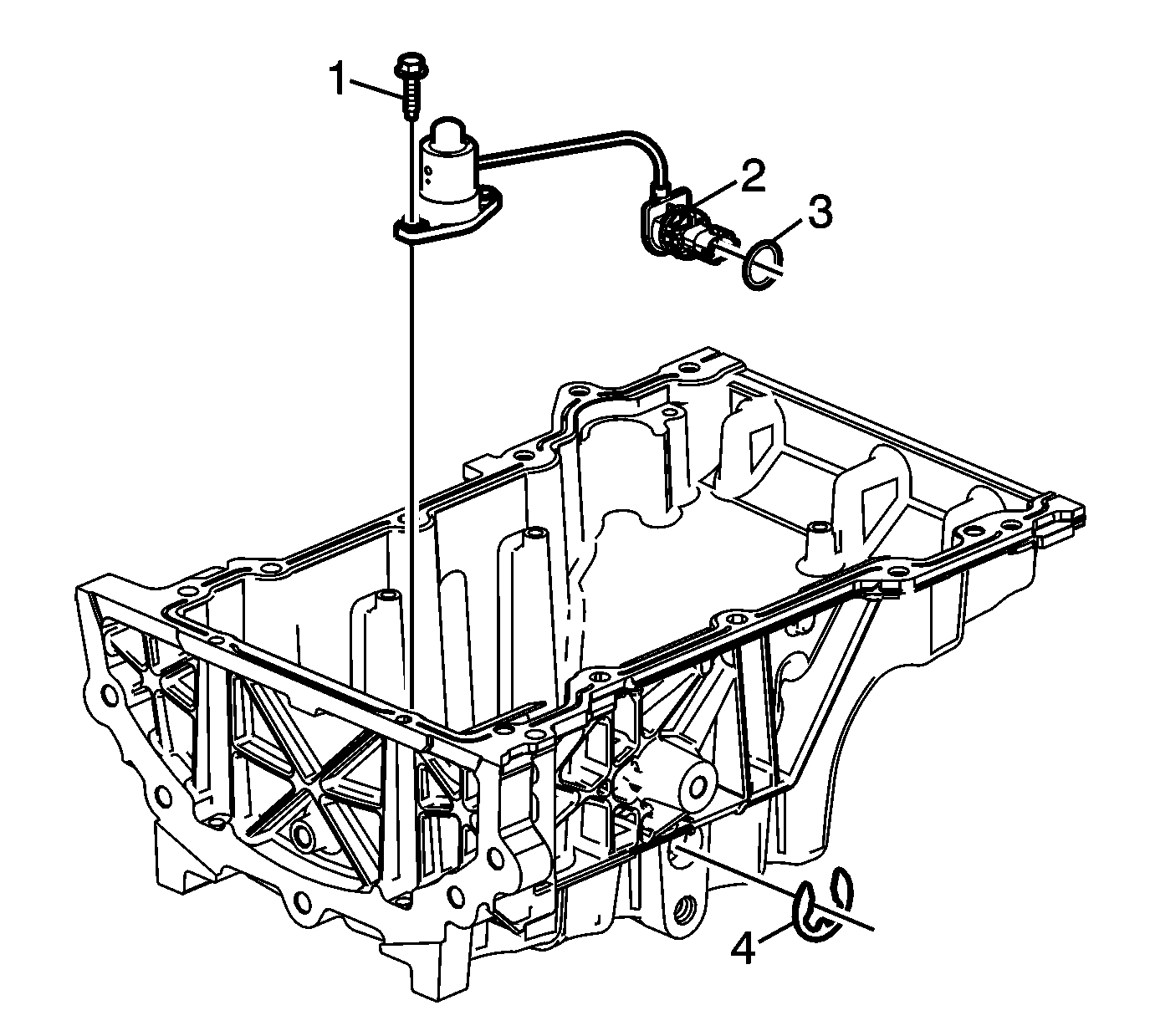

    Fig 1: Engine Oil Level Switch & Components
    GM2736508Courtesy of GENERAL MOTORS COMPANY
  1. Install the NEW engine oil level switch seal (3).
  2. Install the engine oil level switch (2).
  3. Install the engine oil level switch bolts (1) and tighten to 10 N.m (89 lb in).
  4. Install NEW engine oil level switch clip (4).
  5. Install the oil pan. Refer to Oil Pan Replacement .
