Installation Procedure

WARNING: This page is about a different variant/trim than selected.

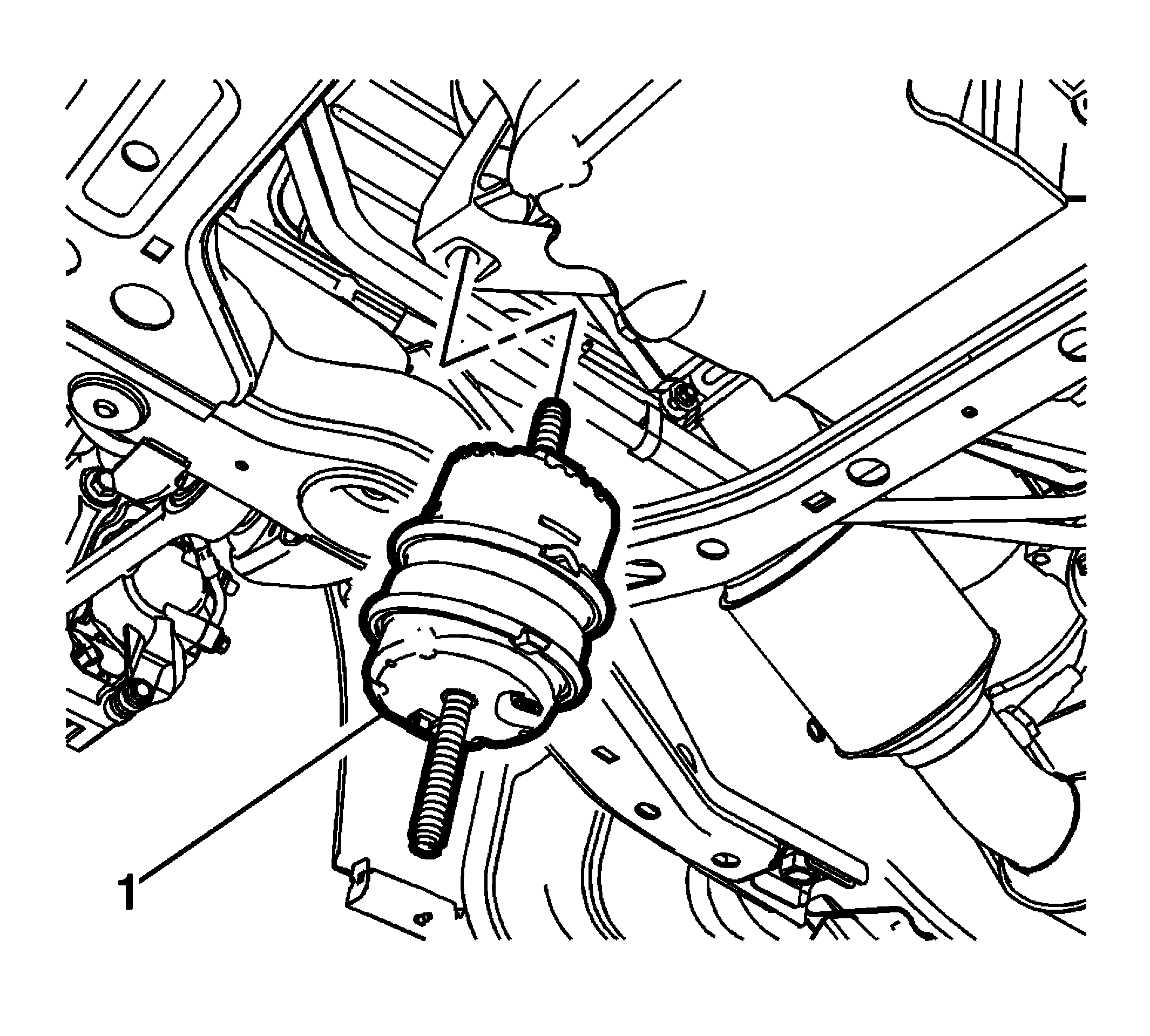

    Fig 1: Right Hand Engine Mount
    GM2667527Courtesy of GENERAL MOTORS COMPANY
  1. Install the right hand engine mount (1) to the frame rail.
    2. NOTE:

    When lowering the engine, ensure the left engine mount lower stud is aligned with the hole in the left frame rail.

  2. Carefully lower the engine with the screw jack until the upper engine mount stud enters the right hand engine mount bracket hole.
  3. Remove the screw jack and block of wood.
    4. Fig 2: Lower Engine Mount Nuts
    GM2667590Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Install NEW engine mount to frame retaining nuts (1).

    Tighten

    Tighten the nuts to 80 N.m (59 lb ft).

  5. Lower the vehicle.

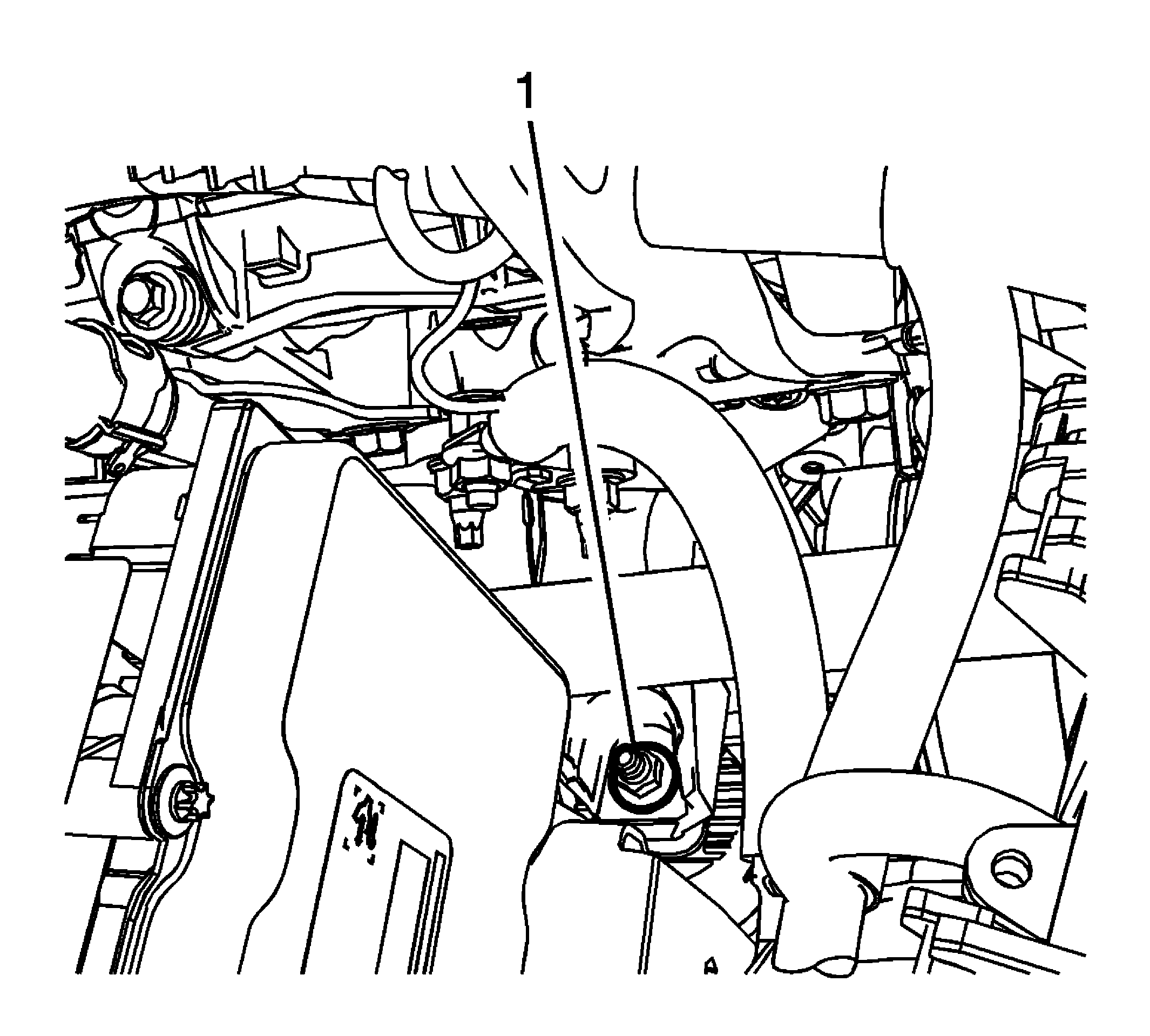

    6. Fig 3: Engine Mounting Bracket Retaining Nut
    GM2667524Courtesy of GENERAL MOTORS COMPANY
  6. Install the right hand engine mount to engine mounting bracket retaining nut (1).

    Tighten

    Tighten the nut to 80 N.m (59 lb ft).
