Installation Procedure
WARNING: This page is about a different variant/trim than selected.

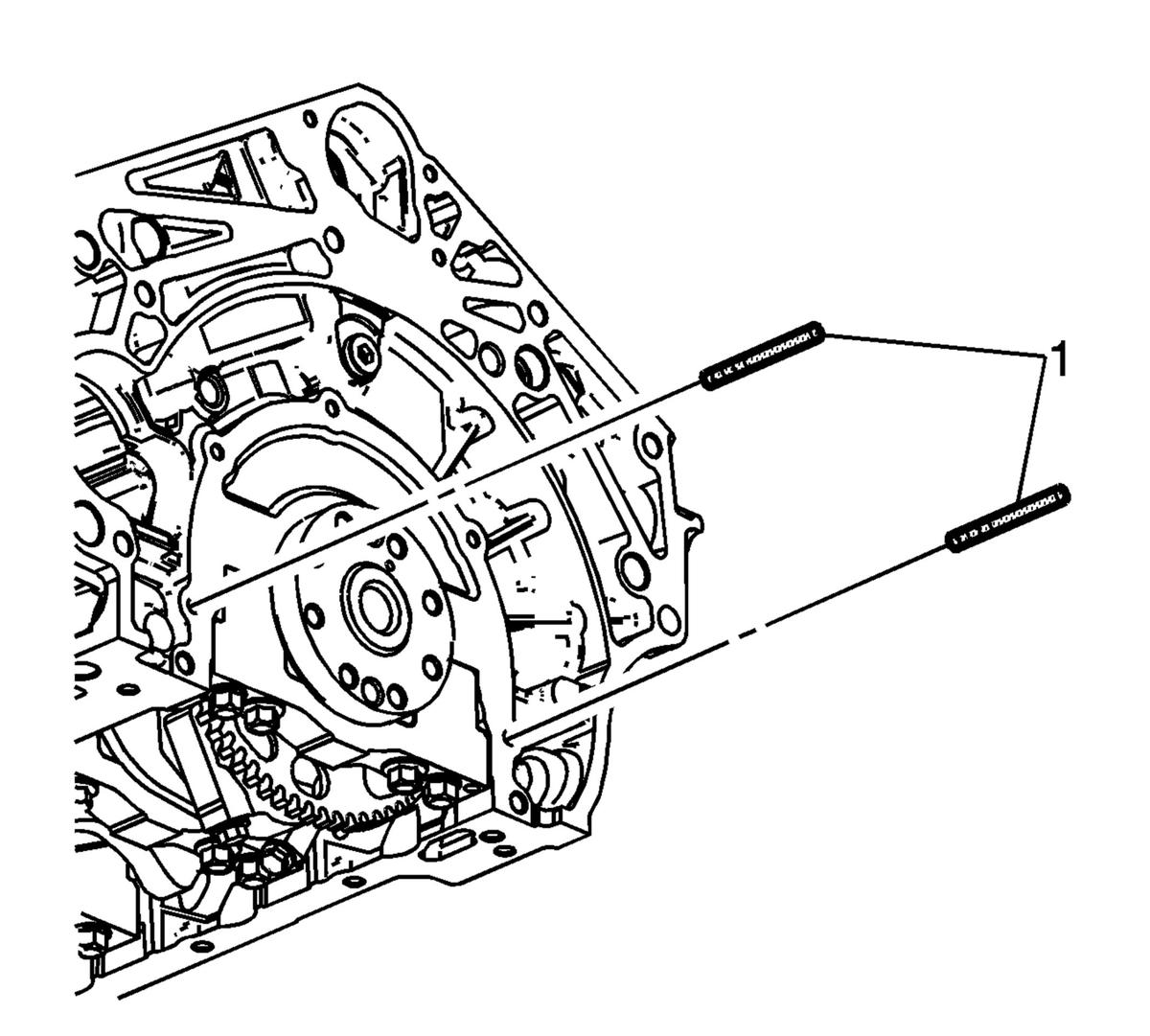

- Install the 6 mm (0.236 in) guides from the EN-46109 pin set into the 2 crankshaft rear oil seal housing corner bolt holes of the engine block

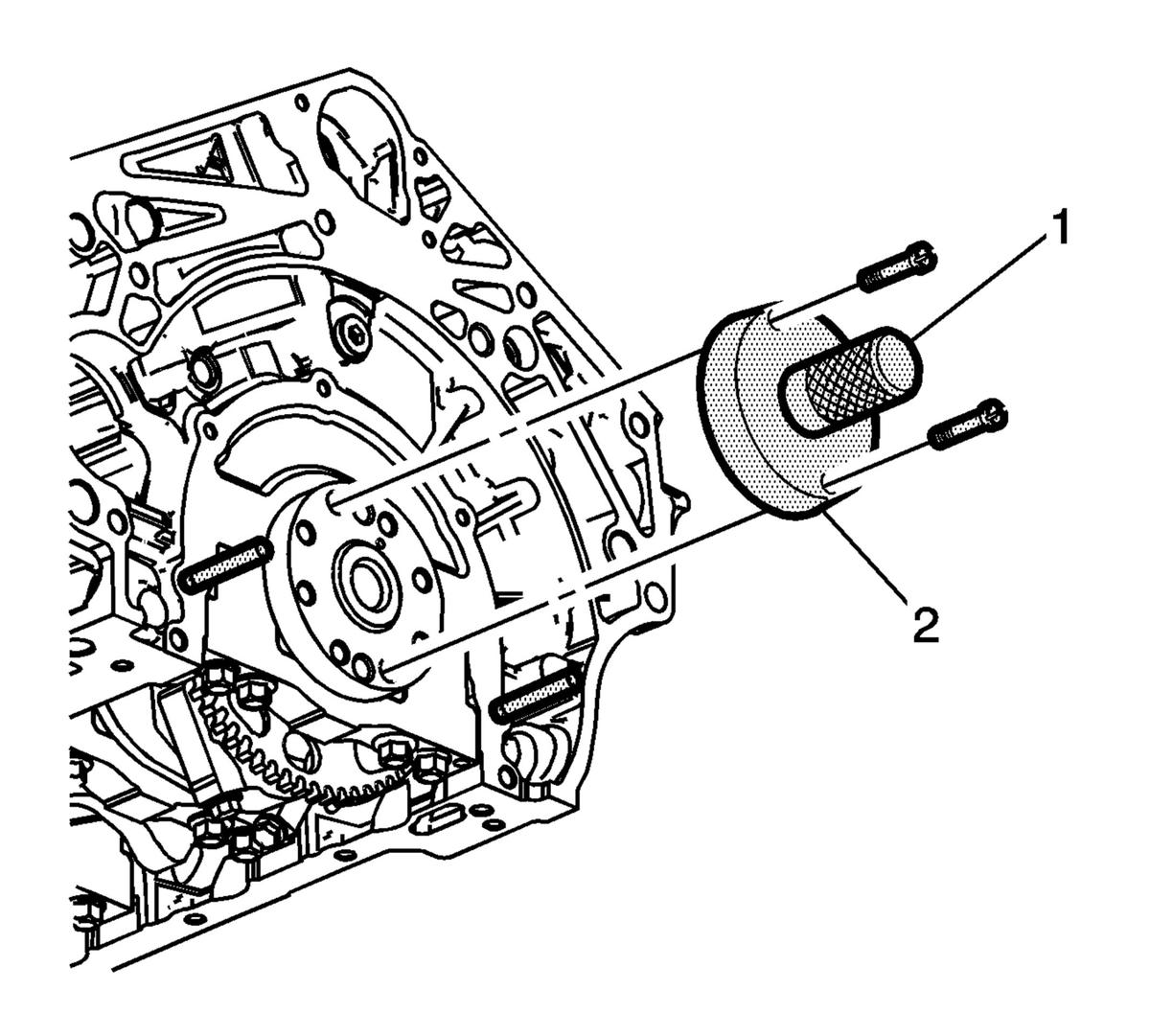

- Install the EN-47839 tool with the EN-42183 handle (1, 2) onto the rear of the crankshaft flange.

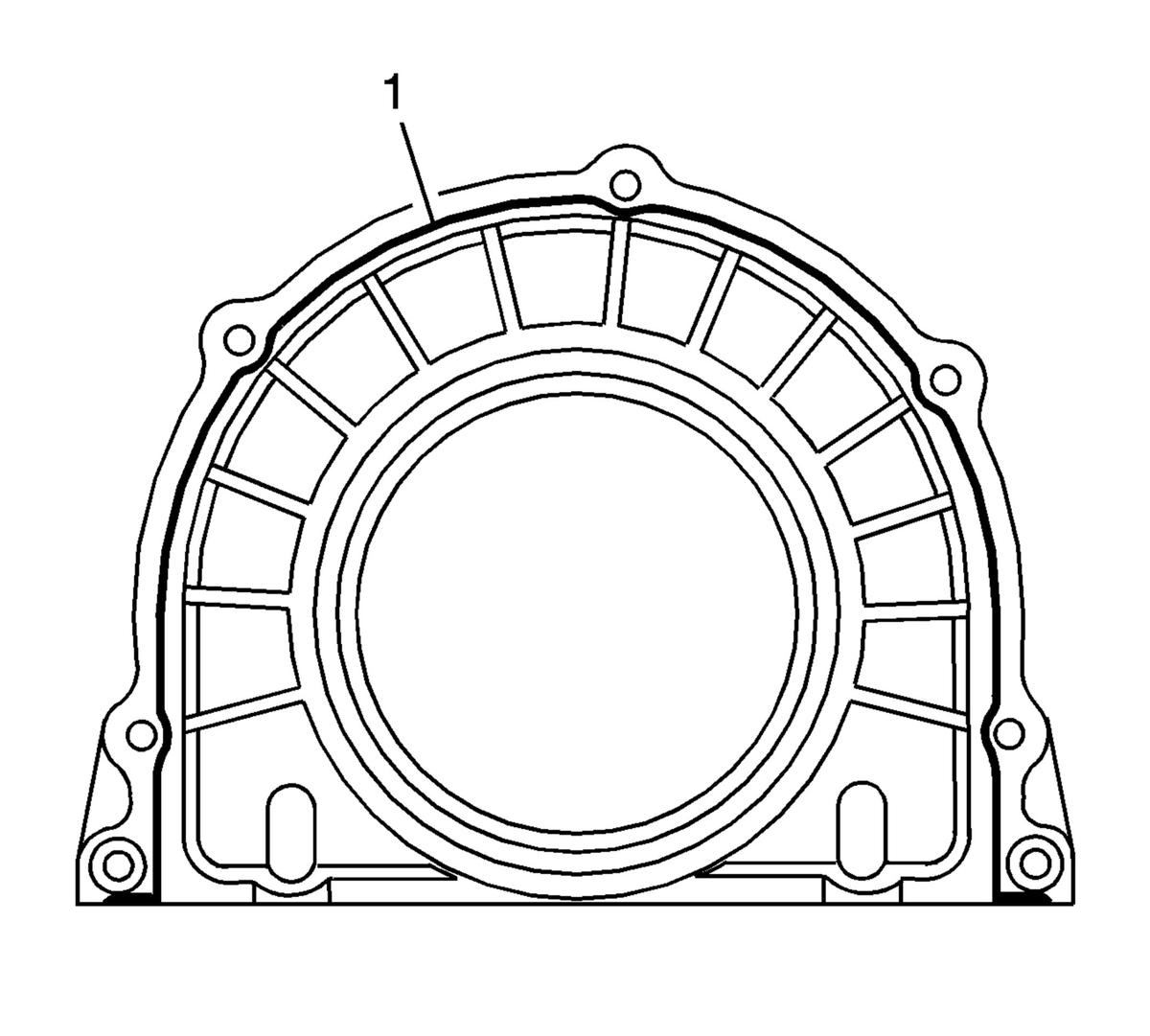

- Place a 3 mm (0.118 in) bead of RTV sealant (1) to the NEW crankshaft rear oil seal housing as shown (1). Refer to Adhesives, Fluids, Lubricants, and Sealers , for recommended sealant.

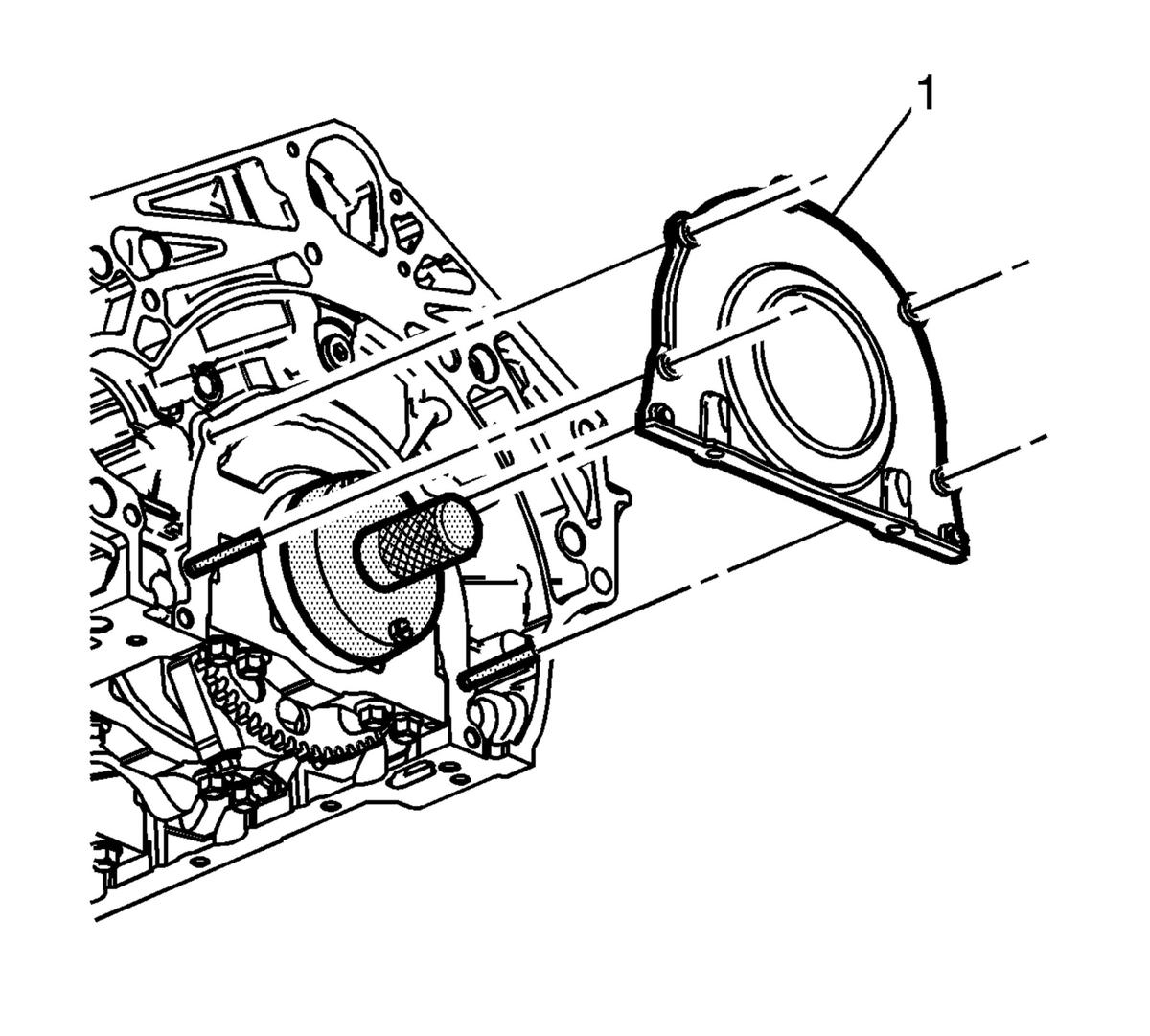

- Install the crankshaft rear oil seal housing (1) to the engine block.

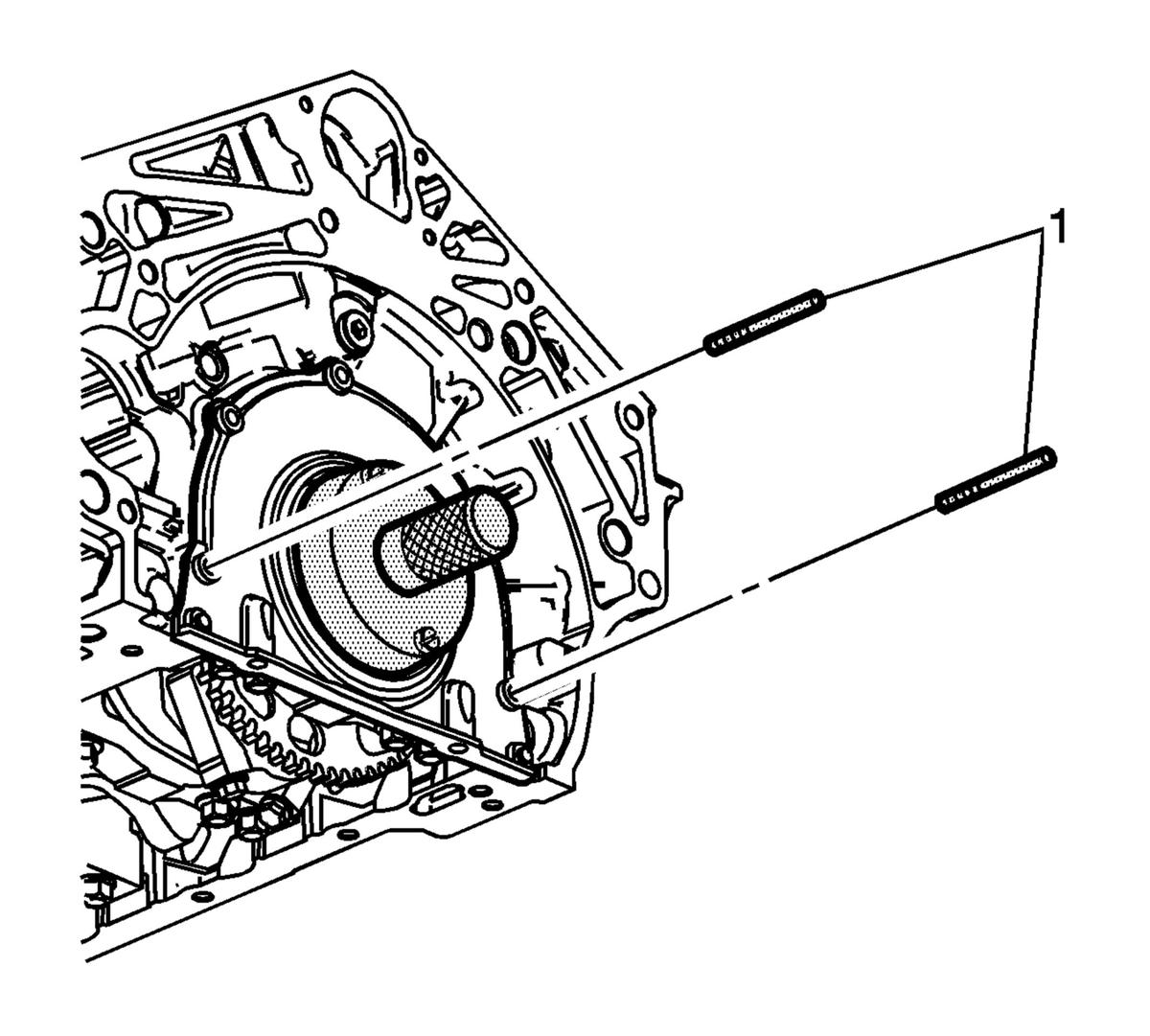

- Remove the EN-46109 pin set 6 mm (0.236 in) guides (1) from the engine block.

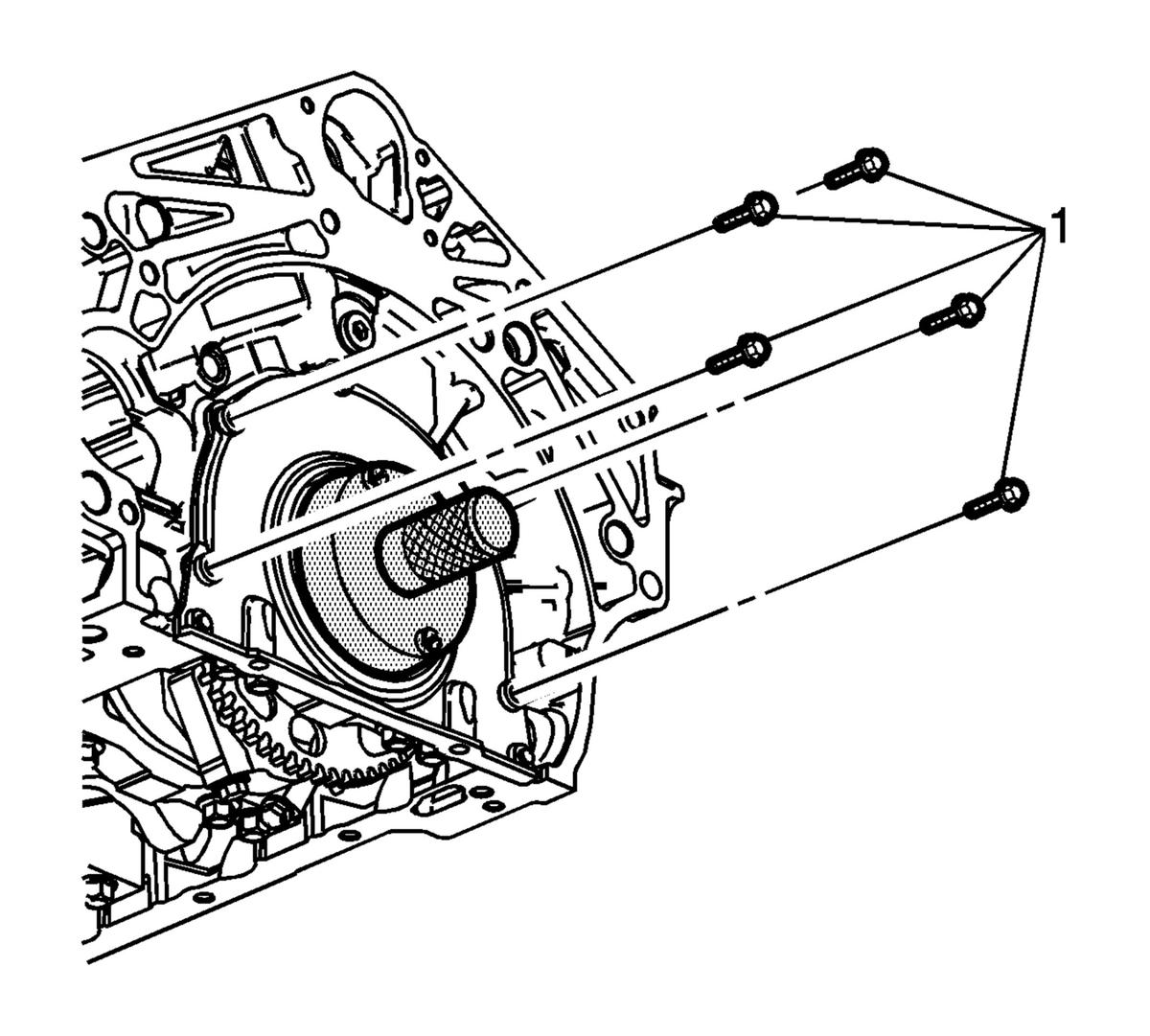

- Install the crankshaft rear oil seal housing bolts (1).

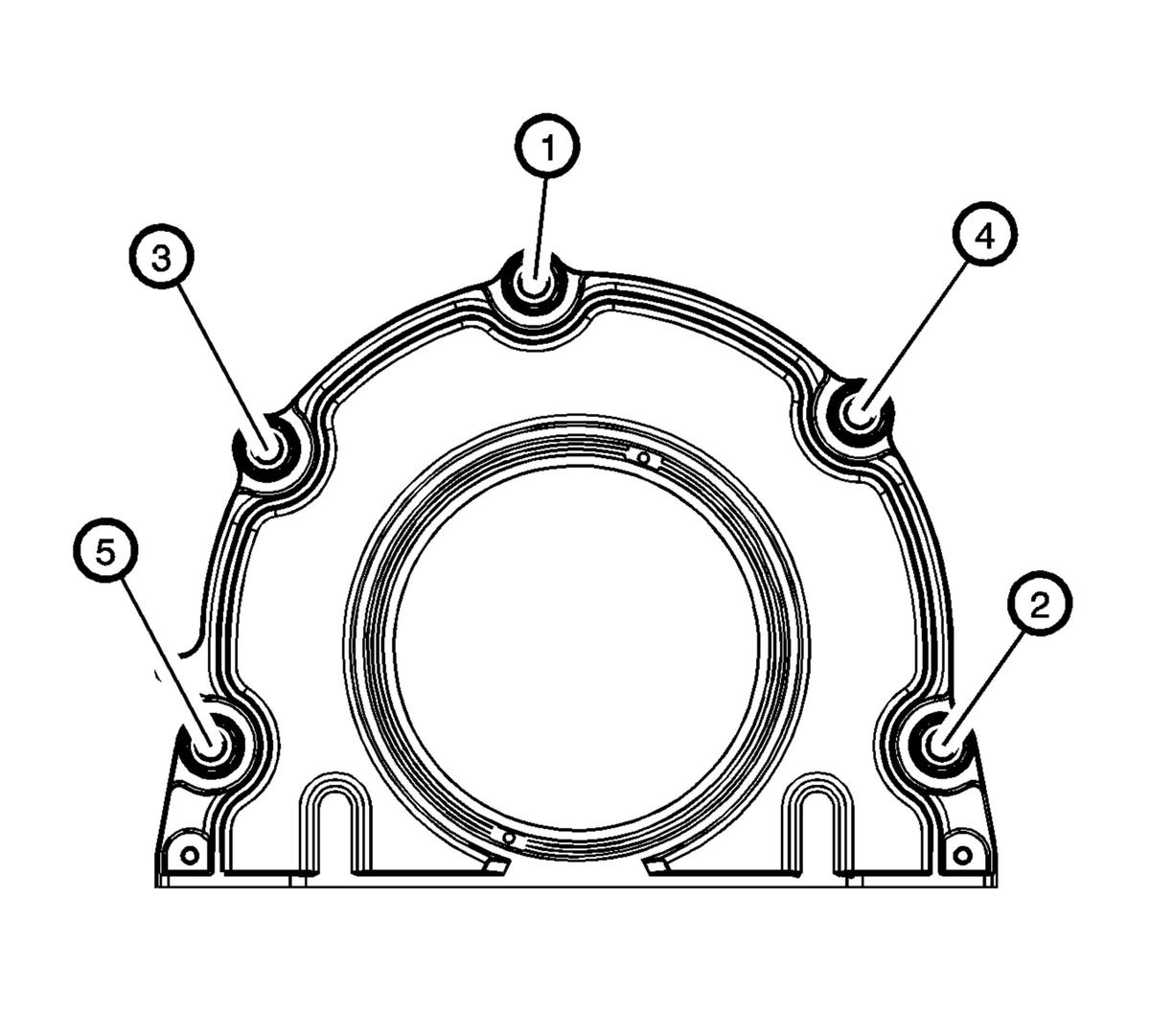

- Tighten the crankshaft rear oil seal housing bolts in sequence and tighten to 10 N.m (89 lb in).

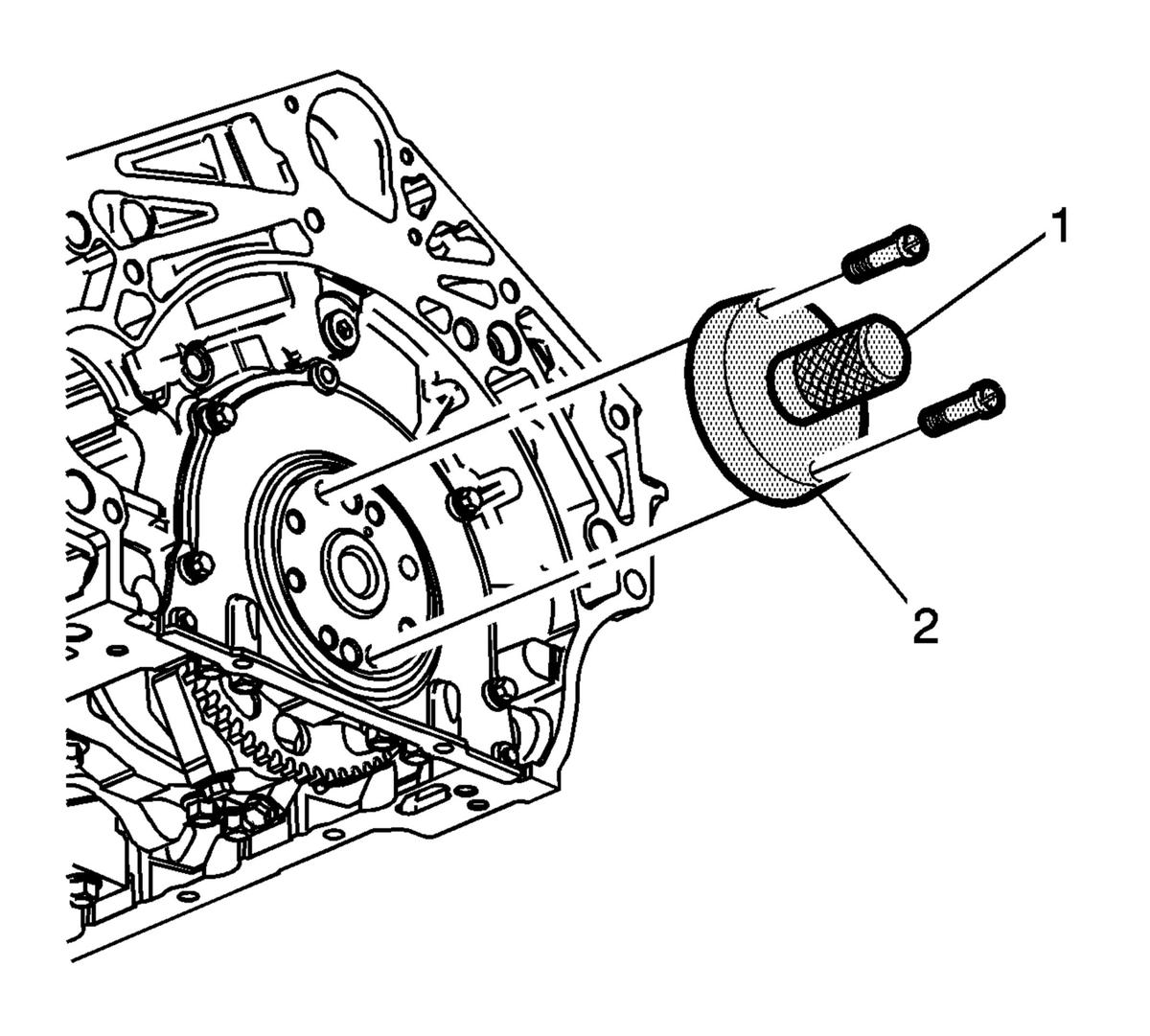

- Remove the EN-47839 tool and EN-42183 handle (1, 2) from the crankshaft flange.
- Install the oil pan. Refer to Oil Pan Replacement .
- If equipped with an automatic transmission, install the flex plate. Refer to Automatic Transmission Flex Plate Replacement .
- If equipped with a manual transmission, install the flywheel. Refer to Engine Flywheel Replacement
NOTE:
DO NOT allow any engine oil on the area where the crankshaft rear oil seal housing is to be installed.
CAUTION:
Refer to Fastener Caution .
