Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install a NEW camshaft cover seal and NEW bolt grommets.
  2. Wipe the camshaft cover sealing surface on the right cylinder head with a clean, lint-free cloth.

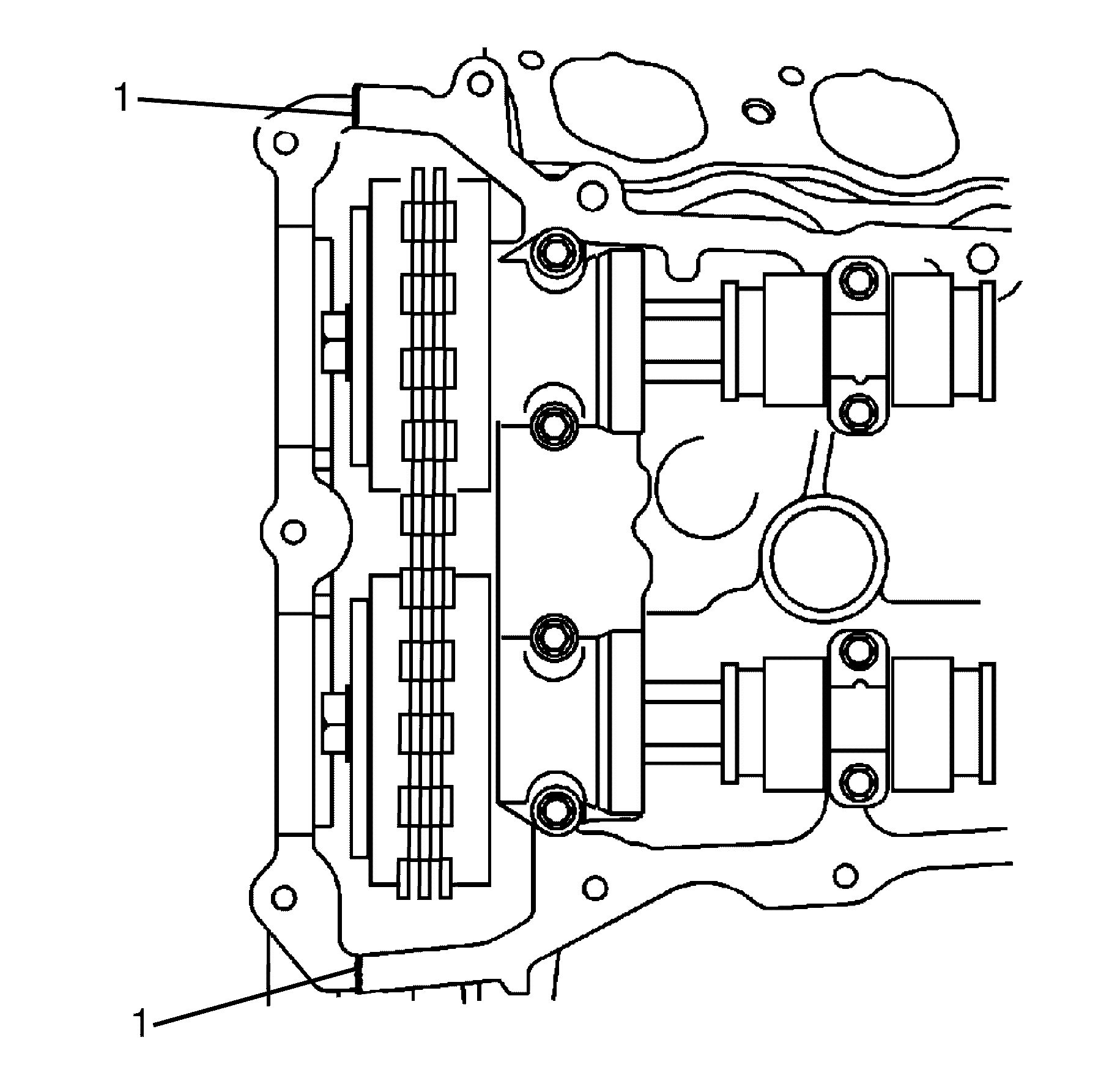

    3. Fig 1: View Of Engine Front Cover Split Lines
    GM1957995Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the sealing surfaces of the cylinder head and camshaft cover are clean.

  3. Place a 3 mm bead of GM approved sealant (1) on the join line between the engine front cover and the cylinder head.

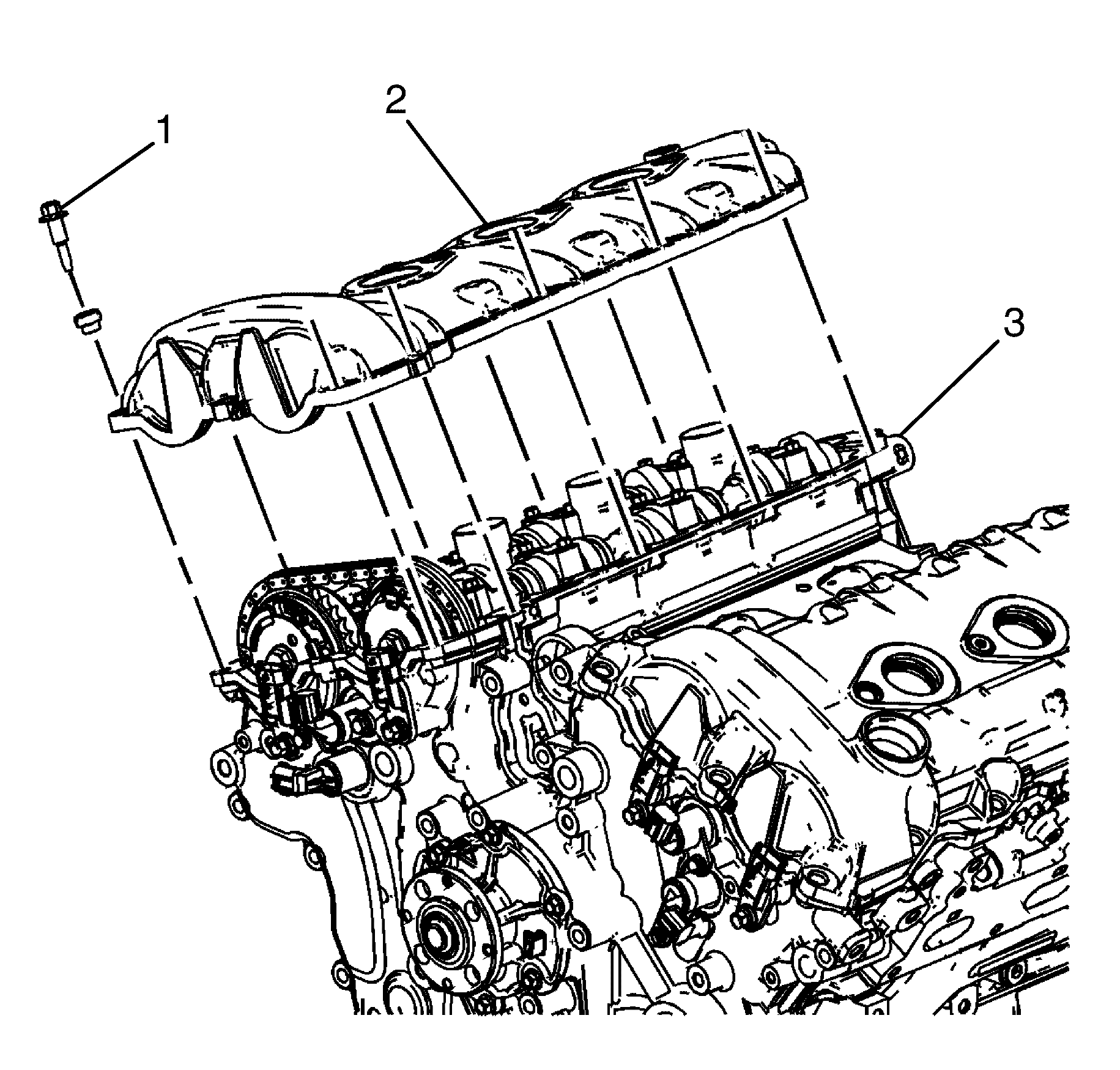

    4. Fig 2: Identifying Right Camshaft Cover With Bolts
    GM1958008Courtesy of GENERAL MOTORS COMPANY
  4. Place the right camshaft cover (2) into position onto the right cylinder head (3).
  5. Loosely install the right camshaft cover bolts (1).

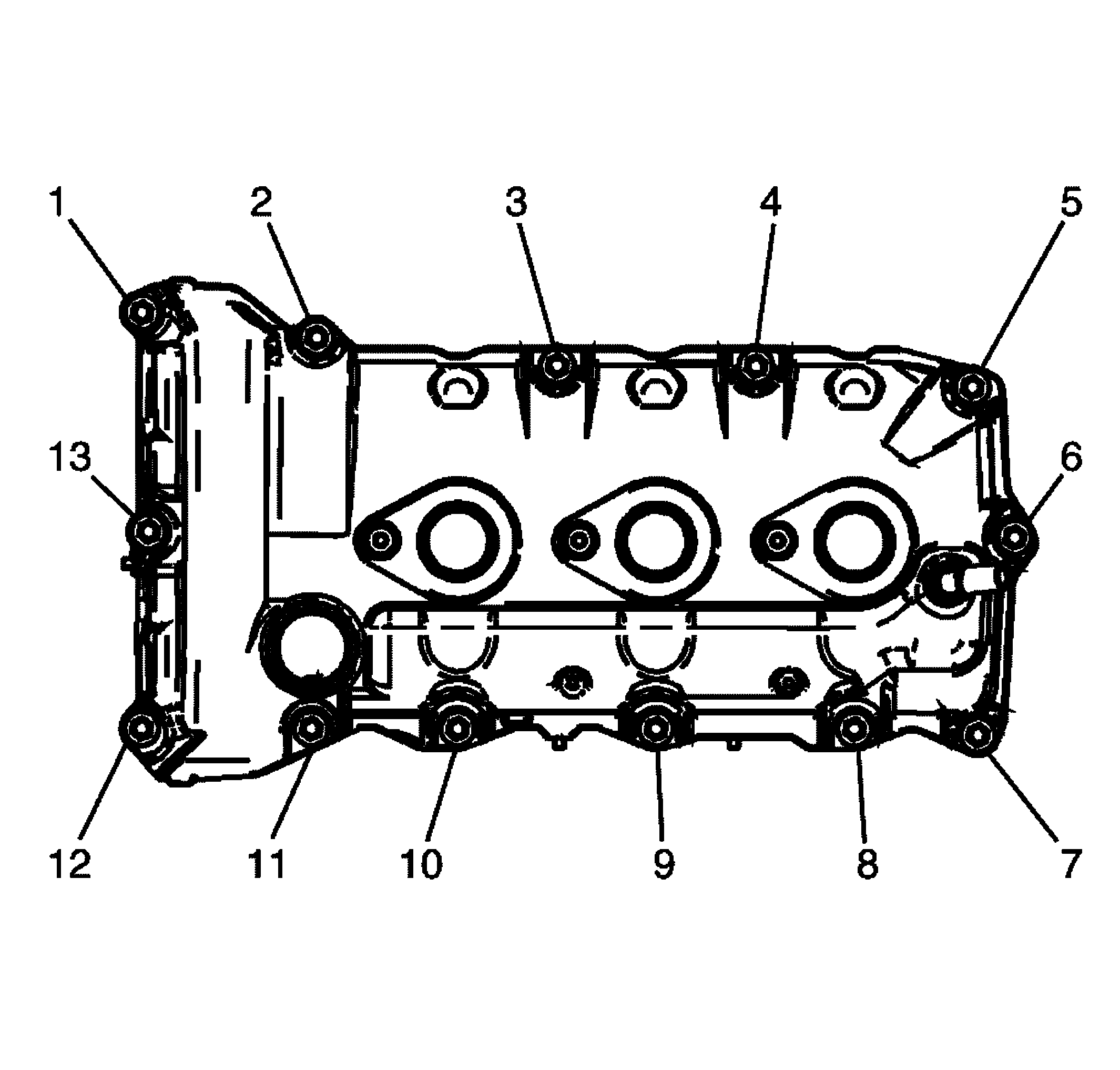

    6. Fig 3: Identifying Left Camshaft Cover To Cylinder Head Retaining Bolt Tightening Sequence
    GM1961757Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  6. Tighten the right camshaft cover to cylinder head retaining bolts in the sequence to 10 N.m (89 lb in).

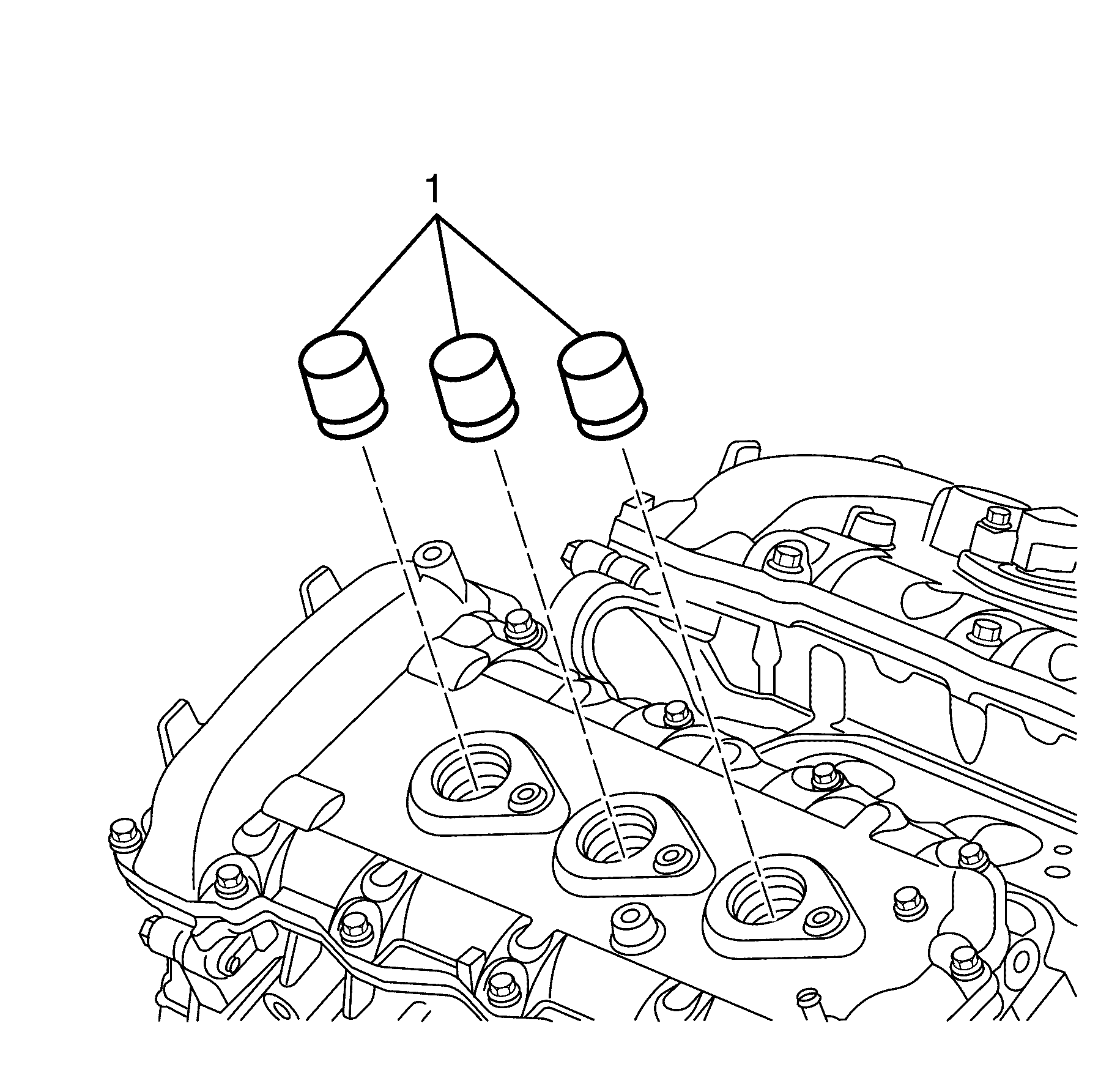

    7. Fig 4: View Of EN-46101
    GM1961747Courtesy of GENERAL MOTORS COMPANY
  7. Remove the spark plug tube plugs EN 46101  spark plug tube seal guide (1) from the spark plug tubes of the right cylinder head.

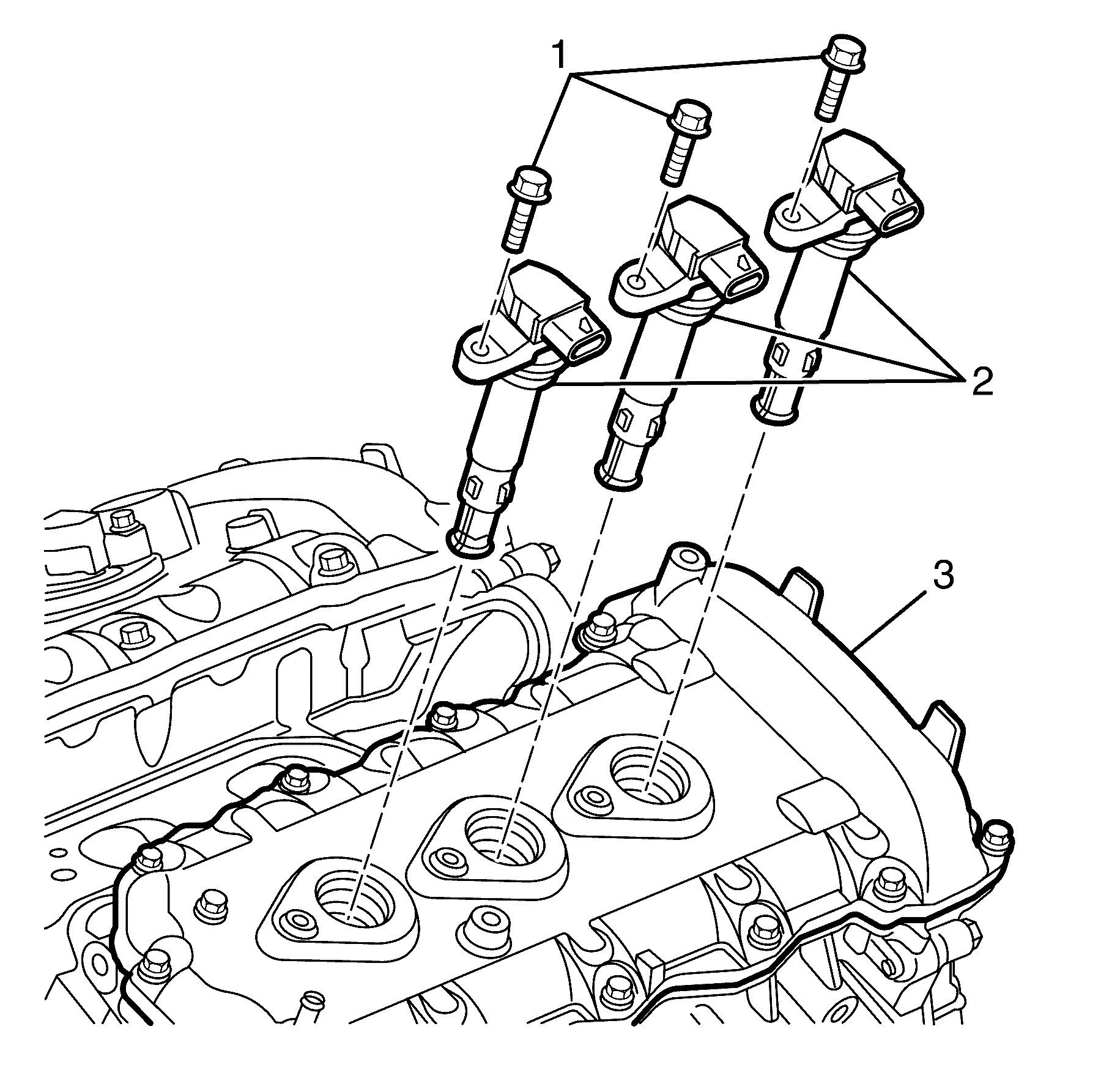

    8. Fig 5: Identifying Ignition Coil To Camshaft Cover Retaining Bolts
    GM1957992Courtesy of GENERAL MOTORS COMPANY
  8. Install the ignition coils (2) to the camshaft cover (3).
  9. Install the ignition coil to camshaft cover retaining bolts (1) and tighten to 10 N.m (89 lb in).

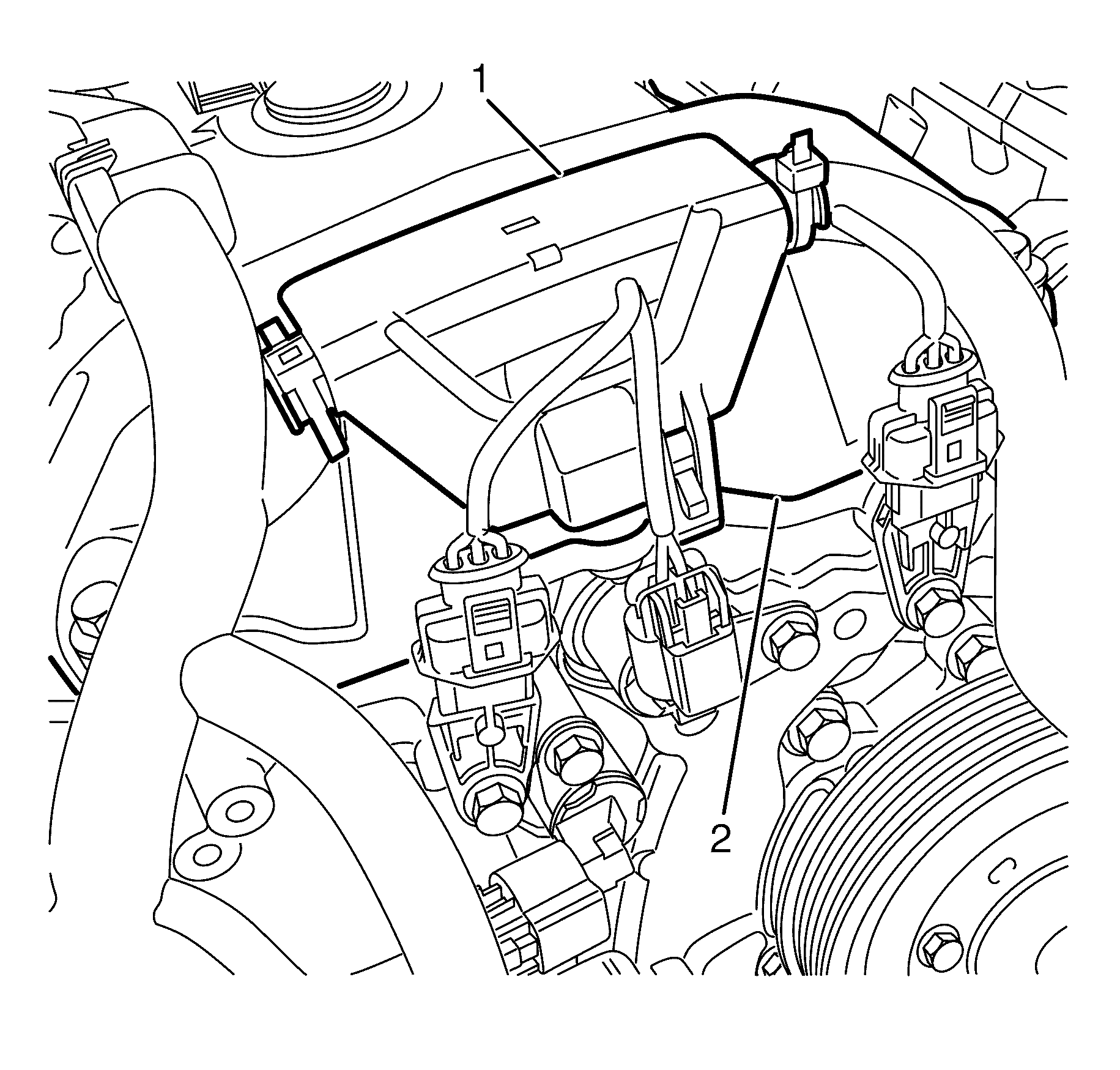

    10. Fig 6: Identifying Wiring Harness & Camshaft Cover
    GM1957998Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Ensure the wiring harness (1) is located on the locating lugs of the camshaft cover (2).
    • Listen for an audible click to confirm the correct installation of the wiring harness (1) to the camshaft cover (2).
  10. Install the wiring harness (1) to the front of the camshaft cover (2).

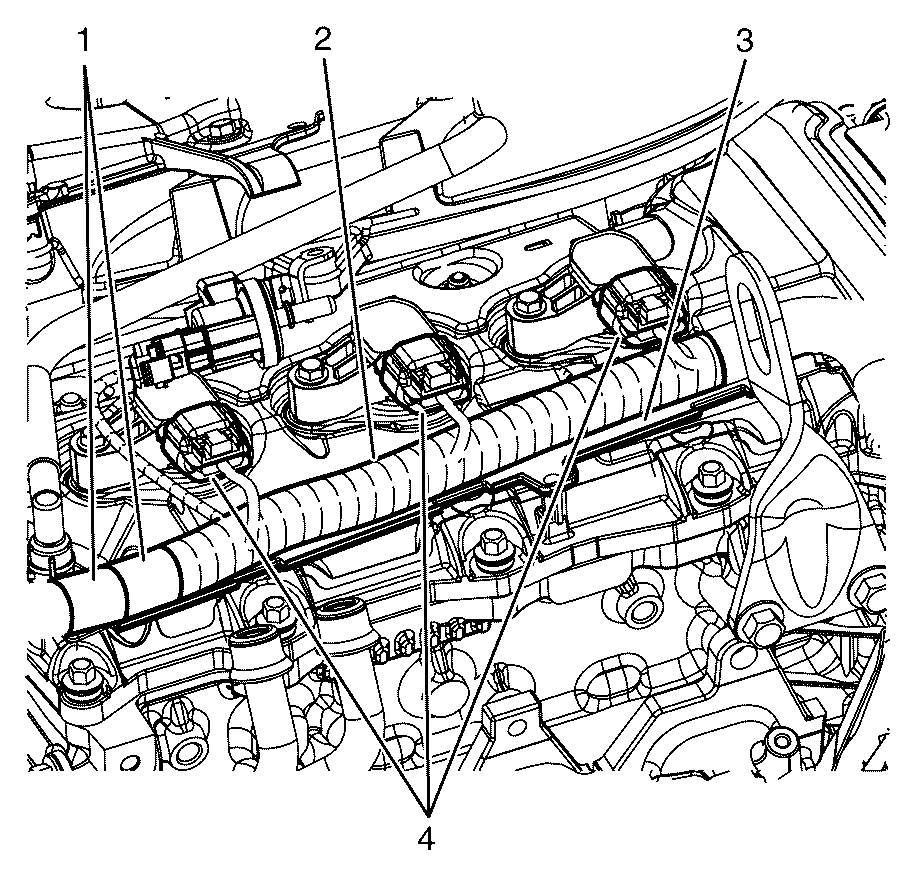

    11. Fig 7: Ignition Coil Electrical Connectors & Wiring Harness
    GM2178789Courtesy of GENERAL MOTORS COMPANY
  11. Install the engine wiring harness (2) to the camshaft cover.
    12. NOTE:
    • After connecting the ignition coil connectors ensure that the ignition coil electrical connectors are locked to the ignition coils.
    • Do not damage the ignition coil electrical connectors.
  12. Connect the ignition coil electrical connectors (4) to the ignition coils.
    13. Fig 8: Intake Manifold, Bolts & Gasket
    GM2667626Courtesy of GENERAL MOTORS COMPANY
  13. Install the intake manifold (2). Refer to Intake Manifold Replacement .
  14. Install the positive crankcase ventilation tubes. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement .
    15. Fig 9: Intake Manifold Cover & Retainers
    GM2667617Courtesy of GENERAL MOTORS COMPANY
  15. Install the rear intake manifold cover (2).
  16. Install the rear intake manifold cover retainers (1).
    17. Fig 10: Intake Manifold Cover & Cap
    GM2667623Courtesy of GENERAL MOTORS COMPANY
  17. Install the intake manifold cover (2). Refer to Intake Manifold Cover Replacement - Front .
  18. Connect the battery ground cable to the battery. Refer to Battery Negative Cable Disconnection and Connection .
