Evaporative Emission Line Replacement - Chassis to Canister

WARNING: This page is about a different variant/trim than selected.

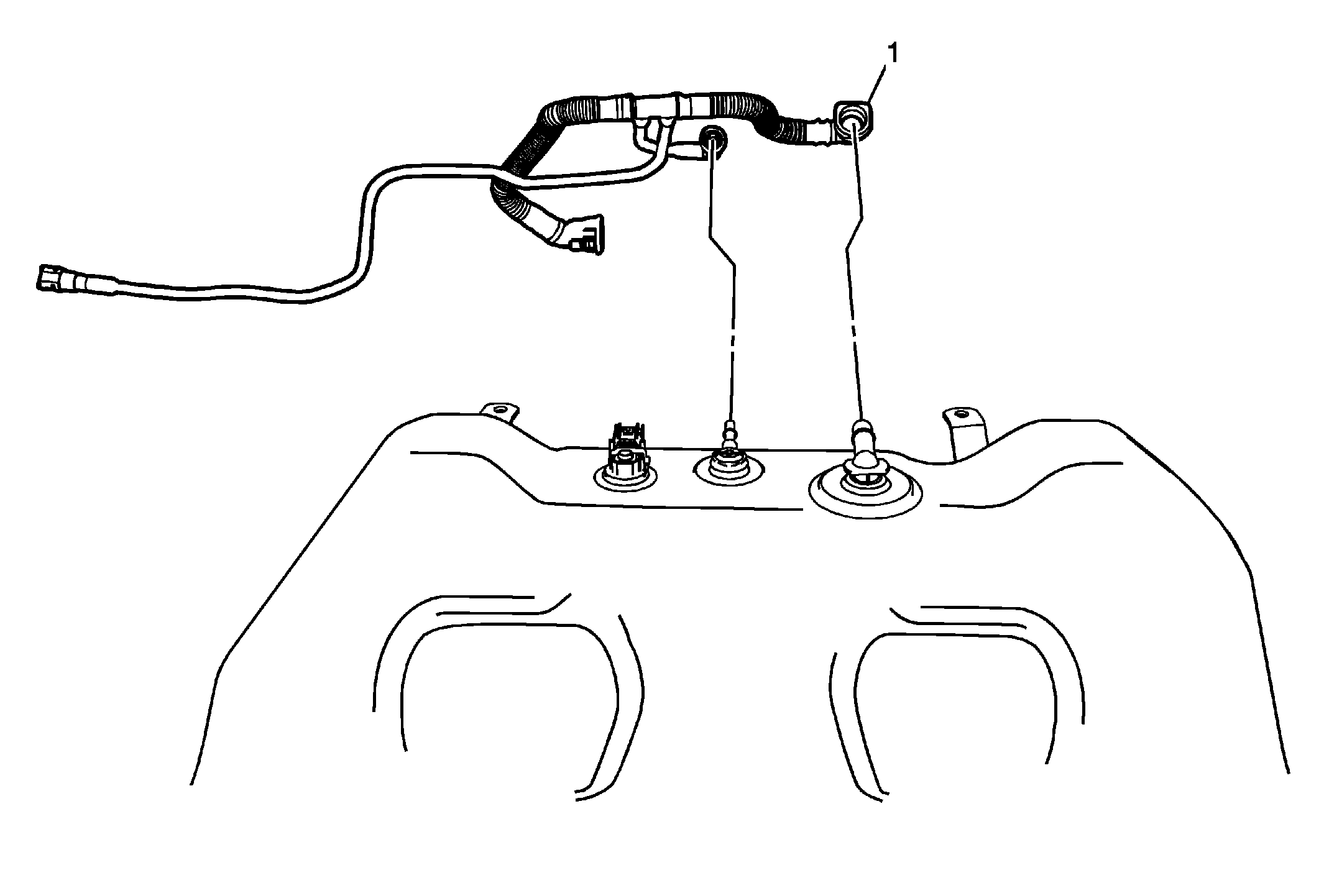

Fig 1: Evaporative Emission Line - Chassis to Canister

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement . Disconnect the quick connects. Refer to Plastic Collar Quick Connect Fitting Service .
1	Fuel Tank Fill Evaporative Emission Valve Hose

Callout

Component Name

Preliminary Procedure

Remove the fuel tank. Refer to Fuel Tank Replacement .
Disconnect the quick connects. Refer to Plastic Collar Quick Connect Fitting Service .

Fuel Tank Fill Evaporative Emission Valve Hose
