Installation Procedure
WARNING: This page is about a different variant/trim than selected.

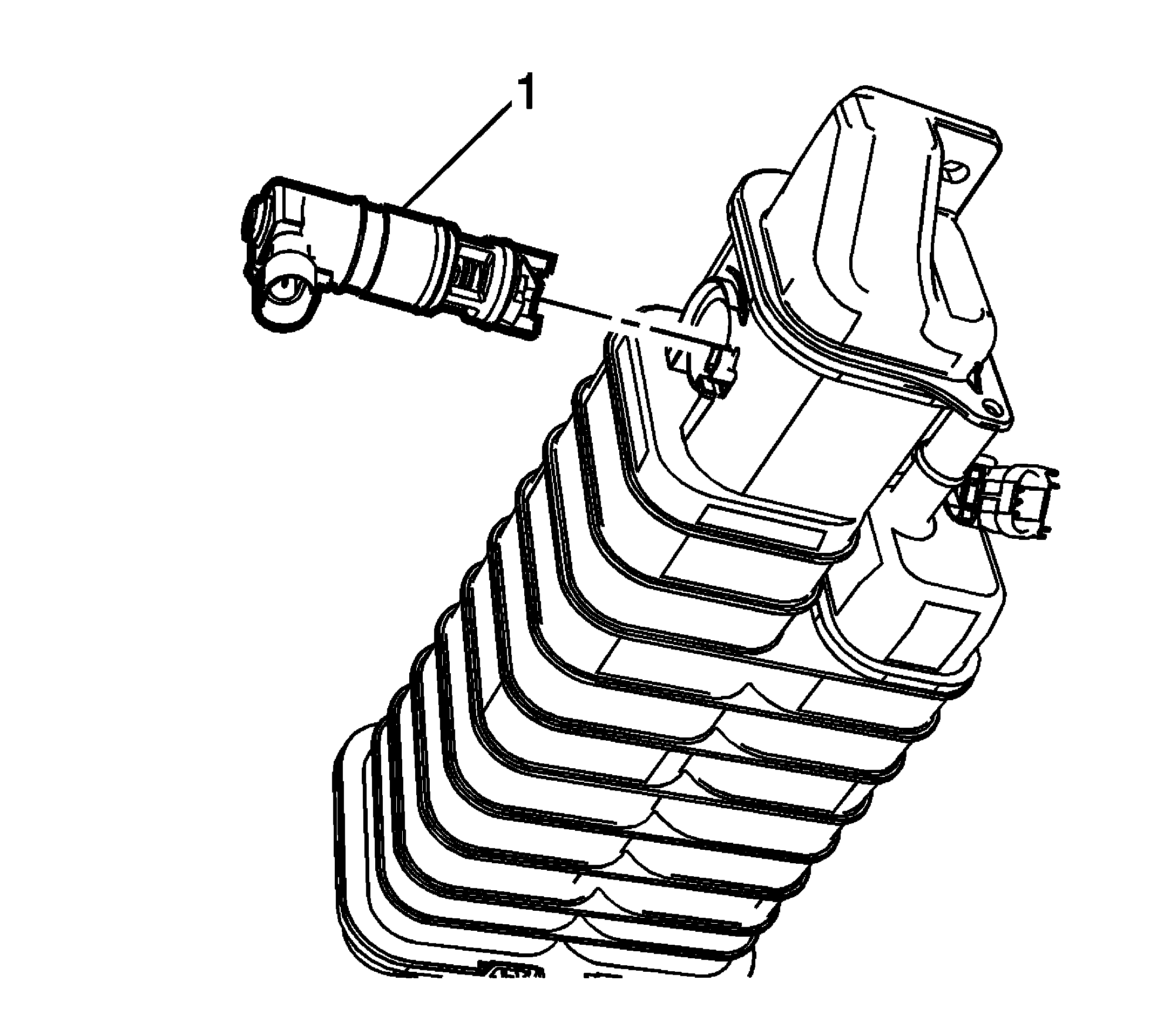

- Insert the EVAP canister vent valve into the EVAP canister.
- Twist the EVAP canister vent valve clockwise into the locked position.
- Connect the electrical connector to the EVAP canister vent valve.
- Reposition the EVAP canister to the body and install the bolts and tighten to 6 N.m (53 lb in).
- Install the exhaust system. Refer to Exhaust Muffler with Resonator, Exhaust, and Tail Pipe Replacement (LFX Convertible) , Exhaust Muffler with Resonator, Exhaust, and Tail Pipe Replacement (L99,LS3,LFX) , Exhaust Muffler with Resonator, Exhaust, and Tail Pipe Replacement (Performance Exhaust (NPP)) .
