Evaporative Emission Canister Purge Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

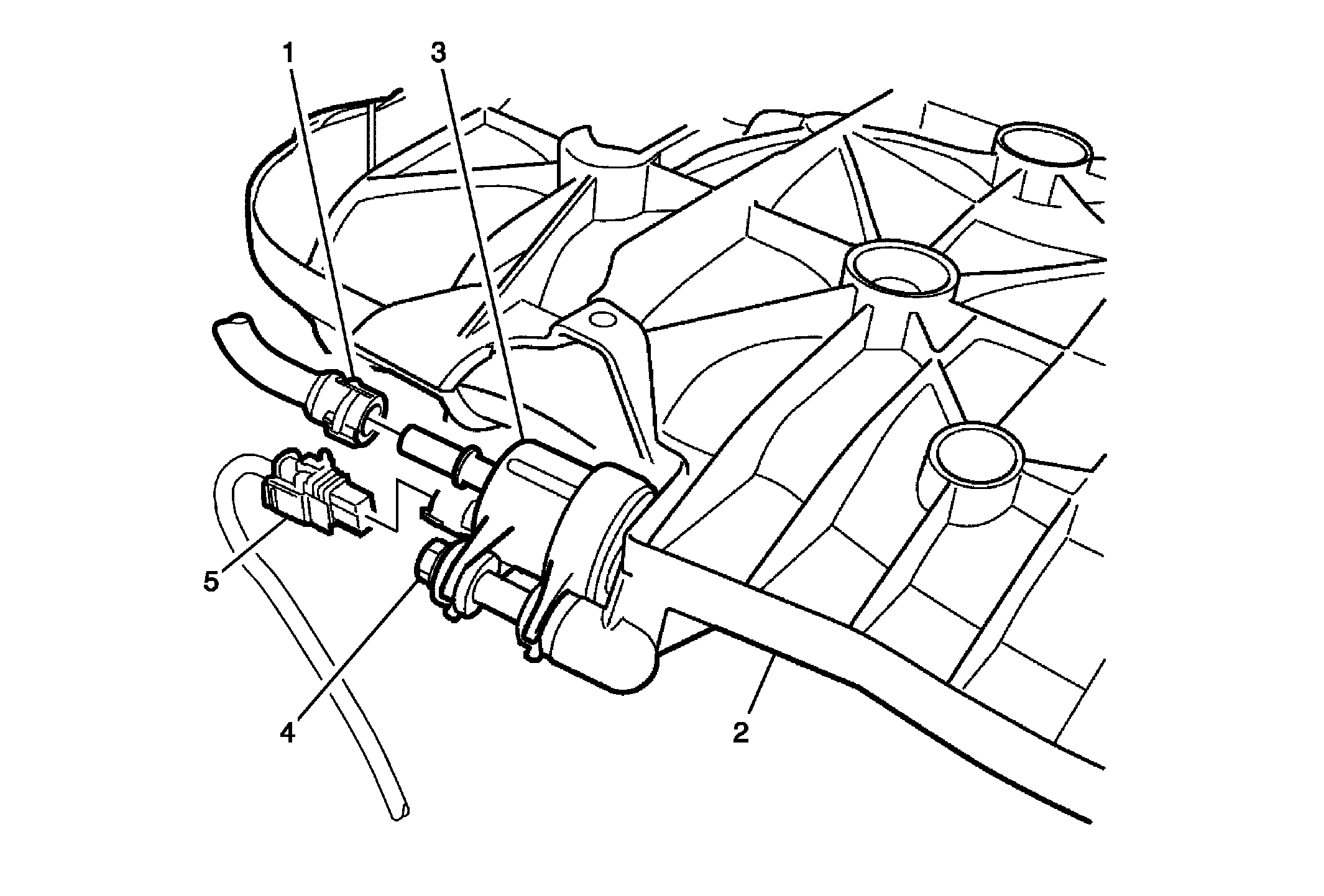

Fig 1: Evaporative Emission Canister Purge Solenoid Valve & Components
GM2282081Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 EVAP Emission Canister Purge Solenoid Valve Hose
2 Intake Manifold
3 Evaporative Emission Canister Purge Solenoid Valve

Procedure

  1. Detach the emission canister purge solenoid valve from the intake manifold.
  2. Install a NEW O-ring.
4 EVAP Emission Canister Purge Solenoid Valve to Intake Manifold Retaining Bolt
CAUTION:

Refer to Fastener Caution


Tighten
10 N.m (89 lb in)
5 EVAP Emission Canister Purge Solenoid Valve Electric Harness Connector
