Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Ignition OFF.
  2. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .

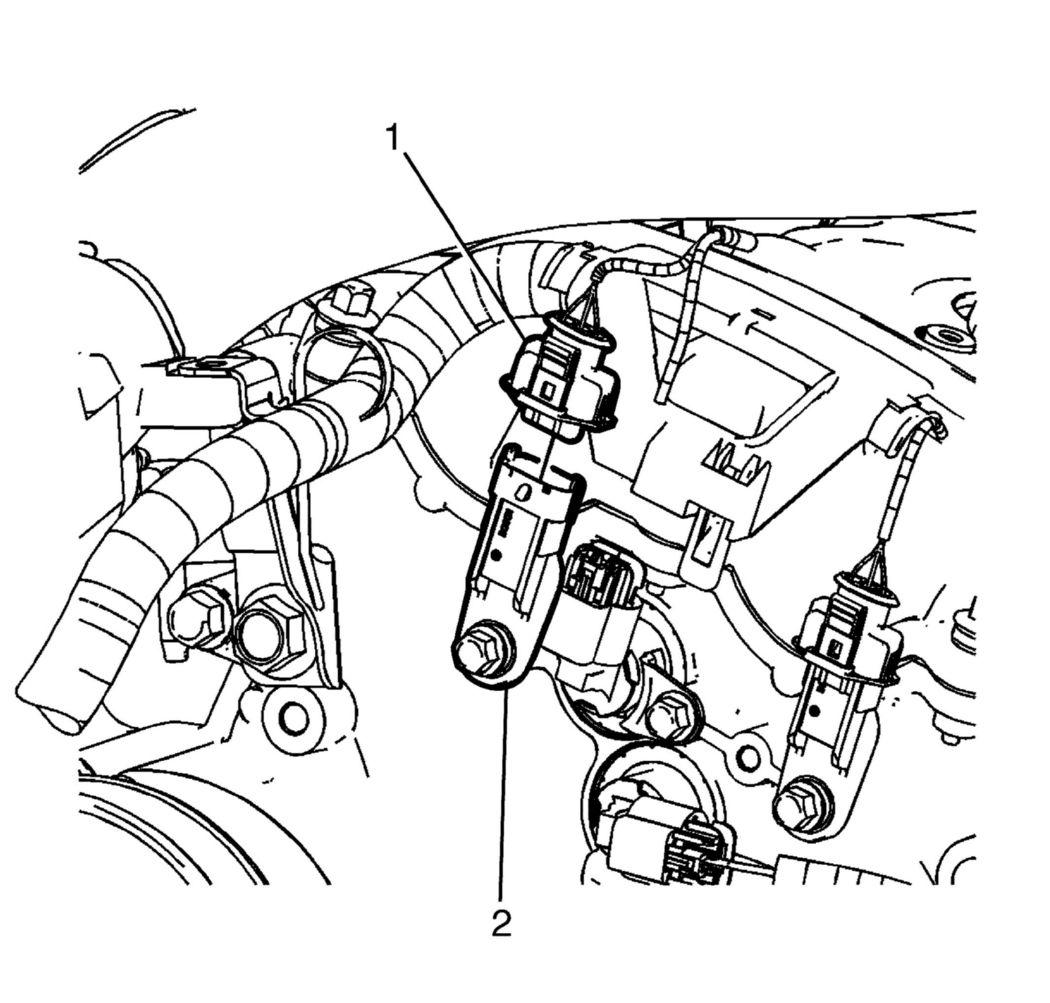

    3. Fig 1: Identifying CMP Sensor & Electrical Connector
    GM1949776Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Safety Glasses Warning .

  3. Use compressed air to remove debris from the CMP sensor and surrounding cavities.
  4. Remove the camshaft position (CMP) sensor electrical connector (1) from the CMP sensor (2).

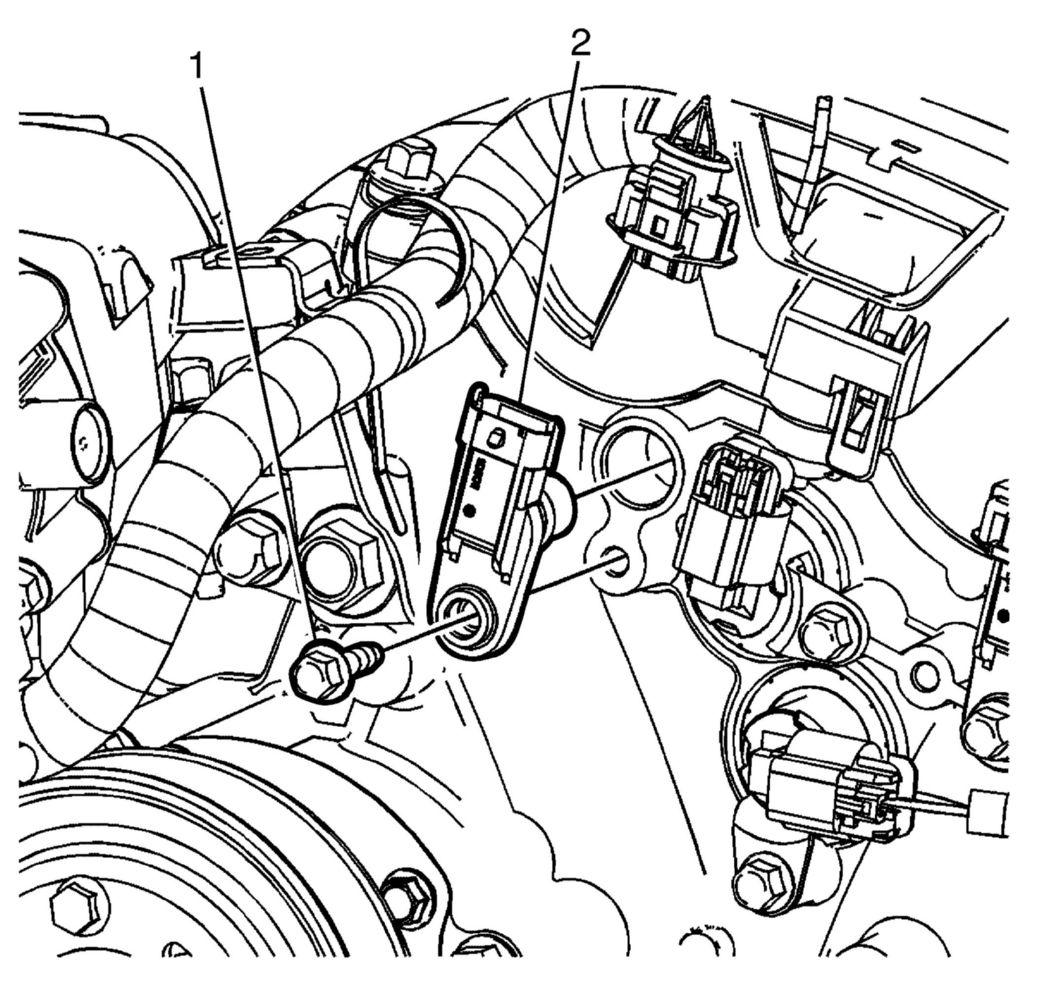

    5. Fig 2: Identifying CMP Sensor To Engine Front Cover Retaining Bolt
    GM1949777Courtesy of GENERAL MOTORS COMPANY
  5. Remove the CMP sensor to engine front cover retaining bolt (1).
  6. Remove the CMP sensor (2) from the engine.
