Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Inspect the CMP actuator valve seal for damage. Replace the seal if necessary.

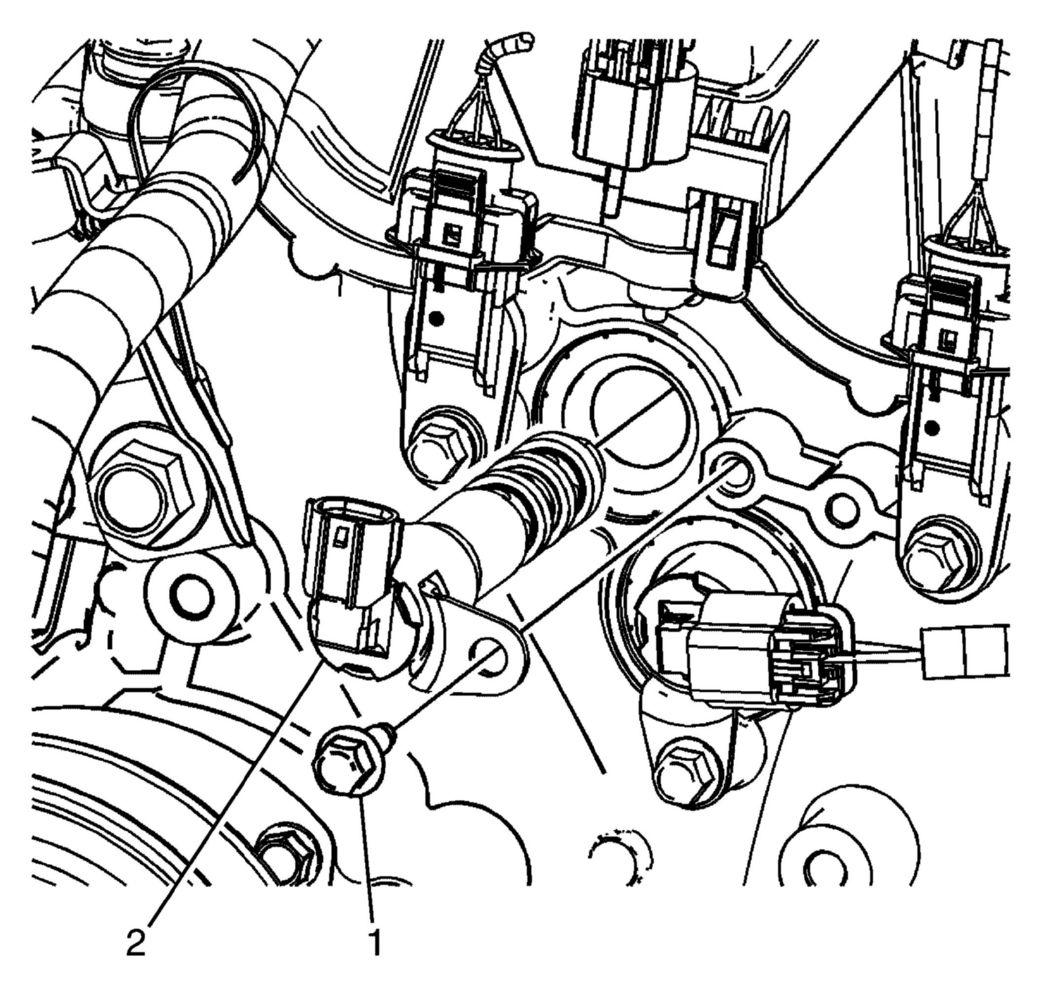

    2. Fig 1: Identifying CMP Actuator Solenoid Valve To Engine Front Cover Retaining Bolt
    GM1949762Courtesy of GENERAL MOTORS COMPANY
  2. Install the CMP actuator valve (2) to the engine front cover.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the CMP actuator solenoid valve to engine front cover retaining bolt (1) and tighten to 9 N.m (80 lb in).

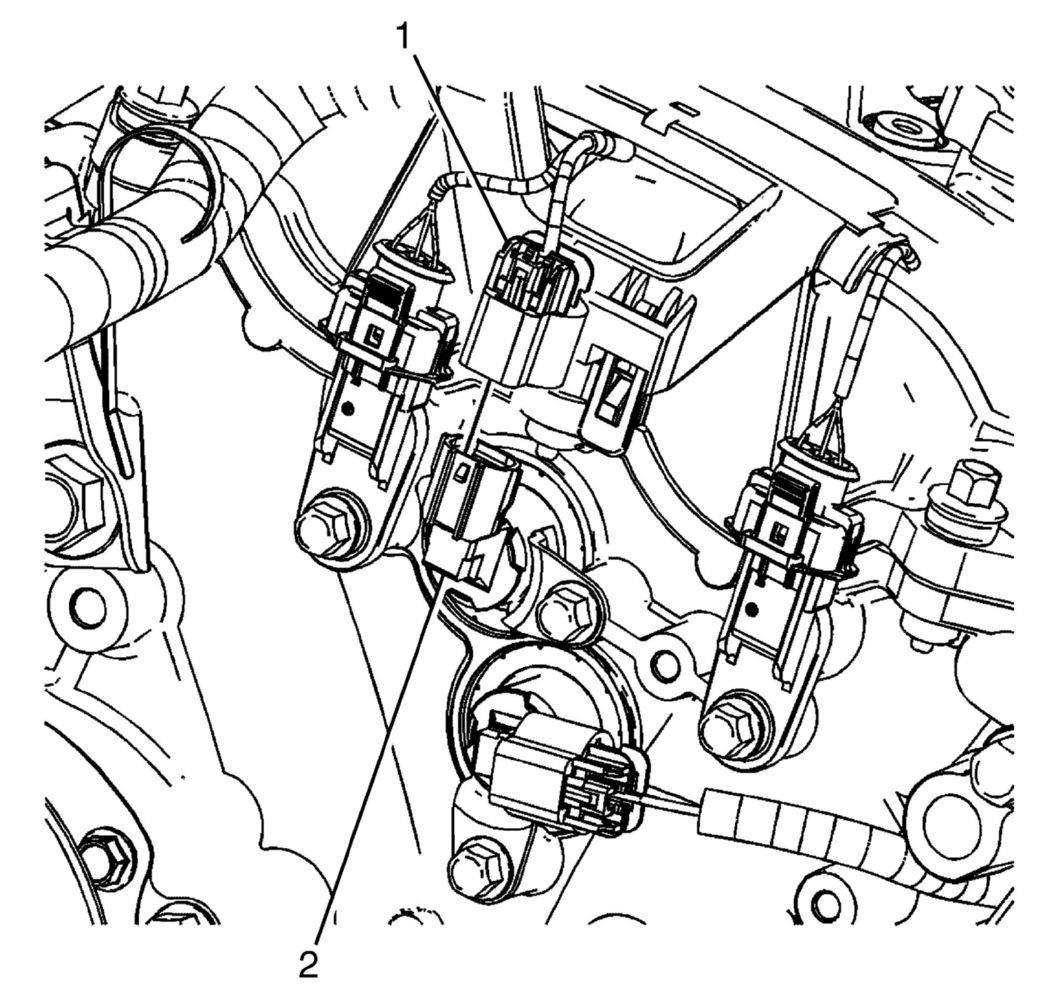

    4. Fig 2: Identifying CMP Actuator Valve & Electrical Connector
    GM1949761Courtesy of GENERAL MOTORS COMPANY
  4. Install the CMP actuator valve electrical connector (1) to the CMP actuator valve (2).
  5. Install the power steering fluid reservoir. Refer to Power Steering Fluid Reservoir Replacement .
