Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Inspect the CMP actuator valve seal for damage. Replace the seal if necessary.

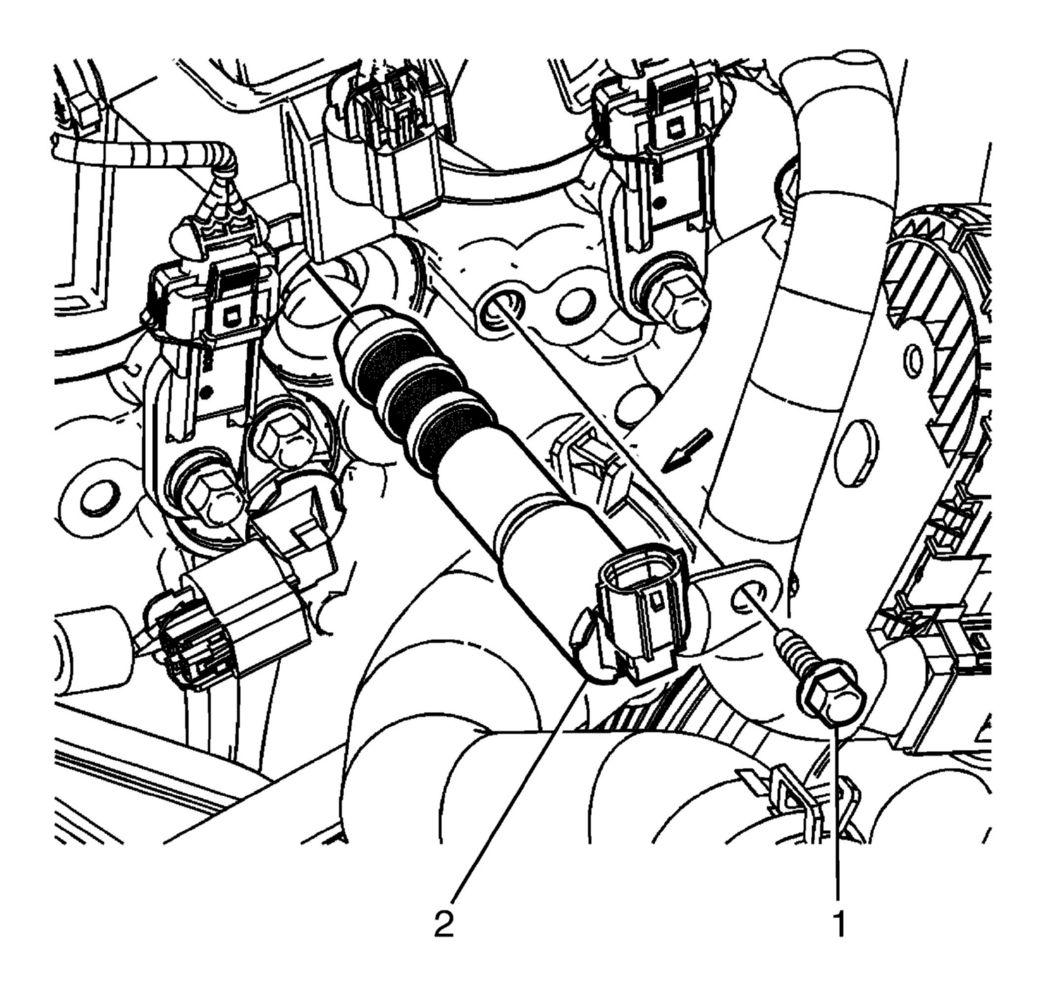

    2. Fig 1: Identifying CMP Actuator Solenoid Valve To Engine Front Cover Retaining Bolt
    GM1949757Courtesy of GENERAL MOTORS COMPANY
  2. Install the CMP actuator valve (2) to the engine front cover.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the CMP actuator solenoid valve to engine front cover retaining bolt (1) and tighten to 9 N.m (80 lb in).

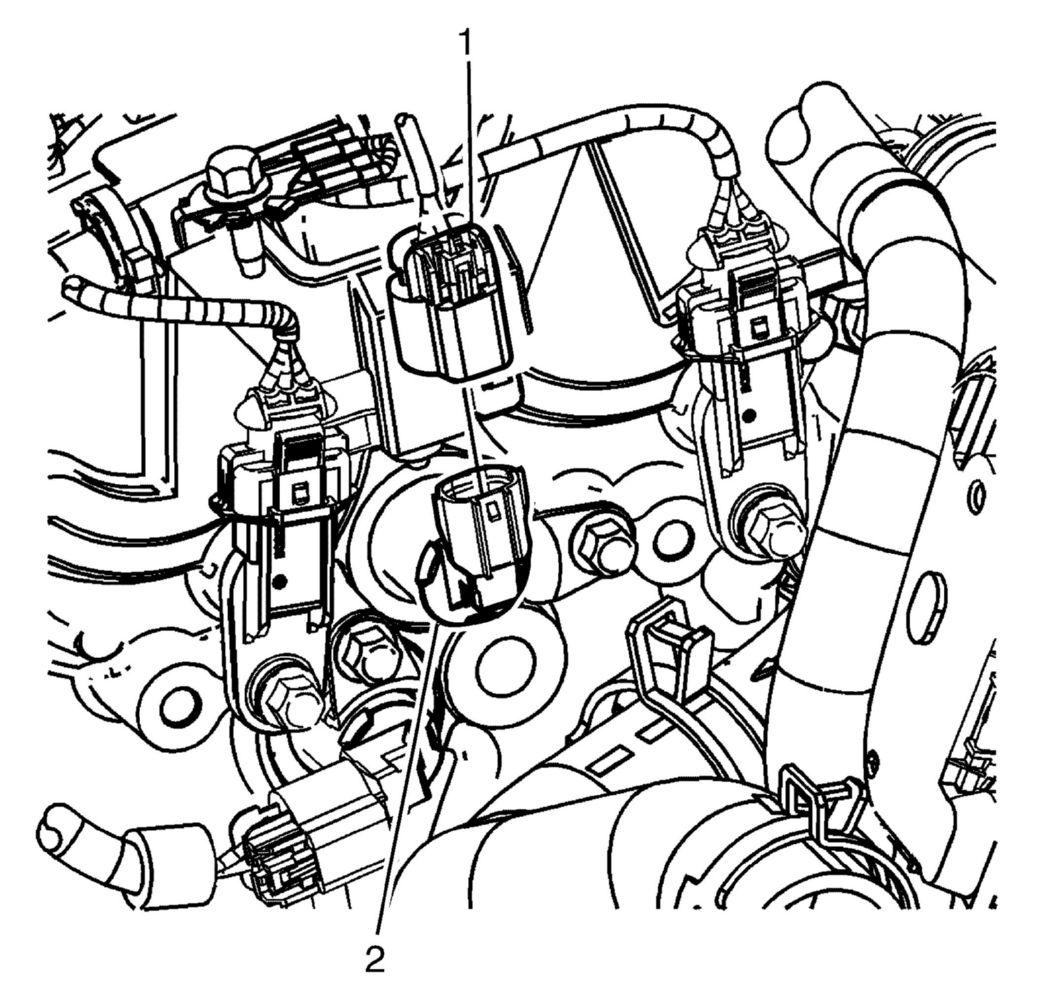

    4. Fig 2: Identifying CMP Sensor & Actuator Valve Electrical Connector
    GM1949756Courtesy of GENERAL MOTORS COMPANY
  4. Install the CMP actuator valve electrical connector (1) to the CMP sensor (2).
  5. Install the power brake booster auxiliary pump. Refer to Power Brake Booster Auxiliary Pump Replacement .
