Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Inspect the CMP actuator valve seal for damage. Replace the seal if necessary.

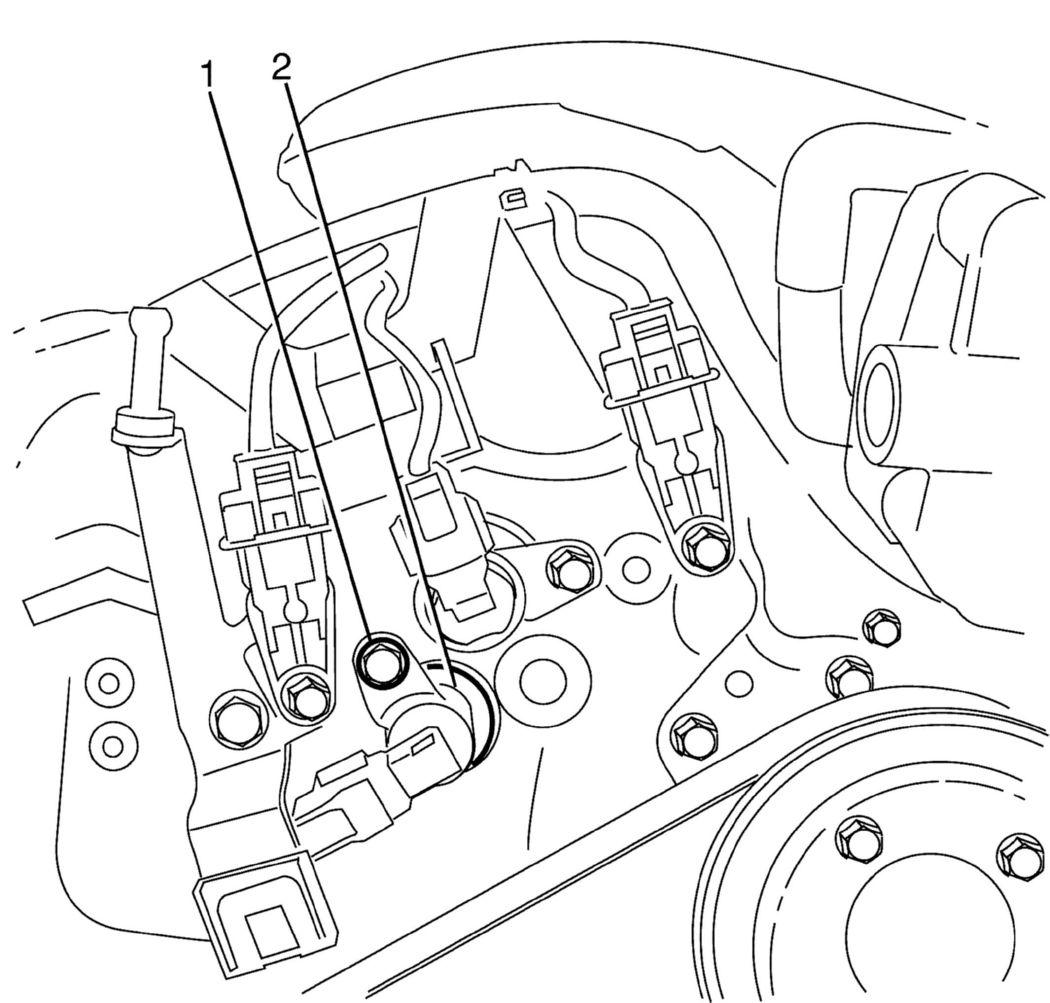

    2. Fig 1: Identifying CMP Actuator Solenoid Valve To Engine Front Cover Retaining Bolt
    GM1949753Courtesy of GENERAL MOTORS COMPANY
  2. Install the CMP actuator valve (2) to the engine front cover.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the CMP actuator solenoid valve to engine front cover retaining bolt (1).

    Tighten

    Tighten the bolt to 9 N.m (80 lb in).

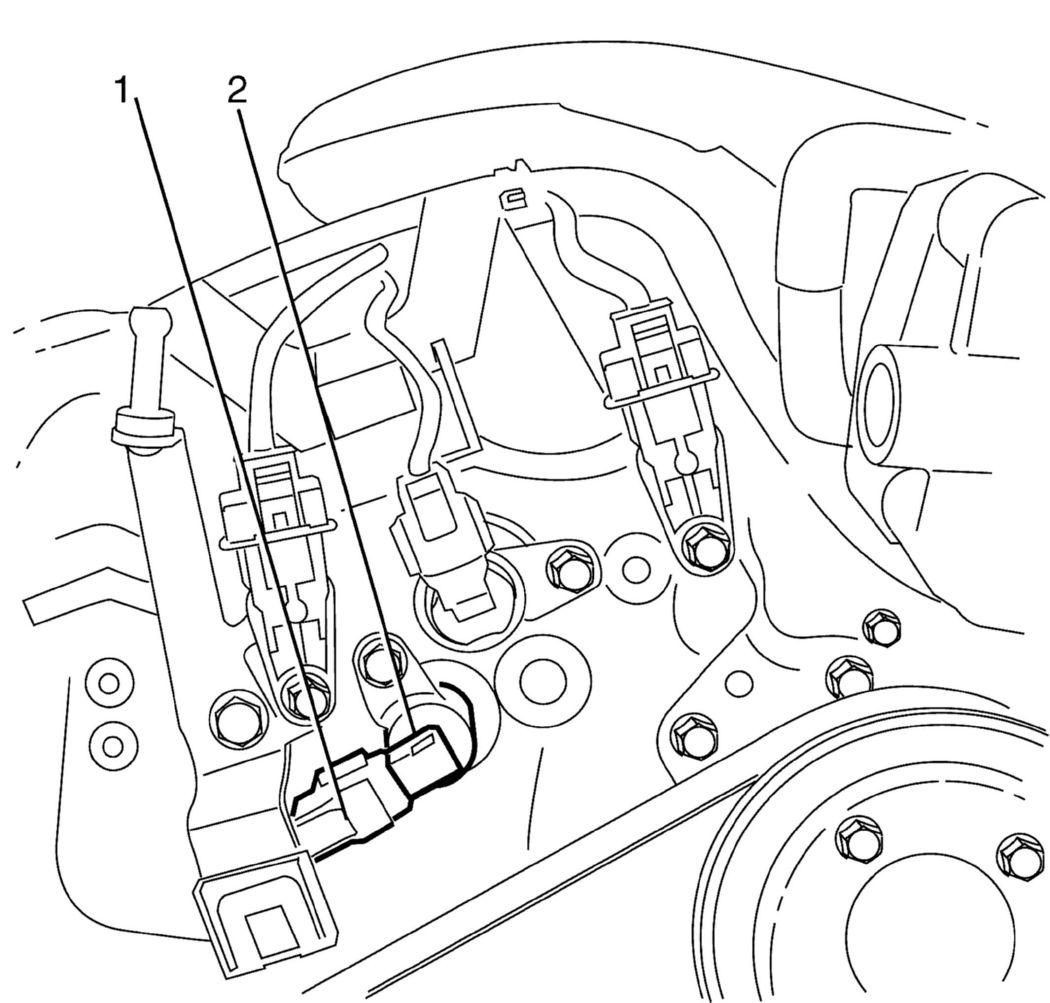

    4. Fig 2: Identifying CMP Actuator Valve & Electrical Connector
    GM1949750Courtesy of GENERAL MOTORS COMPANY
  4. Install the CMP valve electrical connector (1) to the CMP actuator valve.
  5. Install the power brake booster auxiliary pump. Refer to Power Brake Booster Auxiliary Pump Replacement .
