Section 13 (Engine Mechanical - 3.6L - Wiring Schematics And Timing Chain Routing Diagrams)
>>
Wiring Schematics And Timing Chain Routing Diagrams
>>
Engine Mechanical Wiring Schematics
>>
Engine Oil Level
Engine Oil Level
WARNING:
This page is about a different variant/trim than selected.

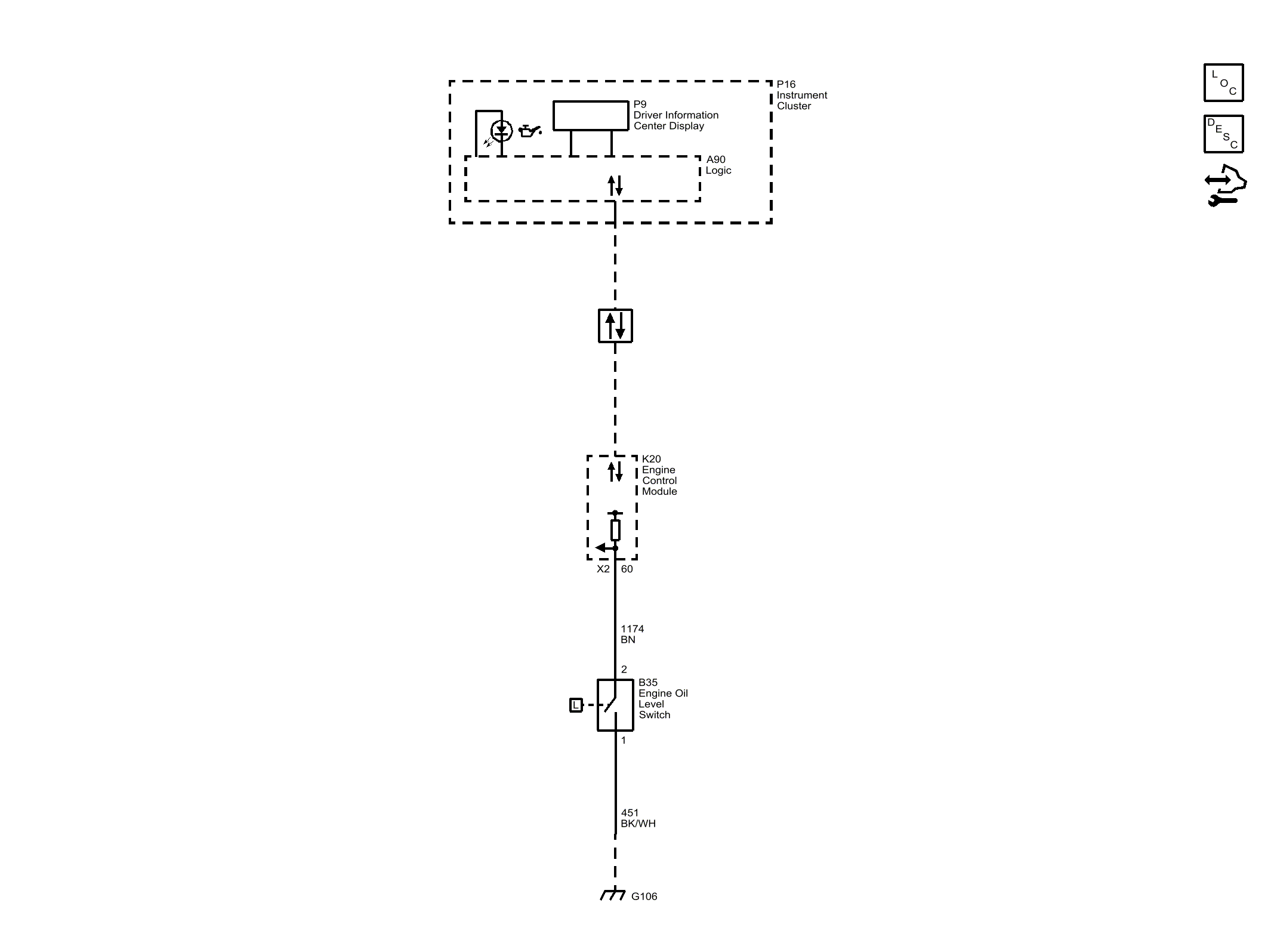

Fig 1: Engine Oil Level
Courtesy of GENERAL MOTORS COMPANY
