Water Outlet Removal

WARNING: This page is about a different variant/trim than selected.

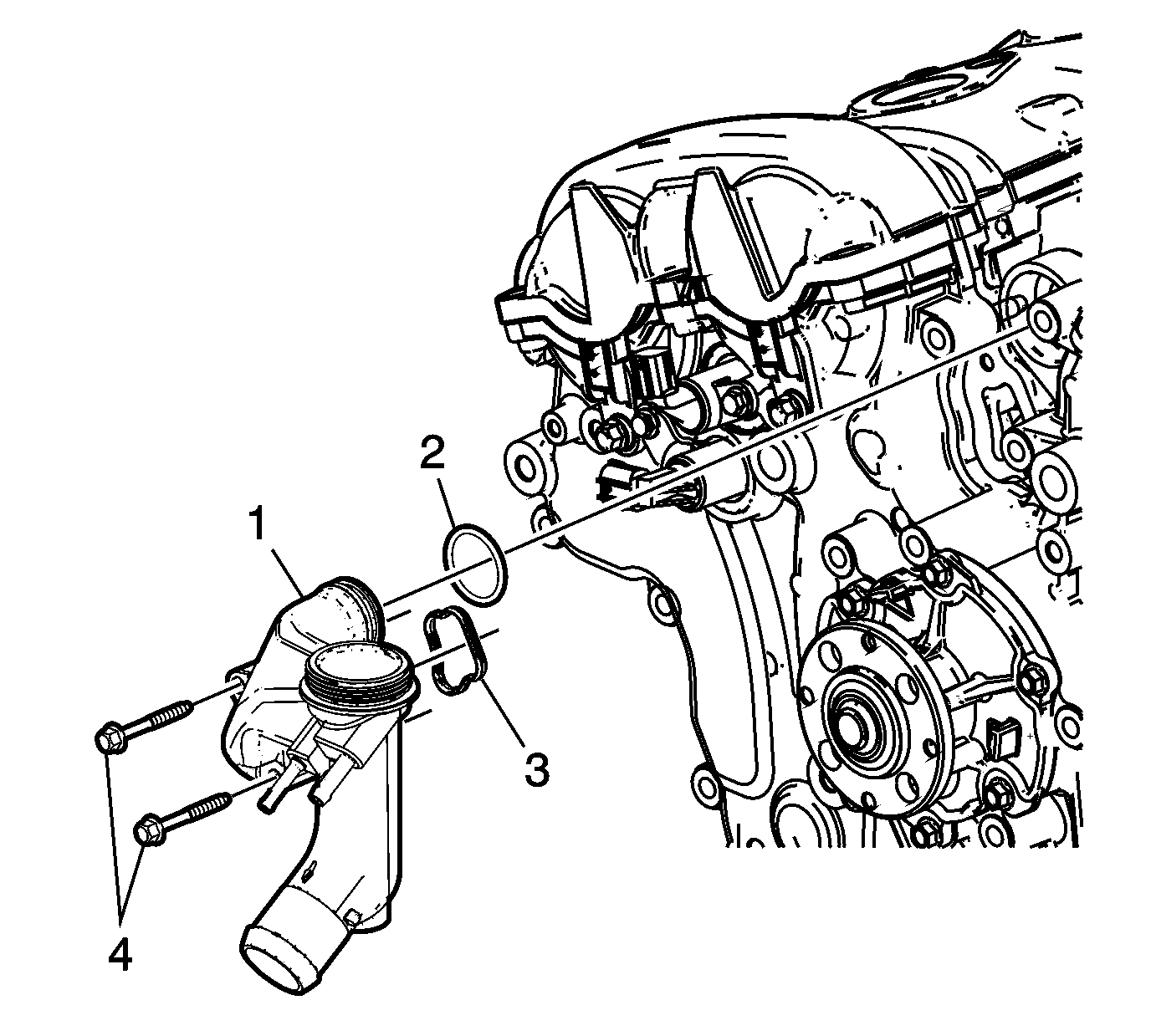

    Fig 1: Water Outlet Components
    GM2208534Courtesy of GENERAL MOTORS COMPANY
  1. Remove the water outlet bolts (4).
  2. Remove the water outlet (1).
  3. Remove and discard the water outlet gasket (3).
  4. Remove and discard the water outlet O-ring seal (2).
