Inspection Procedure

WARNING: This page is about a different variant/trim than selected.

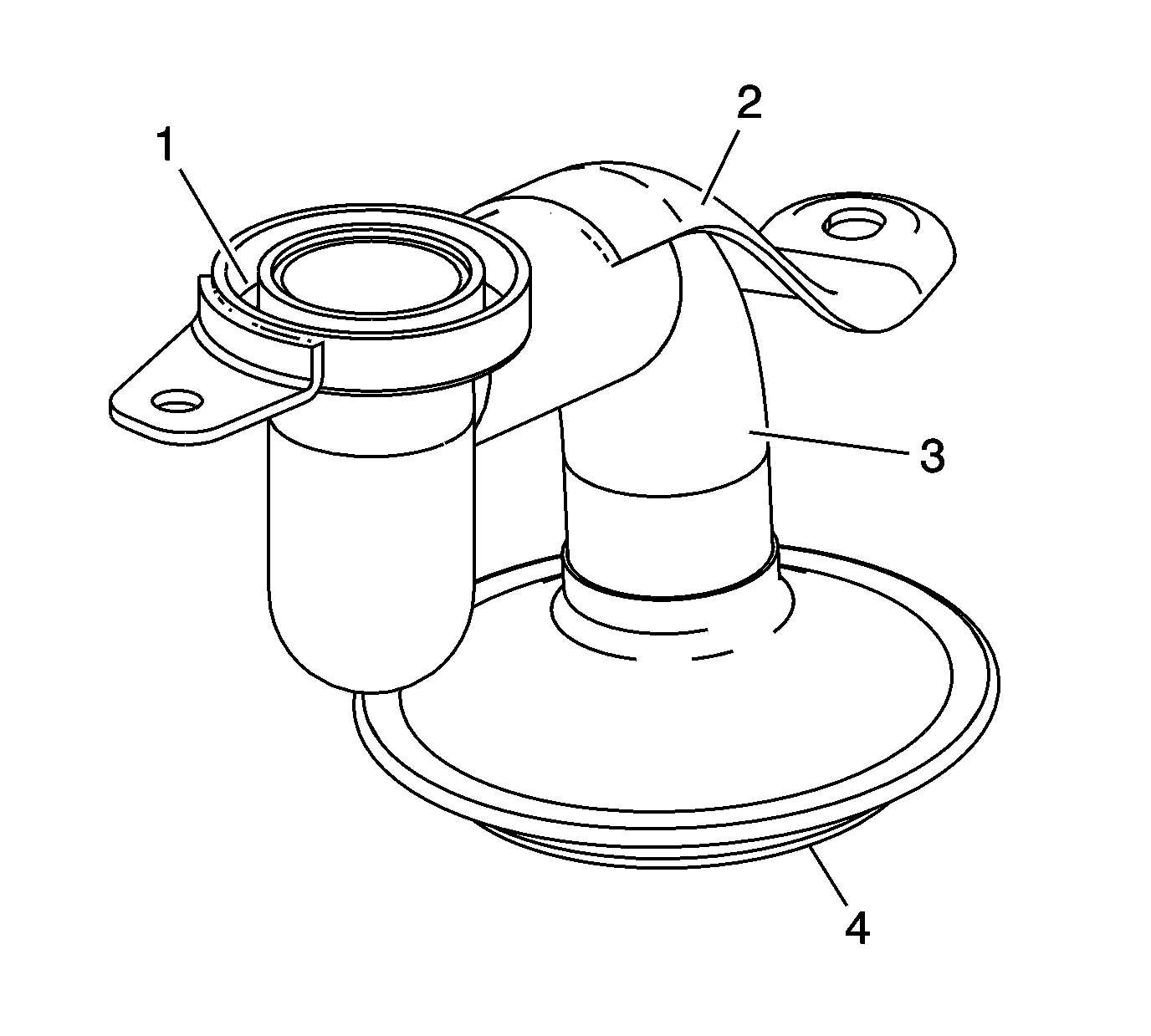

    Fig 1: Oil Pump Suction Pipe & Screen
    GM2208542Courtesy of GENERAL MOTORS COMPANY
  1. Inspect the mounting surface (1) for possible leakage paths.
  2. Inspect the oil pump pipe tube (3) for cracks, imperfections and/or damage.
  3. Inspect the oil pump pipe support bracket (2) for cracks or damage.
  4. Inspect the oil pump screen (4) for blockage, foreign material, tears, cracks and/or damage.
