Oil Pan Disassemble

WARNING: This page is about a different variant/trim than selected.

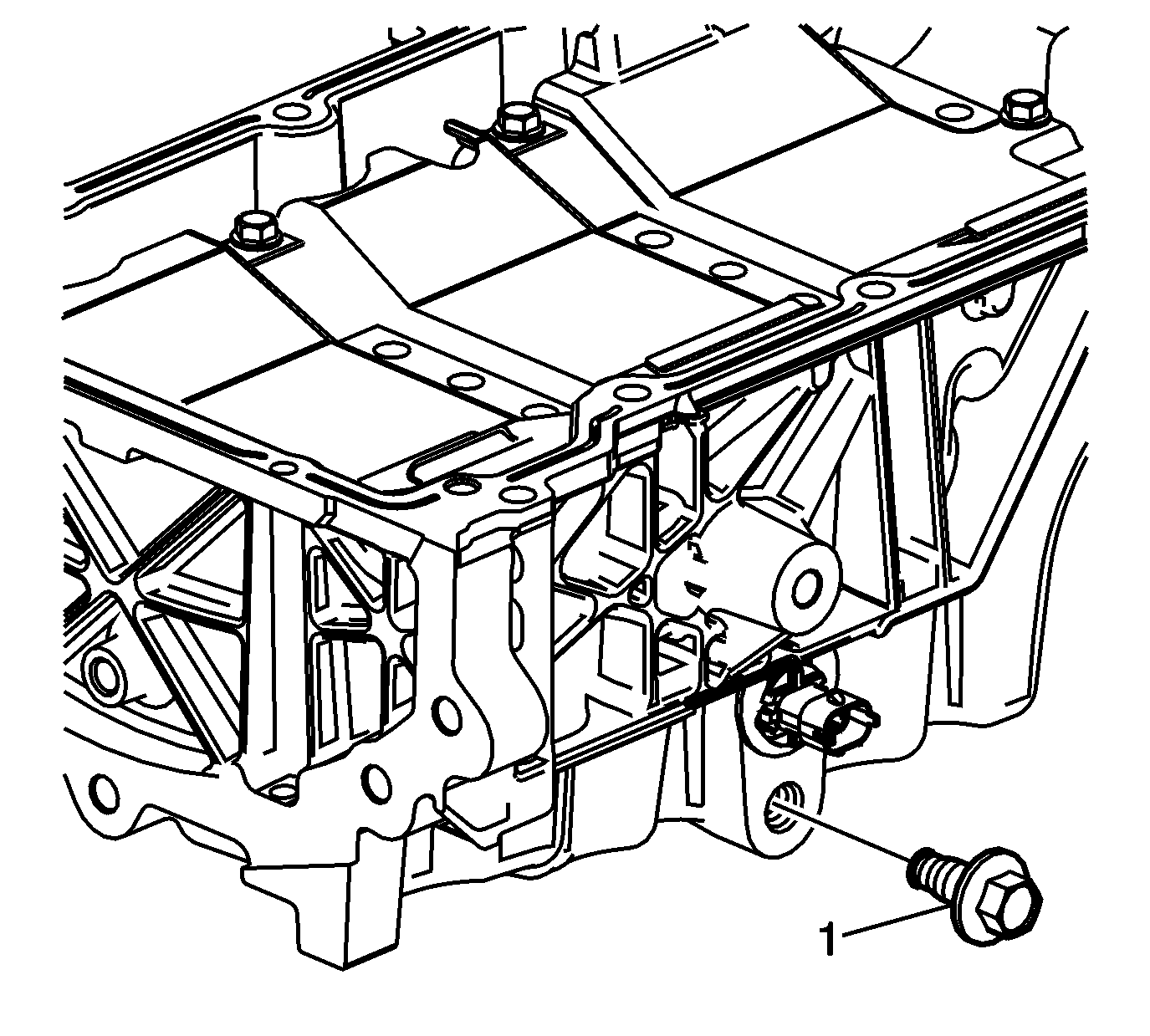

    Fig 1: Engine Oil Pan Drain Plug
    GM2736511Courtesy of GENERAL MOTORS COMPANY
  1. Remove the oil pan drain plug (1)

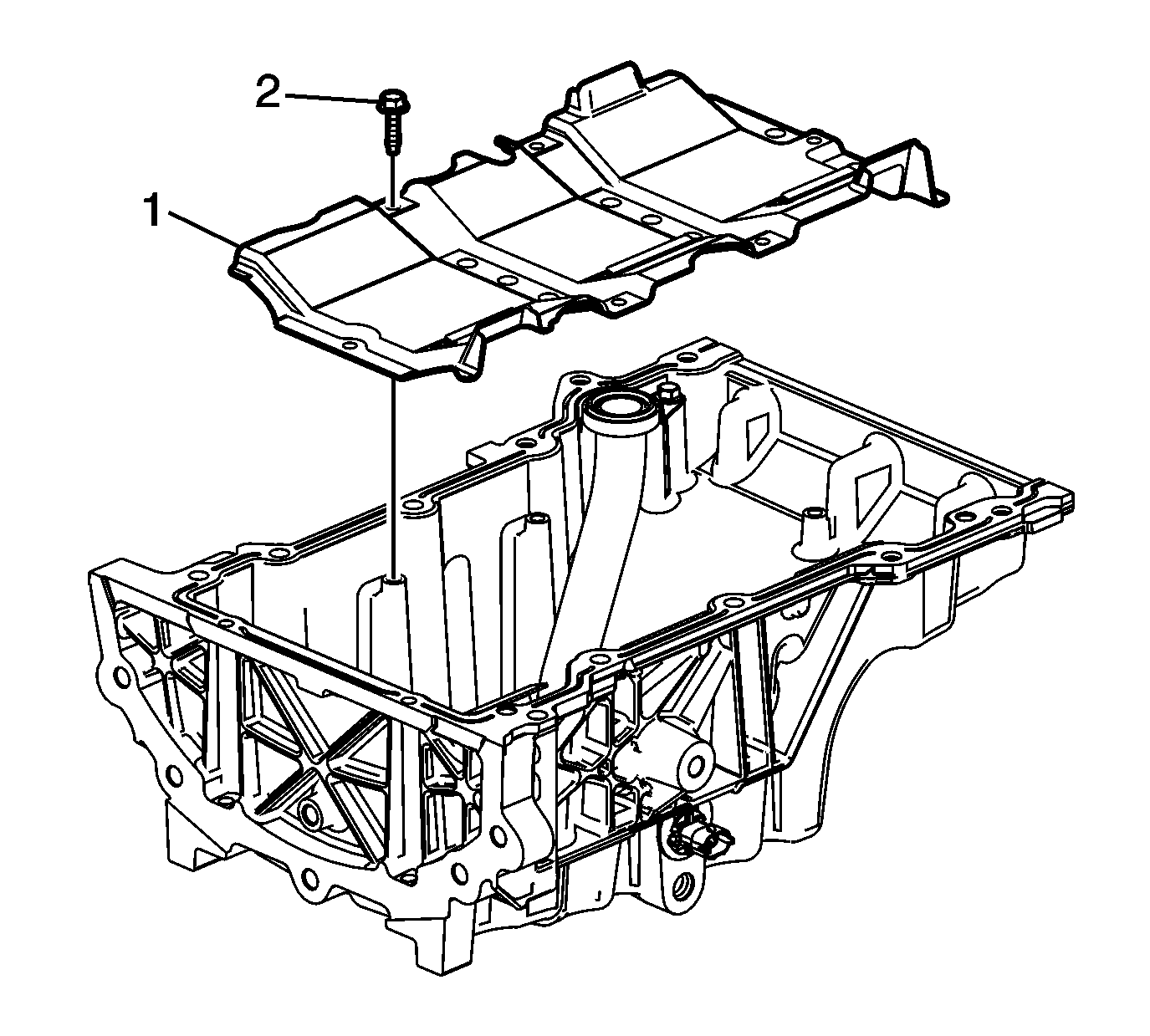

    2. Fig 2: Engine Oil Pan Scraper & Bolts
    GM2736506Courtesy of GENERAL MOTORS COMPANY
  2. Remove the oil pan scraper (1).
  3. Remove the oil pan scraper bolts (2).

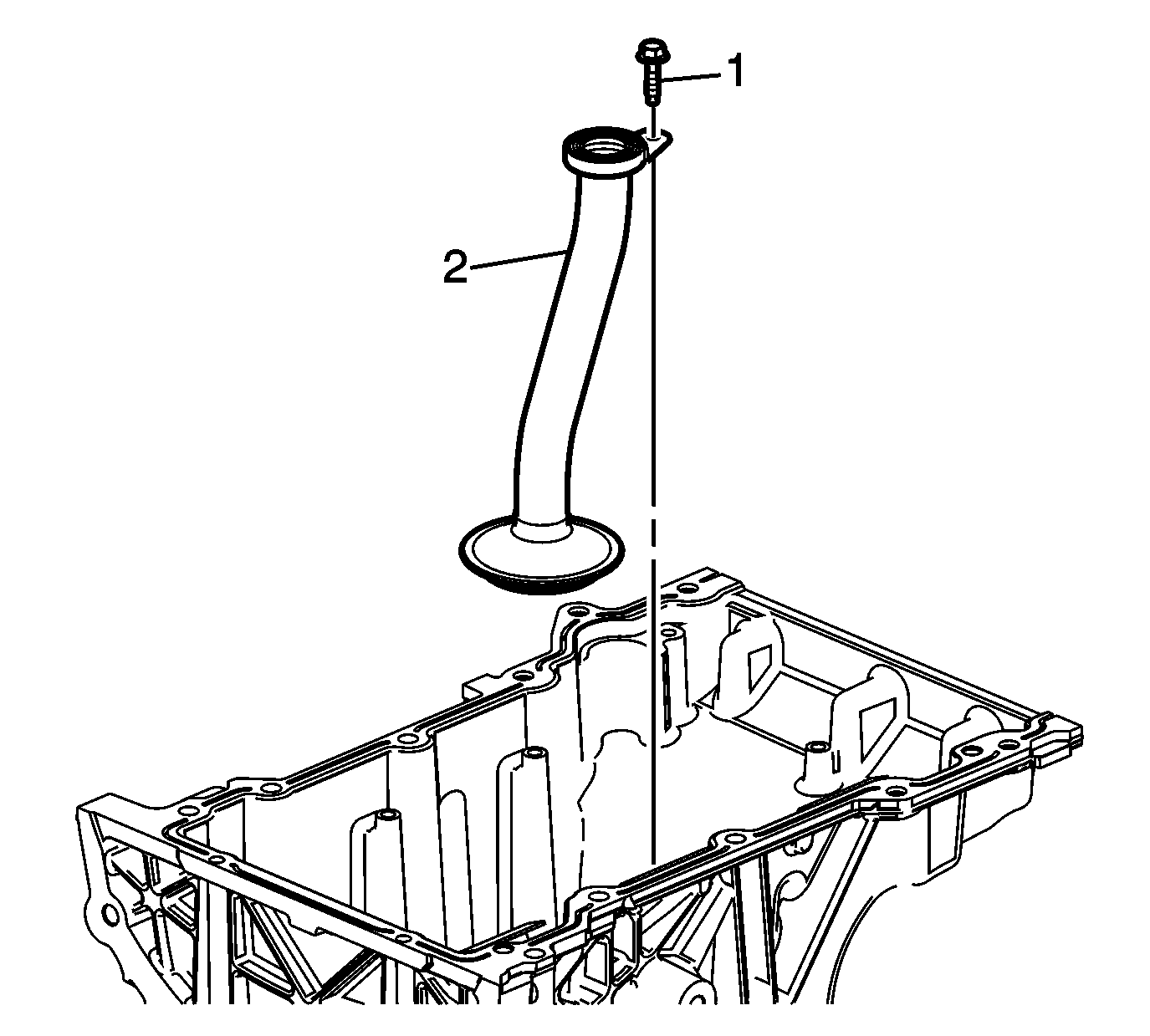

    4. Fig 3: Oil Suction Pipe & Bolts
    GM2736509Courtesy of GENERAL MOTORS COMPANY
  4. Remove the oil suction pipe bolts (1).
  5. Remove the oil suction pipe (2).
    6. Fig 4: Oil Suction Pipe Seal
    GM2736510Courtesy of GENERAL MOTORS COMPANY
  6. Remove and discard the oil suction pipe seal (1).
    7. Fig 5: Engine Oil Level Switch & Components
    GM2736508Courtesy of GENERAL MOTORS COMPANY
  7. Remove the engine oil level switch clip (4).
  8. Remove the engine oil level switch bolts (1).
  9. Remove the engine oil level switch (2).
  10. Remove and discard the engine oil level switch seal (3).
